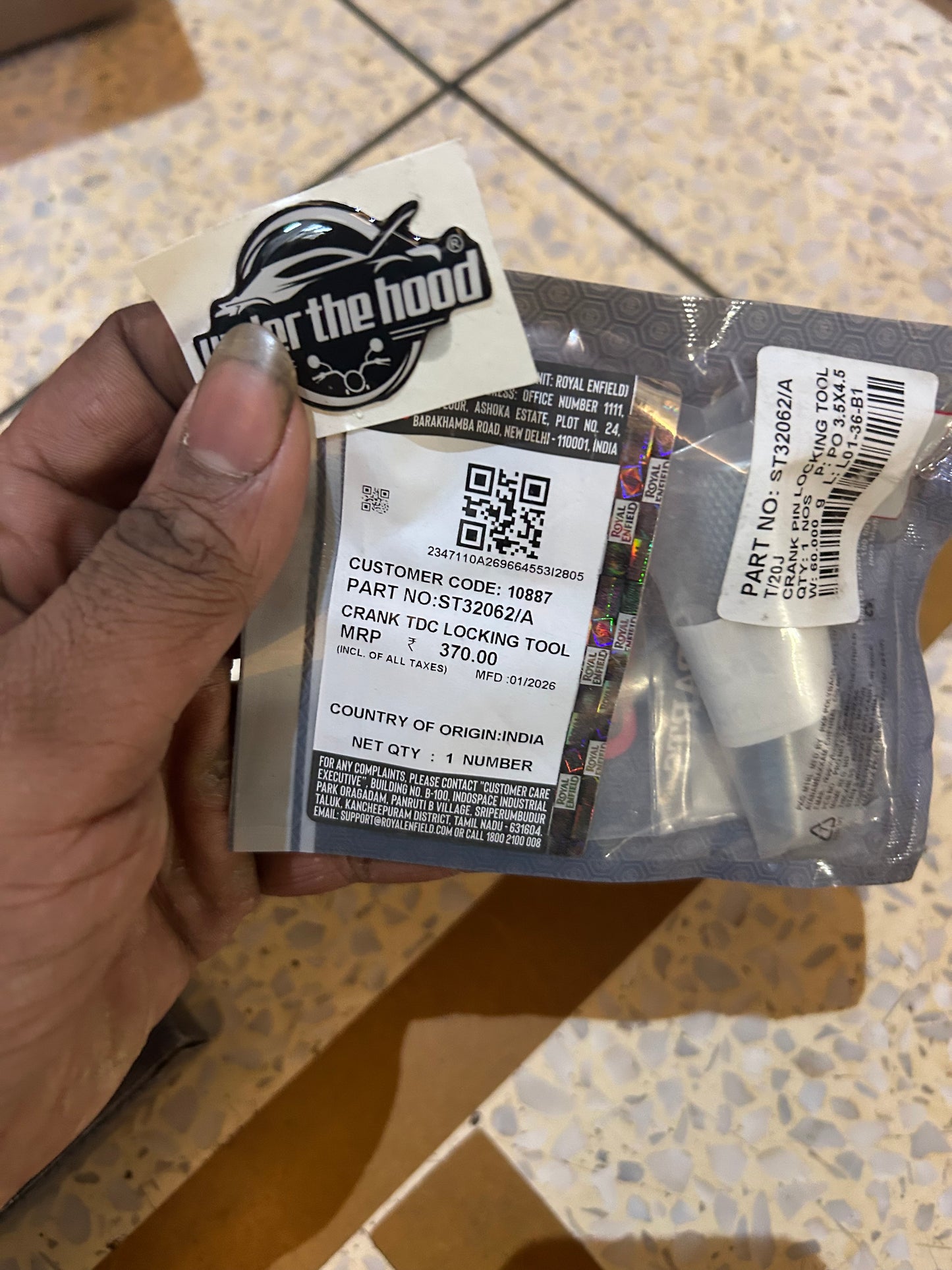

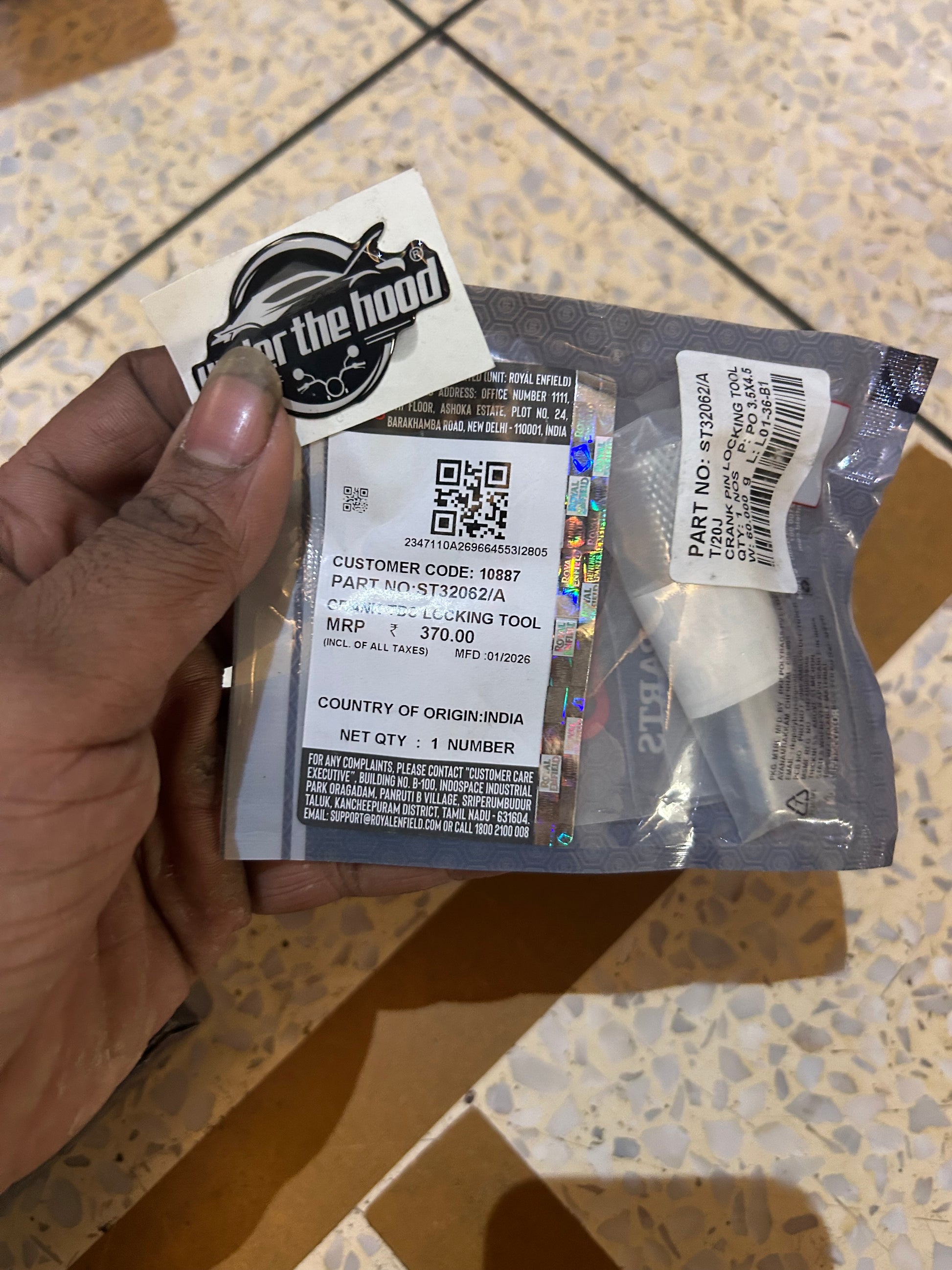

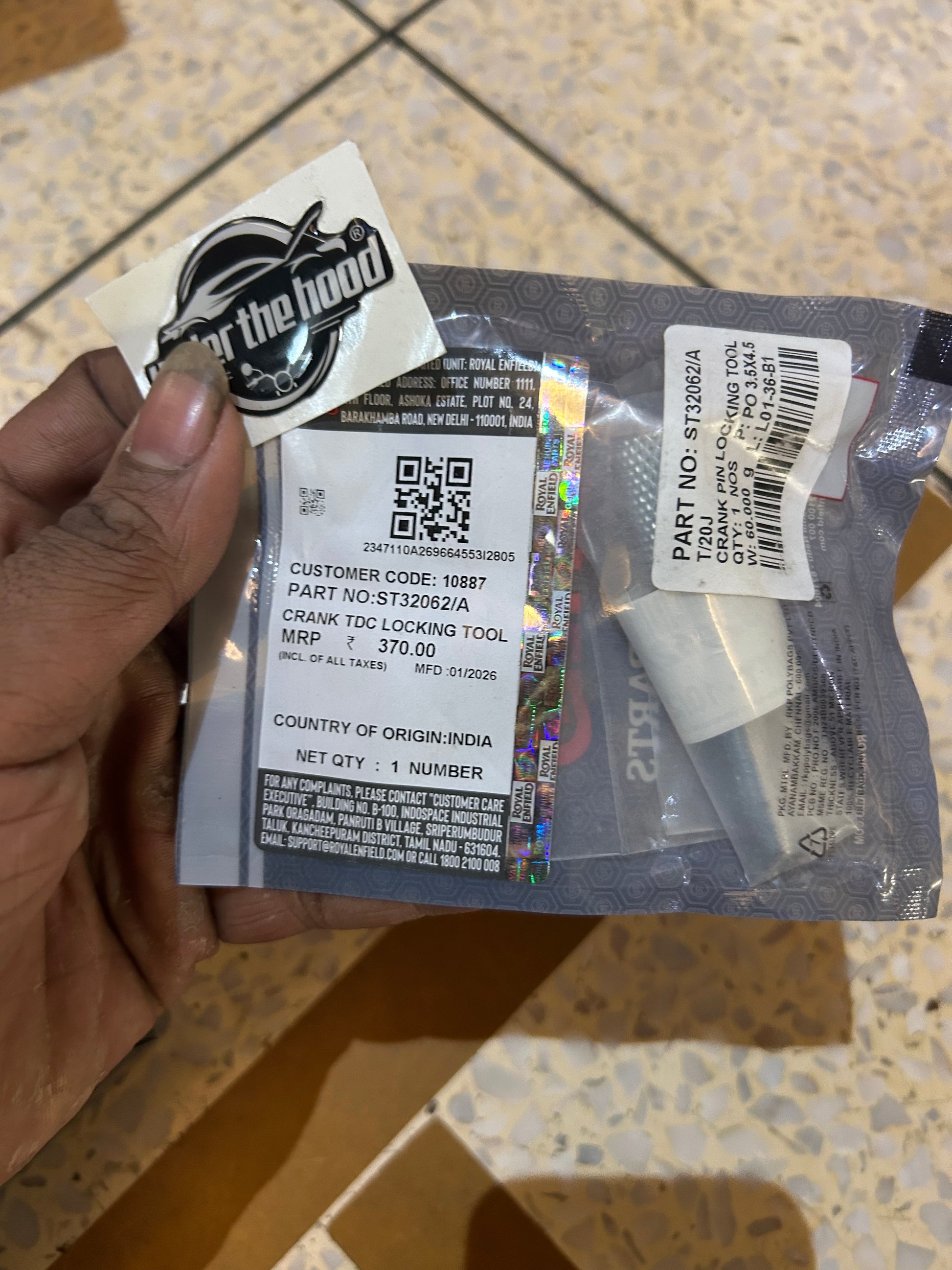

Crankshaft TDC Locking Tool (Engine Timing Pin) for Royal Enfield Himalayan 450 – ST32062/A (OEM Special Tool)

ST32062/A is the Royal Enfield special tool used to lock the crankshaft at Top Dead Center (TDC) during critical engine service procedures—most commonly cam timing work and valve-clearance adjustment on the Himalayan 450. The service manual explicitly lists ST32062/A as “Crankshaft TDC locking tool.”

This is not a cosmetic accessory; it is a workshop-grade alignment tool that helps prevent wrong timing, chain slip, and rework during top-end jobs. Correct TDC locking is especially important on modern DOHC engines where accurate cam indexing and verification steps depend on a fixed crank position. Multiple Royal Enfield parts dealers list ST32062/A as the Crank TDC Locking Tool.

Also searched as: TDC pin, crank locking tool, timing pin, engine timing tool, valve adjustment tool, cam timing tool, Himalayan 450 TDC lock.

Before you buy: this is a service tool—confirm your bike is Himalayan 450 and you specifically need ST32062/A (match part number; do not order by “looks similar”).

Key Features

• Genuine Royal Enfield OEM special tool: ST32062/A

• Official purpose: Crankshaft TDC locking tool (service manual reference)

• Used during cam timing procedure / timing verification workflows

• Enables repeatable TDC positioning to reduce timing errors and rework

• Correct tool fit prevents “forced” locking methods that can damage threads/cases

• Ideal for workshops and DIY owners doing valve clearance + top-end service

• Dealer-listed as Crank TDC Locking Tool ST32062/A

• Return-prevention: tool fitment depends on engine platform—buy by part number only

Compatibility Table

Explicit exclusions (return-prevention): Not a riding accessory; not for “universal” use. Buy only if your service procedure calls ST32062/A.

Variants

No variants.

FAQs

Q1 (Fitment): How do I confirm ST32062/A is the correct tool for my bike?
Confirm your model is Himalayan 450 and cross-check that your service procedure/manual lists ST32062/A as the crankshaft TDC locking tool.

Q2 (Fitment): Will this work on Guerrilla 450 since it shares the 450 platform?
Yes

Q3 (Comparison): Can I substitute a bolt/pin instead of using the OEM tool?
Many riders attempt DIY substitutes, but the correct tool reduces risk of thread damage, improper engagement, and inaccurate locking—especially during cam timing steps where precision matters.

Q4 (Installation): How is this tool used (high level)?
Typically inserted into the designated crankcase locking port to locate and lock crank at TDC while timing verification/cam alignment is performed. Follow the Himalayan 450 service manual steps for your job.

Q5 (Symptoms): When do I actually need a crank TDC locking tool?
When doing cam timing, valve clearance work, top-end rebuild, or timing verification where crank position must not move during alignment and torque steps.

Q6 (Returns-prevention): What should I send you before ordering to avoid mismatch?
Send (1) your bike model + year, (2) VIN last 6 digits, and (3) screenshot/photo of the manual step or parts list showing ST32062/A.
