Hero Xtreme 125R / Xtreme 125 XTEC2 Gear Change Linkage Arm | 24711ACL000S

Hero Xtreme 125R / Xtreme 125 XTEC2 Gear Change Linkage Arm – 24711ACL000S

Replace a bent, worn, loose or accident-damaged gear-shift linkage component with the Hero Genuine Arm Gear Change 24711ACL000S.

This is the small gear-change linkage arm used between the transmission selector mechanism and the external gear-change tie rod. It forms part of the motorcycle’s foot-operated gear-shift linkage but is not the complete gear pedal and does not include the tie rod.

This product is commonly searched as Xtreme 125R gear-change arm, gear-shift arm, selector arm, linkage arm, gear lever arm and 24711ACL000S.

What This Product Is

• Hero Genuine gear-change linkage arm
• Official description: ARM GEAR CHANGE
• Retail part number: 24711ACL000S
• Catalogue reference: 24711-ACL-000
• Assembly: gear-change pedal and linkage system
• Quantity supplied: one arm
• Model-specific mechanical component

Key Features

• Genuine Hero MotoCorp replacement part
• Designed for the specified Xtreme 125 gear-shift linkage
• Connects with the separate gear-change tie rod
• Suitable for replacing a bent, loose, worn or damaged linkage arm
• Helps restore correct gear-shift linkage movement when correctly fitted
• Useful after accident damage, linkage wear or gear-pedal repair
• Correct OEM replacement where 24711ACL000S is specified

Confirmed Compatibility

• Hero Xtreme 125 / Xtreme 125R – February 2024 application
• Hero Xtreme 125R OBD-II – April 2025, where 24711ACL000S is confirmed
• Hero Xtreme 125 XTEC2 – October 2025 catalogue

Hero’s retail listing identifies this product under the Xtreme 125 family. Exact fitment should still be confirmed using the vehicle catalogue or the old part number.

Important Part Identification

Fitment Note / Return Prevention Note

This product is the gear-change linkage arm only. It must not be confused with the complete foot-operated pedal, the tie rod, the pedal rubber or the complete gear-change assembly.

Before ordering, confirm:

• Exact part number 24711ACL000S
• Motorcycle model and manufacturing generation
• Existing arm shape and length
• Selector-shaft spline or mounting arrangement
• Tie-rod connection position
• Required bolt, washer, split pin and other hardware

Do not order only by comparing the visible shape. Similar gear-change arms may differ in offset, length, spline pattern, linkage-hole position or mounting hardware.

Correctly supplied components are not eligible for return or exchange due to incorrect model, variant, year or part-number selection.

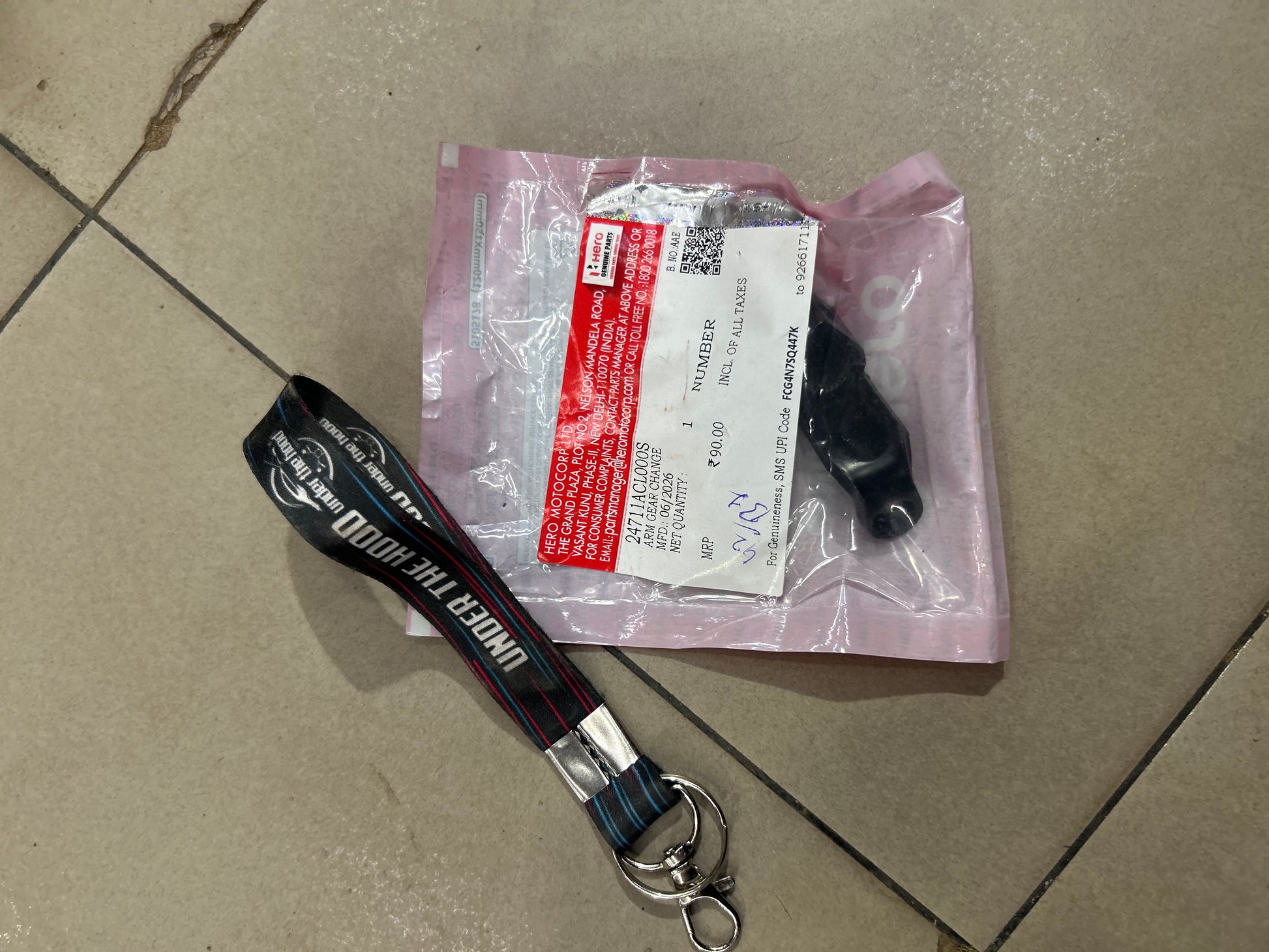

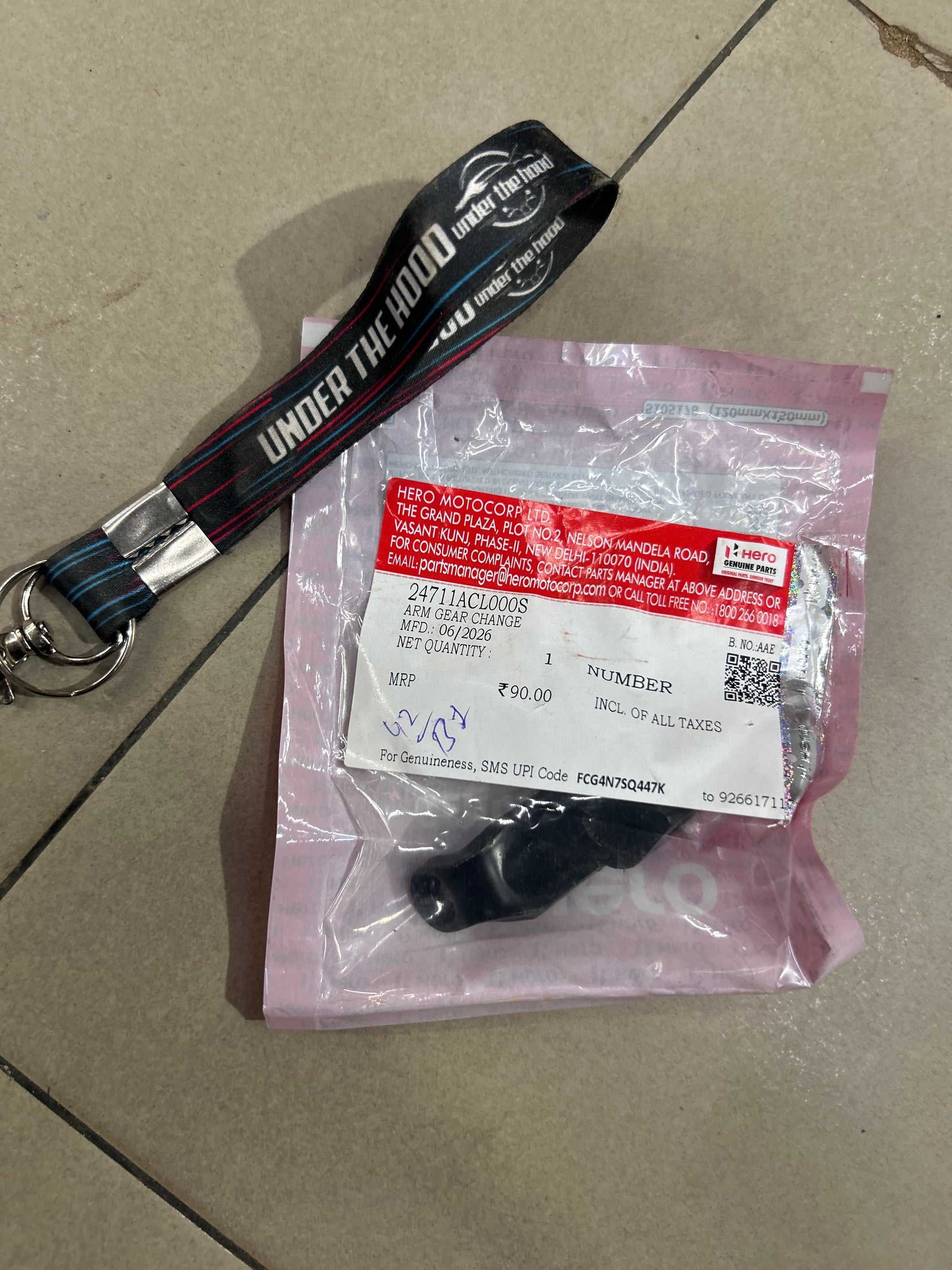

What You Will Receive

• 1 x Hero Genuine gear-change arm
• Part number: 24711ACL000S

The following are not included unless present inside Hero’s sealed package:

• Gear-change pedal
• Gear-change tie rod
• Pedal rubber
• Selector shaft
• Split pins
• Washers
• Mounting bolt
• Additional linkage hardware

Technical Details

Installation Note

Installation should be performed by a competent motorcycle technician.

The technician should:

• Inspect the selector-shaft spline and mating surface
• Inspect the gear-change pedal and tie rod for bending or play
• Fit the arm in the correct orientation
• Set the pedal position and linkage length correctly
• Install all required washers, pins and fasteners
• Tighten the mounting fastener securely
• Confirm free linkage movement without binding
• Test all gears while the motorcycle is stationary and during a controlled road test

Do not ride if the gear pedal is loose, the linkage binds, the arm slips on the selector shaft or gears cannot be selected reliably.

Buyer-Focused FAQs

Q1. What is Hero part number 24711ACL000S?
It is the Hero Genuine external gear-change linkage arm for the confirmed Xtreme 125 family.

Q2. Is this the complete gear lever or pedal?
No. The complete foot-operated gear-change pedal is a separate component.

Q3. Does this include the tie rod?
No. The gear-change tie rod uses a separate part number: 24720-ACL-000.

Q4. What is the catalogue reference?
The catalogue reference is 24711-ACL-000. The packaged retail SKU includes the final “S.”

Q5. Does it fit the Hero Xtreme 125R?
Yes, it is assigned to the Xtreme 125/Xtreme 125R family. Confirm the exact model generation and old part number before ordering.

Q6. Does it fit the Xtreme 125 XTEC2?
Yes. The October 2025 Xtreme 125 XTEC2 catalogue lists 24711-ACL-000 as ARM GEAR CHANGE.

Q7. Are the mounting bolt and split pins included?
Do not assume they are included. The catalogue lists linkage hardware separately.

Q8. What symptoms may indicate a damaged gear-change arm?
Possible symptoms include excessive linkage play, a misaligned pedal, difficulty selecting gears, an arm that slips on its mounting point or visible bending after an impact.

Q9. Can only this arm be replaced?
Yes, when the pedal, tie rod, selector shaft and related hardware are serviceable. The complete linkage should be inspected before replacement.

Q10. Is professional installation recommended?
Yes. Incorrect orientation, tightening or linkage adjustment can cause poor or unreliable gear selection.
