UNDER THE HOOD

1120070/A – Bottom Raiser, Handle Bar for Thunderbird 350X (BS4), Thunderbird 500X (BS4) & Thunderbird 350/500 UCE (NTB) – Genuine Royal Enfield

1120070/A – Bottom Raiser, Handle Bar for Thunderbird 350X (BS4), Thunderbird 500X (BS4) & Thunderbird 350/500 UCE (NTB) – Genuine Royal Enfield

Rs. 434.00
Rs. 443.00 Rs. 434.00
Sale Sold out
Shipping calculated at checkout.

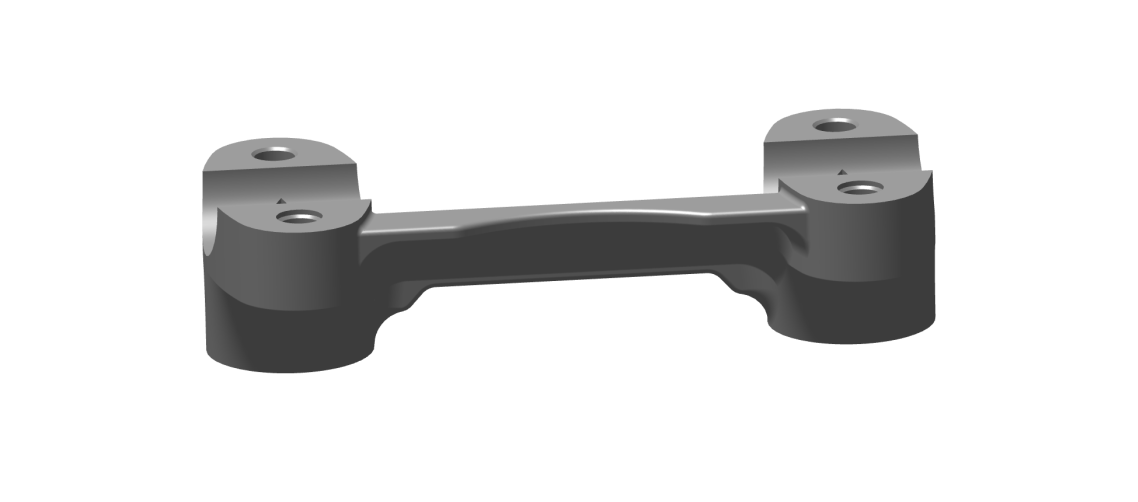

This is the genuine Royal Enfield 1120070/A – BOTTOM RAISER – HANDLE BAR used on the Thunderbird X family and listed in the TBX parts sheet right under the steering/handlebar section. It’s the lower half of the handlebar clamp/riser: it bolts to the top yoke and works together with 1120057/A (Top Raiser – Handle Bar) to hold the 22 mm handlebar. Because it’s OEM, the bolt spacing, riser height, casting angle and locating face match your Thunderbird triple clamp exactly, so the bar sits straight and doesn’t twist when you torque the top caps. This is the part to buy when the lower riser is cracked after a fall, rounded from over-torque, or you’re converting to TBX black parts.

Multiple RE dealers (India/UK/EU) list 1120070/A specifically for Thunderbird 350X / 500X and also for the broader Thunderbird (NTB) UCE frame, so we include only those confirmed models below to cut down returns. Pair it with the matching top raiser 1120057/A and the OE M8/M10 riser bolts for a factory-tight cockpit.

Key Features

  • Genuine OEM lower handlebar riser – 1120070/A.

  • Designed for Thunderbird X / NTB top yoke → exact bolt spacing & height.

  • Cast and finished to match OE TBX hardware (black).

  • Works with 1120057/A (Top Raiser – Handle Bar) as a set.

  • Restores bar alignment after a tip-over.

  • Supplied per piece in RE-labelled packaging.

Compatibility Table

Model Platform BS / Years Notes
Thunderbird 350X UCE 346 cc BS4 / ABS (≈2018–2020) Listed in TBX exclusive parts list: “1120070 Bottom Raiser”.
Thunderbird 500X UCE 499 cc BS4 / ABS Same steering/handlebar group as 350X.
Thunderbird 350 / 500 (NTB) UCE BS3–BS4 Dealer sites sell 1120070/A as “Bottom Raiser – Handlebar – fits Royal Enfield Thunderbird”.



Variants / Related

  • 1120057/A – Top Raiser – Handle Bar (your earlier part; use together).

FAQs

Q1. Is this the top clamp?
No, this is the bottom riser. The top clamp is 1120057/A.

Q2. Can I use one from Classic 350?
Not recommended — Classic yoke/riser stack is different. Use the TB/TBX part.

Q3. Do I get bolts with it?
Usually riser only. Reuse OE bolts or order the ones from the same fiche line.

Q4. My bar is 22 mm – will it fit?
Yes, TB/TBX uses 22 mm bars; this riser is sized for that.
