Royal Enfield Black Trapezium Engine Guard – KXA00007

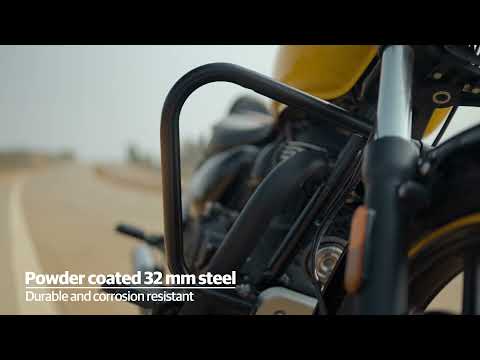

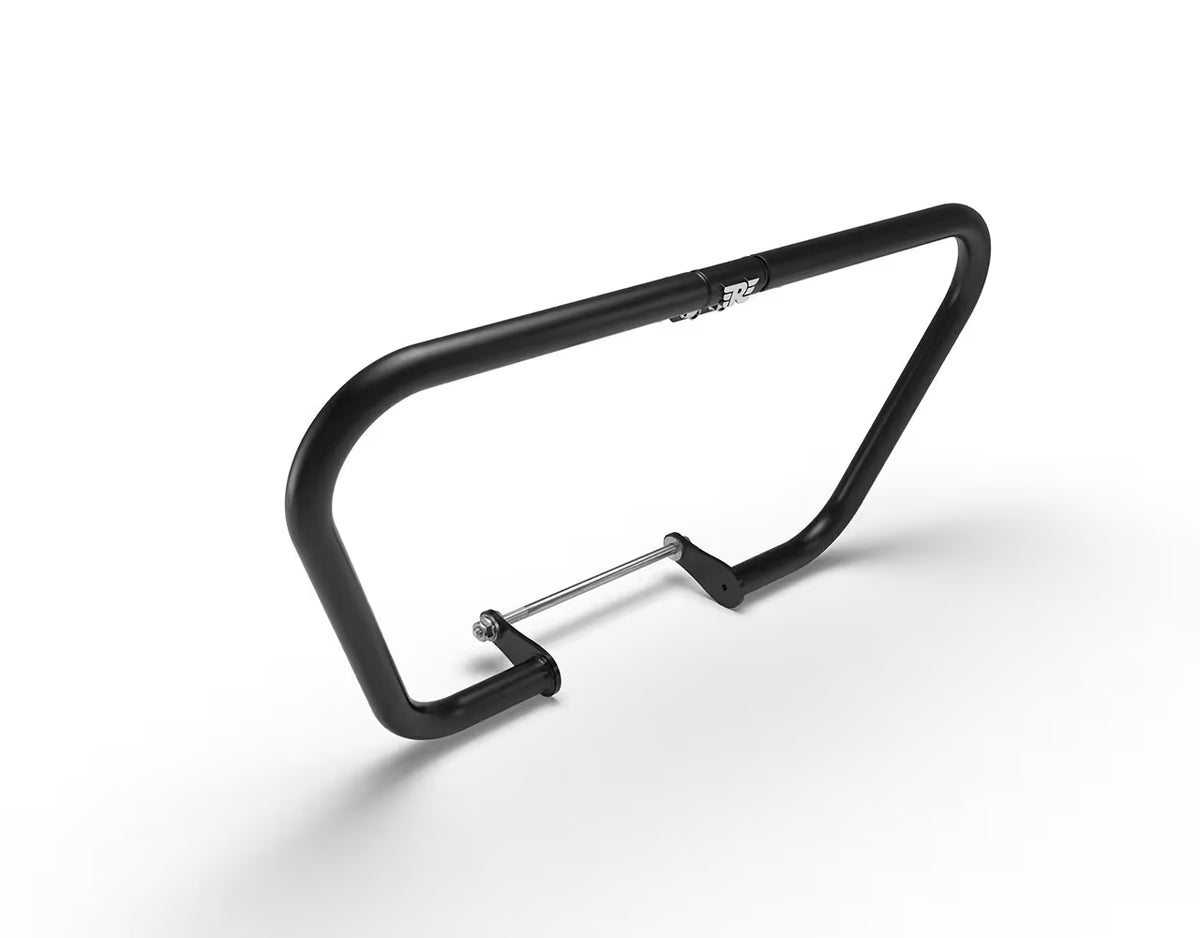

Add a strong, angular layer of genuine Royal Enfield protection to your compatible 350 motorcycle with the KXA00007 Black Trapezium Engine Guard. Its distinctive Trapezium profile is formed from 32 mm steel tubing and finished with a dual black powder coating for corrosion resistance.

The complete kit includes separate left-hand and right-hand guard assemblies, a reinforced top mounting structure and the required genuine fixing hardware. Contemporary Royal Enfield branding completes the factory-accessory appearance.

Confirmed fitment: Meteor 350, current Classic 350, All-New Bullet 350 and Goan Classic 350. This product is not listed for Hunter 350, older UCE Classic/Bullet models, Himalayan, Interceptor/Continental GT or Royal Enfield 650 models.

What This Product Is

• Genuine Royal Enfield Black Trapezium Engine Guard kit
• Exact manufacturer part number: KXA00007
• Complete left-hand and right-hand protective guard assembly
• Distinctive angular Trapezium shape with smooth connecting lines
• Constructed from 32 mm steel tubing
• Dual black powder-coated finish for corrosion resistance
• Contemporary Royal Enfield branding
• Supplied with the top mount, brace bar and model-appropriate fixing hardware

Key Features

• Helps create a protective barrier around key engine areas during minor low-speed contact or a stationary fall
• 32 mm steel tubing provides a substantial protective structure
• Dual powder coating helps protect the black finish from corrosion
• Angular Trapezium outline gives compatible motorcycles a more defined, muscular appearance
• Precisely engineered genuine-accessory mounting arrangement
• Separate left and right sections connect through the supplied top mount and brace
• Royal Enfield branding provides a genuine factory-accessory finish
• Compatible with a genuine sump guard when installed with the fitting-instruction washer arrangement
• Official fitting time is approximately 20 minutes for a trained installer with the correct tools
• Manufacturer-listed three-year warranty, subject to applicable Royal Enfield terms

Confirmed Compatibility

Royal Enfield's current India product page lists all four applications. The original shared engine-guard instruction documents BSVI Meteor and Classic motorcycles within the stated frame/VIN family; the newer Bullet 350 and Goan Classic 350 applications should be fitted using the current motorcycle-specific dealer information.

Not Compatible / Do Not Assume Fitment

• Hunter 350 / HNTR 350
• Classic 350 UCE, Classic 500 UCE or Electra
• Older Bullet 350/500 UCE, Standard or Electra variants
• Thunderbird or Thunderbird X
• Himalayan 411, Himalayan 450, Scram 411, Scram 440 or Guerrilla 450
• Interceptor 650, Continental GT 650, Super Meteor 650, Shotgun 650, Bear 650, Classic 650 or Bullet 650
• Any motorcycle with non-standard, welded, modified or accident-damaged frame/cradle mounting points

Do not order based only on engine capacity or visual similarity. Engine-guard fitment depends on the exact frame, lower cradle, mounting-hole position, exhaust-header clearance and clutch-cable route.

What You Will Receive

Royal Enfield documents two valid mounting-hardware revisions. Style A uses four M6 × 16 and two M6 × 12 bolts. Style B uses two M6 × 20, two M6 × 16 and two M6 × 12 bolts. The supplied kit may contain either approved arrangement; install only the layout specified for the supplied top mount and brace.

Not Included

• Motorcycle, engine or frame components
• Genuine accessory sump guard
• Fog/auxiliary lights or mounting clamps
• Tools, replacement frame hardware or workshop consumables
• Installation labour
• KXA00008 silver Trapezium Engine Guard

Choose the Correct Engine Guard

Colour and design are buyer-selected differences, not fitment defects. Check the part number before opening: KXA00007 is specifically the black Trapezium version.

Technical Details

Protection and Use Note

An engine guard may help keep some motorcycle parts away from direct ground contact during certain low-speed incidents. It cannot prevent every form of damage, and the result depends on impact speed, direction, surface, motorcycle load and contact point.

• It does not guarantee protection for the engine, frame, tank, exhaust, handlebar, controls or body panels.
• It is not a stunt cage, towing point, lifting point, footrest or tie-down anchor.
• It does not replace a sump guard for impacts from directly beneath the engine.
• Do not drill, cut, heat, bend or weld the guard to mount auxiliary products.
• After any fall, inspect the guard, frame mounts, fasteners, cable route and exhaust clearance before riding.

Installation Note

Royal Enfield lists an approximate fitting time of 20 minutes. Installation requires removal of an original cradle fixing, controlled torque application and motorcycle-specific clutch-cable routing. Installation by an authorised Royal Enfield workshop or qualified motorcycle technician is strongly recommended.

1. Support the motorcycle securely on level ground before starting.
2. Confirm KXA00007, the motorcycle model, VIN and kit revision before removing original hardware.
3. Assemble the brace bar to the top mount with the specified M6 bolts; tighten to 8 Nm.
4. Attach the left and right Trapezium assemblies to the top mount using the correct M6 bolts and washers; tighten to 8 Nm.
5. Remove the original M10 bolt and nut from the motorcycle cradle as directed.
6. Locate the lower guard mount first and ensure clearance from the exhaust-header pipe.
7. Install the supplied M10 × 240 bolt, washers and U-nut; apply 55 Nm to the bolt head rather than the nut.
8. If a compatible genuine sump guard is fitted, follow the special instruction that omits the two M10 washers between the cradle and engine guard.
9. Install the top mount to the chassis with the two M8 bolts and nuts; tighten to 25 Nm.
10. Route the clutch cable behind the engine guard using the exact model-specific wire-guide arrangement.
11. Check and adjust clutch-cable free play to the applicable Royal Enfield specification.
12. Verify exhaust clearance, control operation, cable movement and steering before riding.

The torque values above are taken from Royal Enfield instruction KXL00074 Issue E for the documented engine-guard family. Follow the latest instructions supplied with the kit and the current model-specific workshop information if they differ.

Black Powder-Coat Care

• Wash with mild automotive shampoo, clean water and a soft cloth.
• Remove mud, road salt, fuel, brake fluid and chemical contamination promptly.
• Avoid abrasive pads, metal polish, harsh solvents and pressure-washer jets at the coating edges.
• Do not conceal coating damage with an unverified paint before inspecting the underlying tube.
• Check all mounting points and fasteners periodically and after rough-road riding.
• Do not ride if the guard is loose, bent, cracked or touching the exhaust, cable or motorcycle body.
• After impact, have a technician inspect the guard and frame/cradle mounting points.

Fitment Note / Return Prevention

Before opening or fitting, confirm the motorcycle is a Meteor 350, current J-series Classic 350, All-New J-series Bullet 350 or Goan Classic 350. Share the full VIN if the motorcycle generation is uncertain.

Engine guards are installation-sensitive products. Parts showing bolt marks, coating scratches, bent brackets, cross-threading, missing hardware, road use, impact, modification or attempted installation on an incompatible motorcycle may not qualify for return, subject to applicable law and the current store policy.

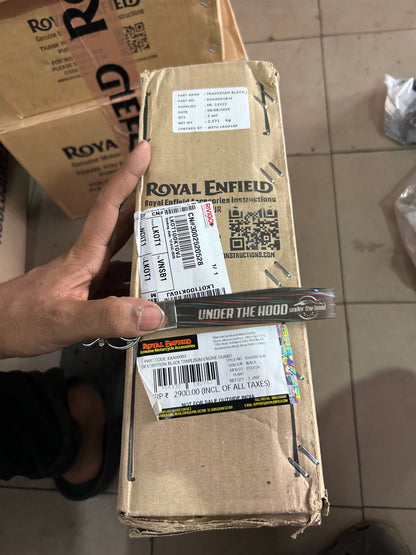

Record one continuous unboxing video showing the sealed parcel, shipping label, Royal Enfield label, both black Trapezium guard assemblies, top mount, brace bar and complete hardware pack. Report a wrong, missing or transit-damaged component within 24 hours with the video and original packaging.

Frequently Asked Questions

1. What is Royal Enfield KXA00007?

It is the genuine black Trapezium Engine Guard kit manufactured from 32 mm steel tubing with a dual powder-coated finish.

2. Which motorcycles are officially compatible?

Royal Enfield currently lists Meteor 350, Classic 350, All-New Bullet 350 and Goan Classic 350.

3. Does it fit Meteor 350?

Yes. Meteor 350 is a confirmed application. The Meteor-specific clutch-cable route must be followed.

4. Does it fit Classic 350 Reborn?

Yes. It fits the current J-series/Reborn Classic 350, not an older UCE Classic.

5. Does it fit the All-New Bullet 350?

Yes. It is listed for the current J-series Bullet 350. It is not confirmed for the older UCE Bullet.

6. Does it fit Goan Classic 350?

Yes. Goan Classic 350 is included in Royal Enfield's current compatibility list.

7. Does it fit Hunter 350?

No official KXA00007 compatibility is listed for Hunter 350. Do not order it for Hunter 350.

8. Does it fit Interceptor 650 or Continental GT 650?

No. KXA00007 is not designed for the Royal Enfield 650 Twin frame.

9. What material is used?

The current India product page specifies steel tubing with a dual powder-coated black finish.

10. What is the tube diameter?

The Trapezium guard is formed from 32 mm tubing.

11. Does the kit include both sides?

Yes. It includes one right-hand and one left-hand Trapezium guard assembly.

12. Is the mounting hardware included?

Yes. The documented kit includes the top mount, brace bar, bolts, nuts and washers required for the approved installation.

13. What is the silver version?

KXA00008 is the silver Trapezium Engine Guard. KXA00007 is the black version.

14. How is KXA00007 different from KXA00005?

KXA00007 uses the Trapezium design. KXA00005 is the black Octagon Engine Guard; both are different styling choices within the compatible engine-guard family.

15. Can it be used with a sump guard?

The official instructions include a special washer arrangement for a compatible genuine sump guard. The sump guard is not included.

16. Can fog lights be mounted on it?

No auxiliary-light mounting approval is claimed here. Do not drill or weld the guard; use only a model-approved mounting system.

17. How long does fitting take?

Royal Enfield lists approximately 20 minutes for a trained installer with the correct tools.

18. What torque values are documented?

The instruction specifies 8 Nm for M6 assembly fixings, 55 Nm for the lower M10 cradle fixing and 25 Nm for the upper M8 fixings.

19. Is there a warranty?

Royal Enfield lists a three-year warranty, subject to regional terms, correct installation and applicable claim conditions.

20. Can it be returned after fitting?

An installed, marked, scratched, damaged or incomplete engine guard may not qualify for return. Confirm the SKU, colour, design, motorcycle generation and VIN before fitting, subject to applicable law and the current store policy.
