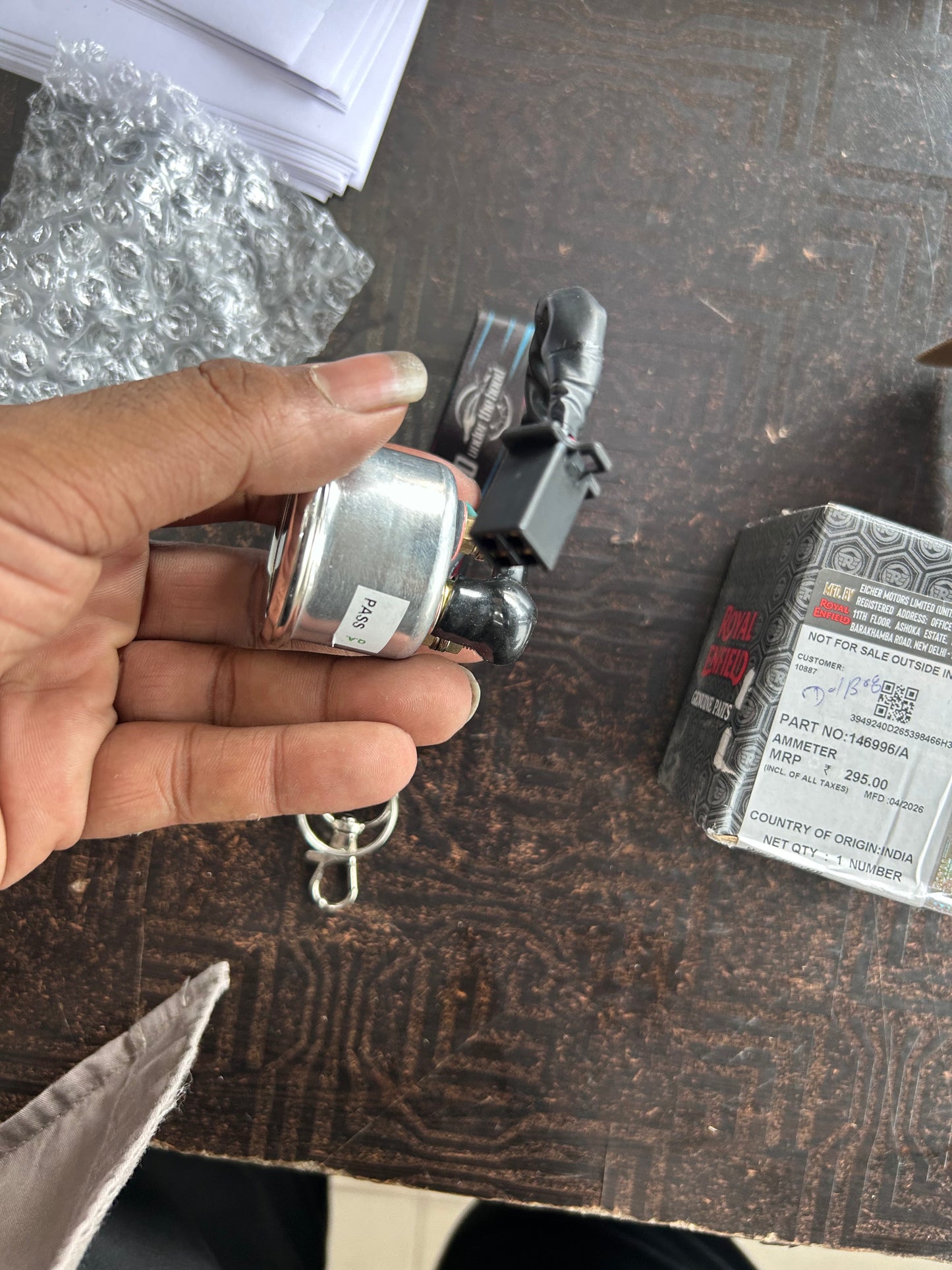

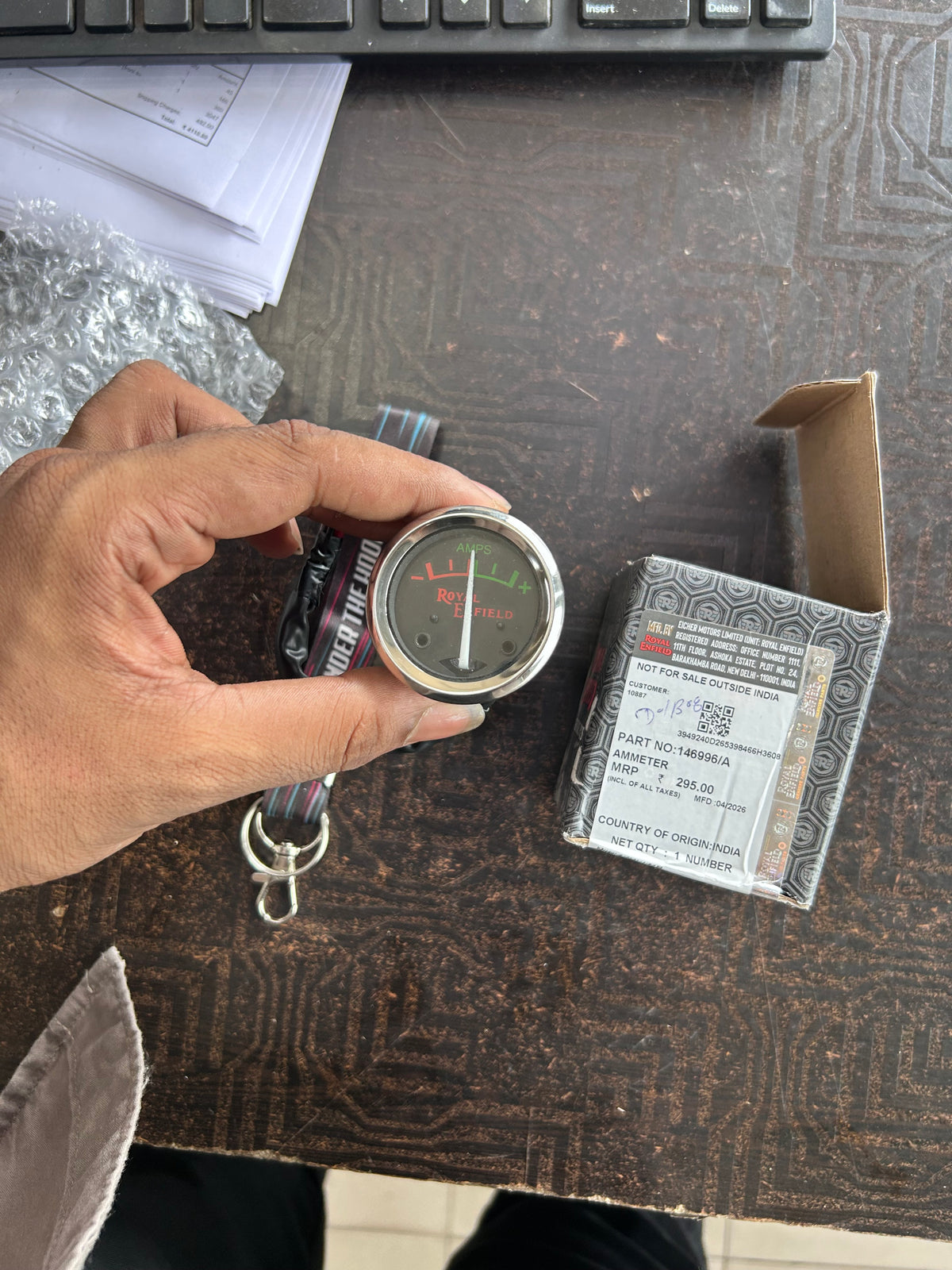

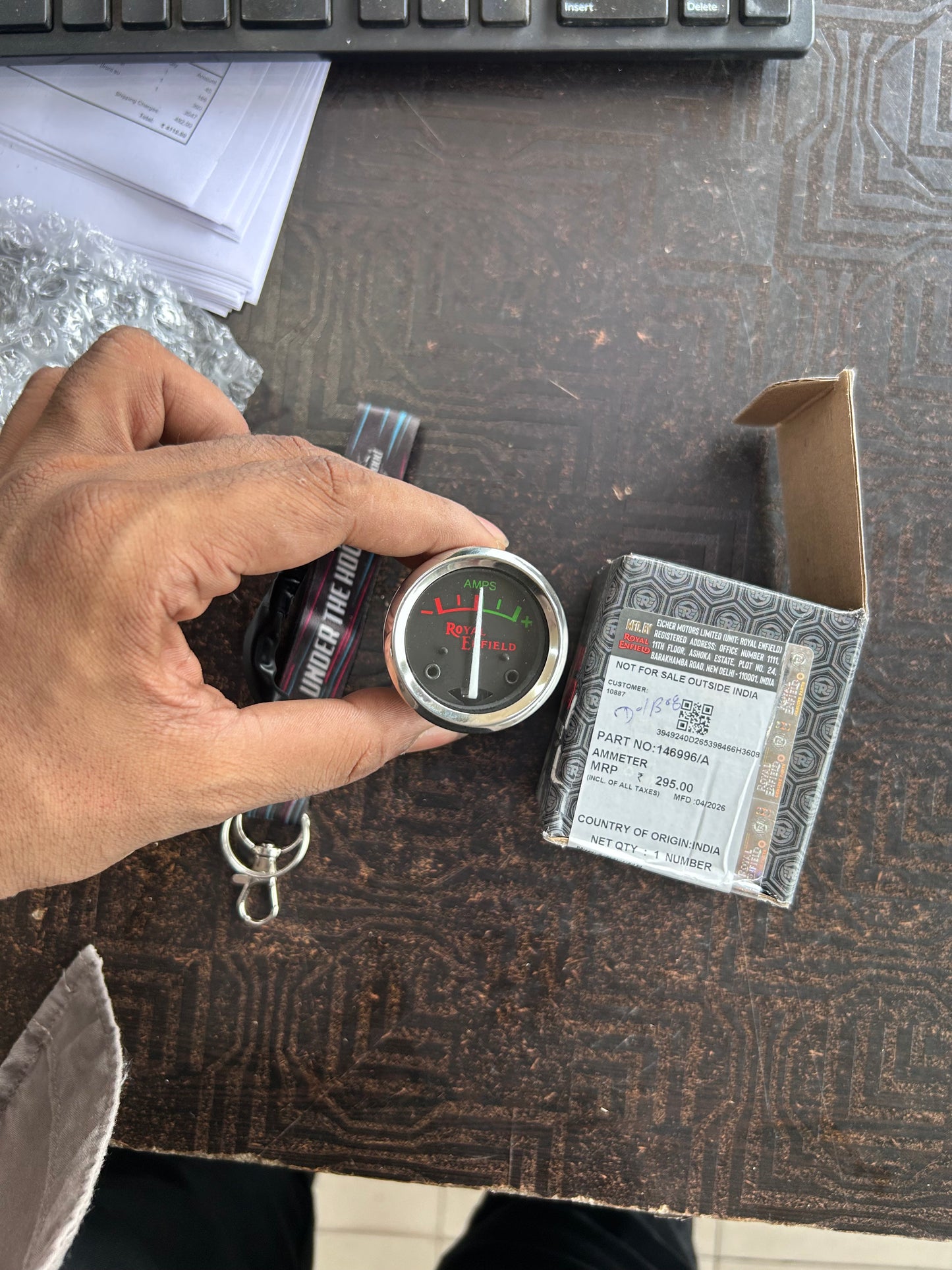

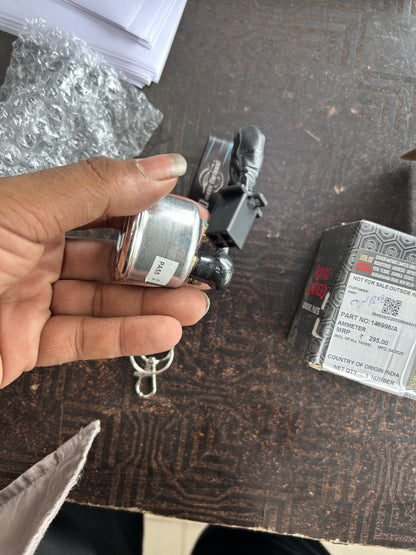

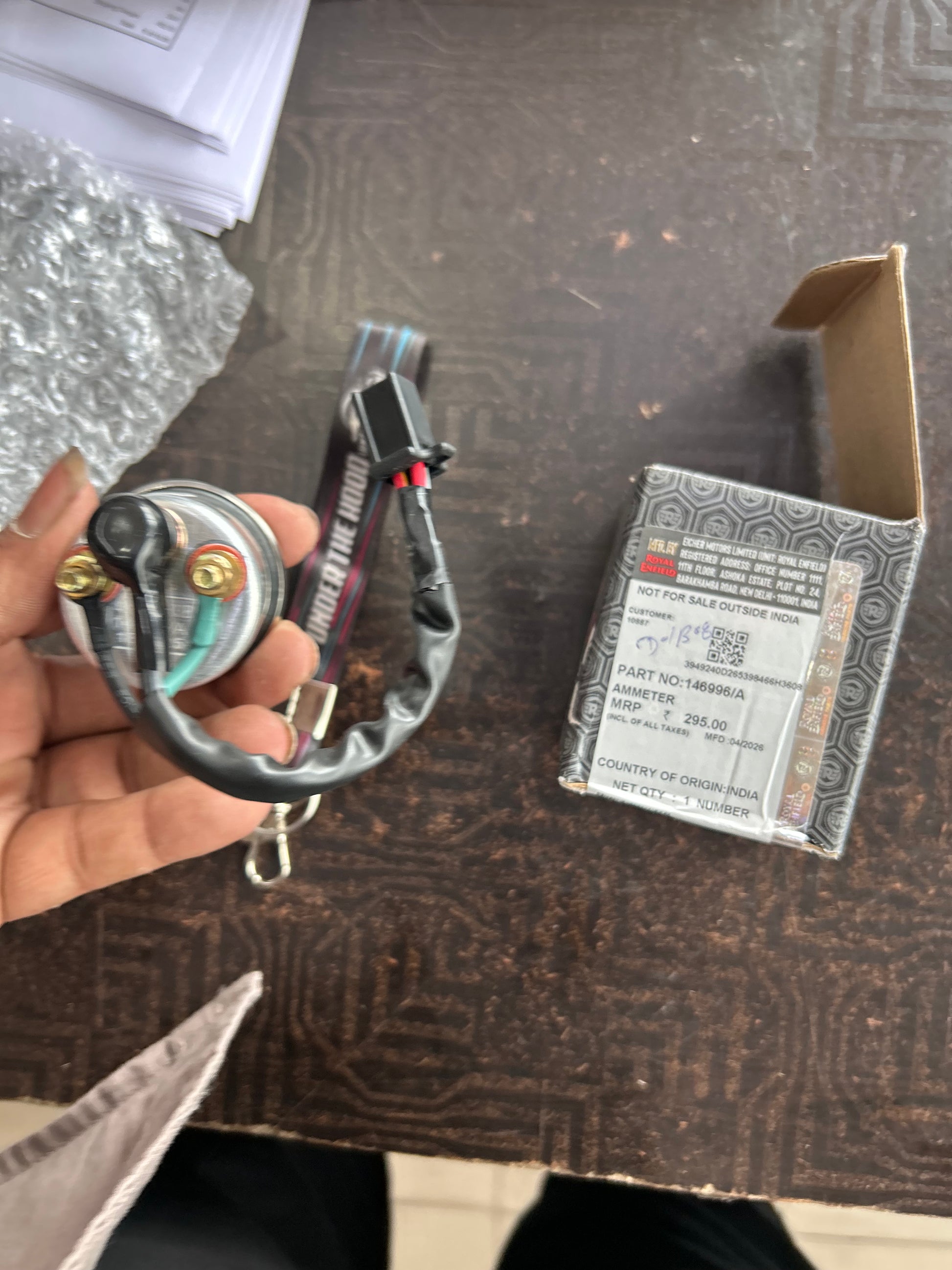

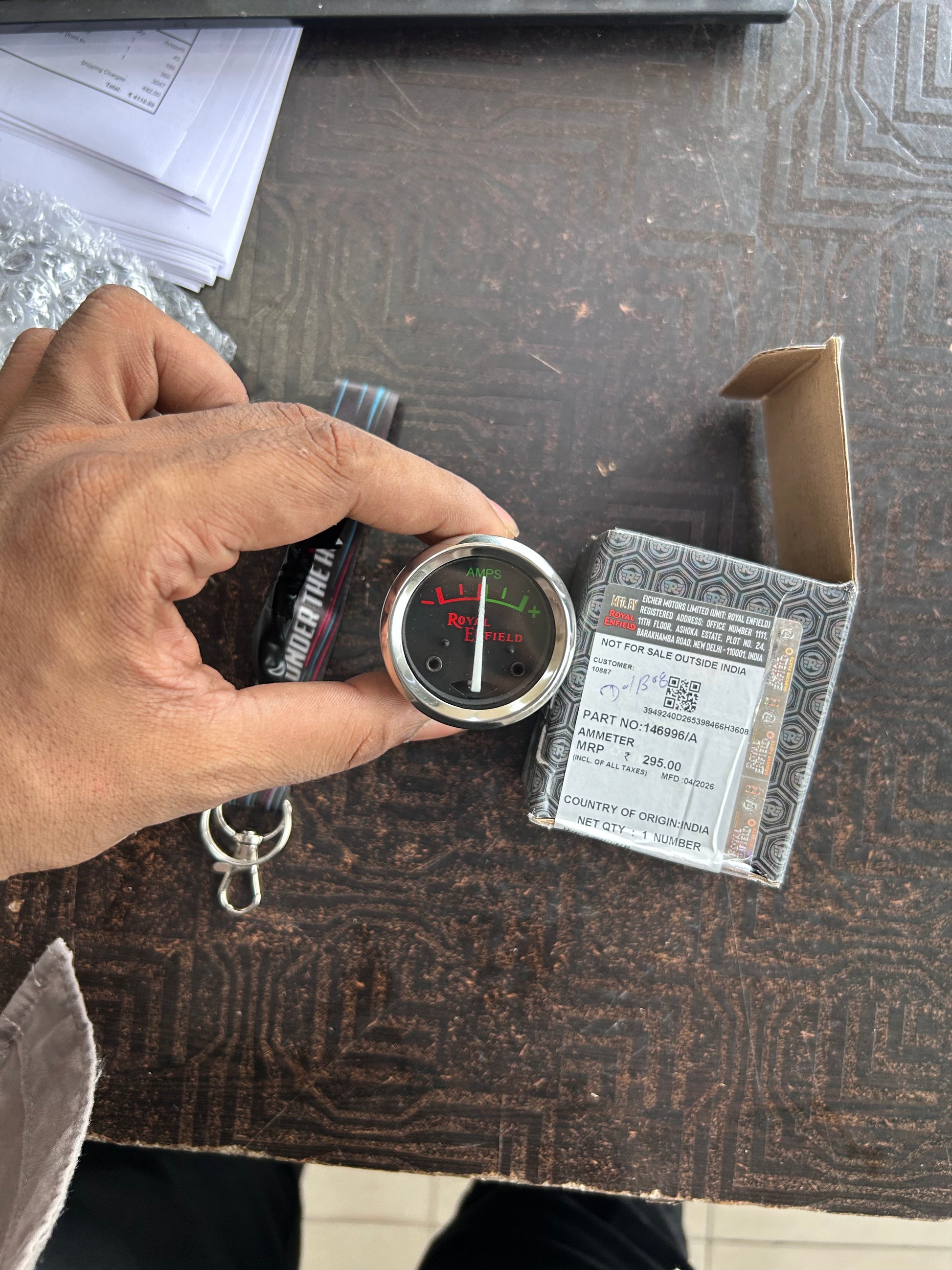

Royal Enfield Bullet Machismo Self-Start 8A Ammeter – 146996/A

Replace a failed or damaged charging-current gauge on the applicable Royal Enfield Bullet Machismo AC/DC self-start motorcycle with this genuine 8-amp ammeter. Royal Enfield part number 146996/A is identified for the self-start electrical configuration that uses a 4-pin black coupler.

The ammeter gives the rider a simple visual indication of charging and discharging current. Because older Royal Enfield motorcycles use several similar-looking ammeters with different ratings, dial styles, bulbs and connectors, the original part number and coupler must be checked before ordering.

What This Product Is

• Genuine Royal Enfield analogue ammeter
• Exact manufacturer part number: 146996/A
• Electrical range: 8 amp
• Application: Bullet Machismo AC/DC self-start configuration

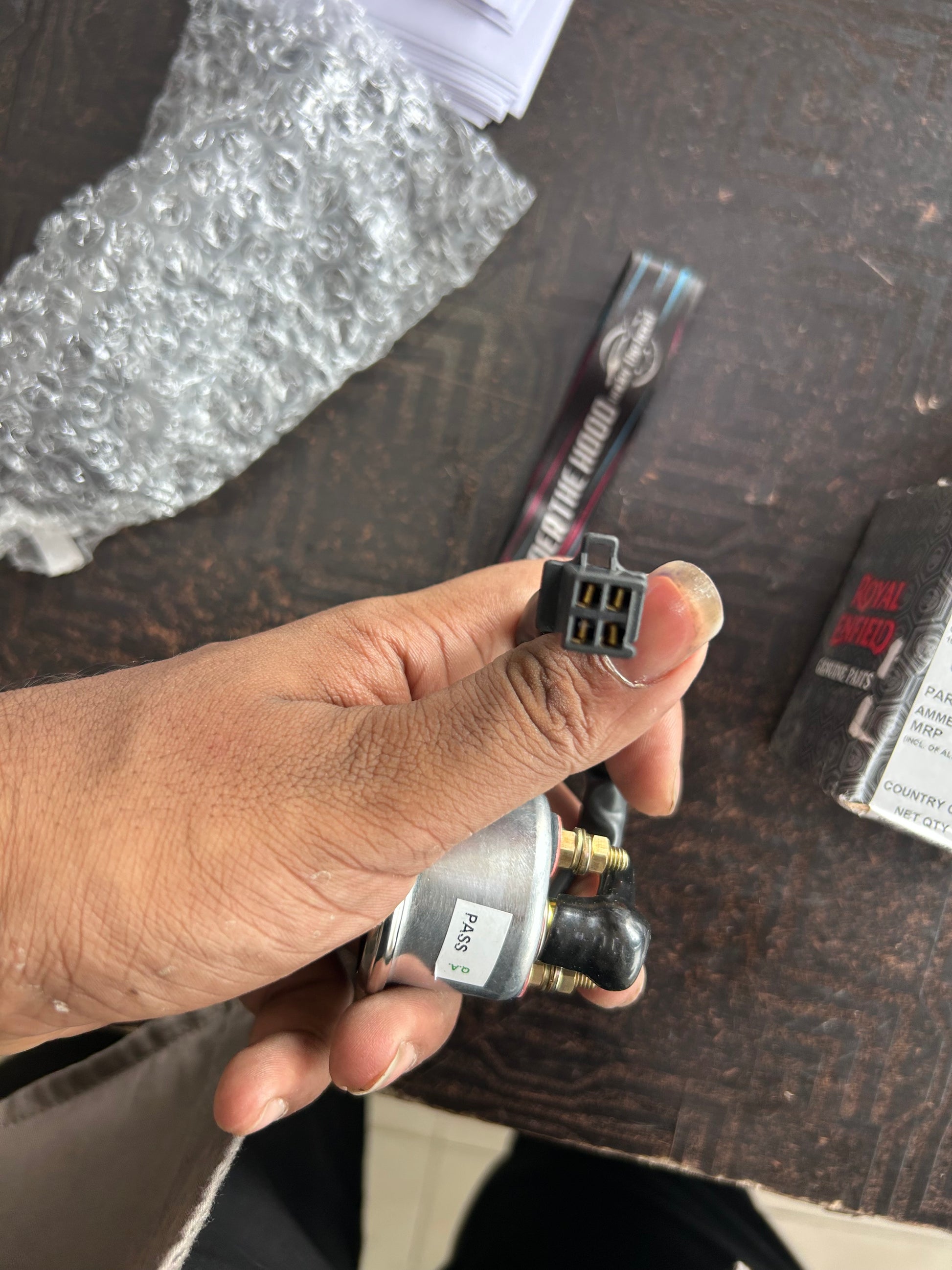

• Connector identification: 4-pin black coupler

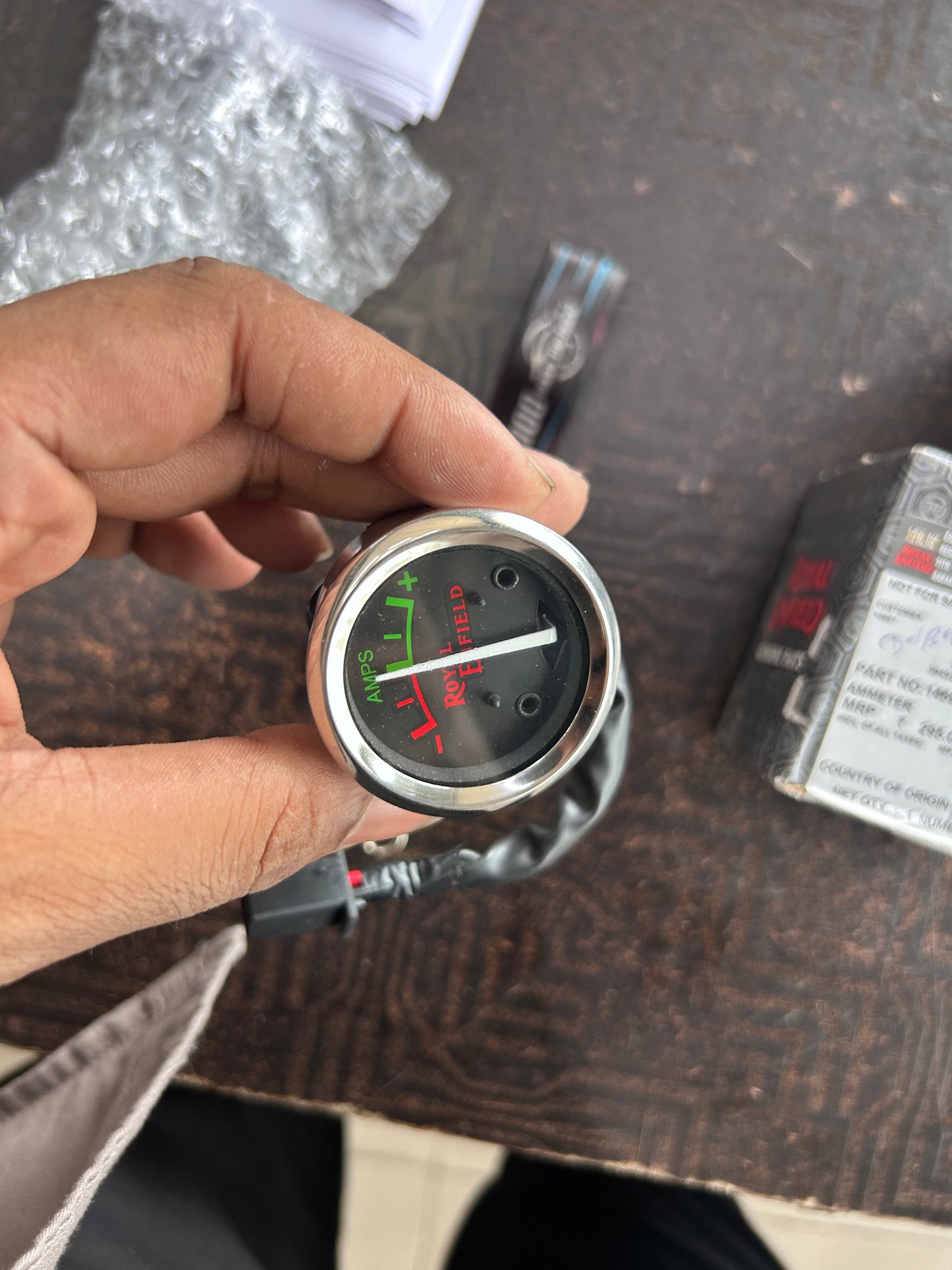

• Dial specification: black dial
• Instrument illumination: 12-volt bulb-type illumination
• Quantity supplied: one ammeter

What This Product Is Not

• Not a voltmeter
• Not a digital instrument cluster
• Not a speedometer
• Not a fuel gauge
• Not the 2-pin red/white-coupler Machismo ammeter
• Not the Thunderbird white-dial ammeter
• Not the 11-amp Classic, Electra or Standard UCE ammeter
• Not confirmed for modern Classic 350 Reborn, Bullet 350 J-Series, Meteor 350, Hunter 350 or 650 models

Key Features

• Genuine Royal Enfield replacement instrument
• Correct 8A rating for the assigned Machismo self-start application
• Analogue charge/discharge indication
• Black dial for the original-style instrument appearance
• 4-pin black connector identification for return prevention
• Suitable for replacing an open-circuit, stuck, inaccurate or physically damaged ammeter
• Exact MPN retained for dependable parts lookup

Confirmed Product Details

Safest Confirmed Fitment

Important: Some broad parts databases group this ammeter under older Bullet 350 and Bullet 500 applications. Do not order by engine capacity, registration year or the word “Bullet” alone. The safest identifiers are the exact 146996/A part number, Machismo self-start electrical configuration and matching 4-pin black coupler.

Do Not Order For

• Bullet Machismo kick-start or another version using a 2-pin red/white coupler
• Royal Enfield Thunderbird requiring 540004/A or another white-dial meter
• Classic 350 requiring an 11A ammeter such as 592173/C
• Electra 350 or Electra 500 UCE requiring a different 11A meter
• Bullet or Standard UCE using another part number or connector
• Classic 350 Reborn or new Bullet 350 J-Series
• Meteor 350, Hunter 350, Himalayan, Scram, Interceptor 650, Continental GT 650 or other modern models

Related Parts Sold Separately

What the Ammeter Does

The ammeter is connected within the motorcycle's charging circuit. Its needle responds to current flow:

• Movement toward the positive/charge side indicates charging current.
• Movement toward the negative/discharge side indicates electrical load drawing from the battery.
• A needle that remains permanently fixed may indicate a meter, wiring or charging-system fault.

The ammeter is an indicator, not a complete charging-system diagnosis. Battery condition, alternator output, regulator/rectifier operation, terminals and wiring should also be checked when a charging problem is suspected.

What You Will Receive

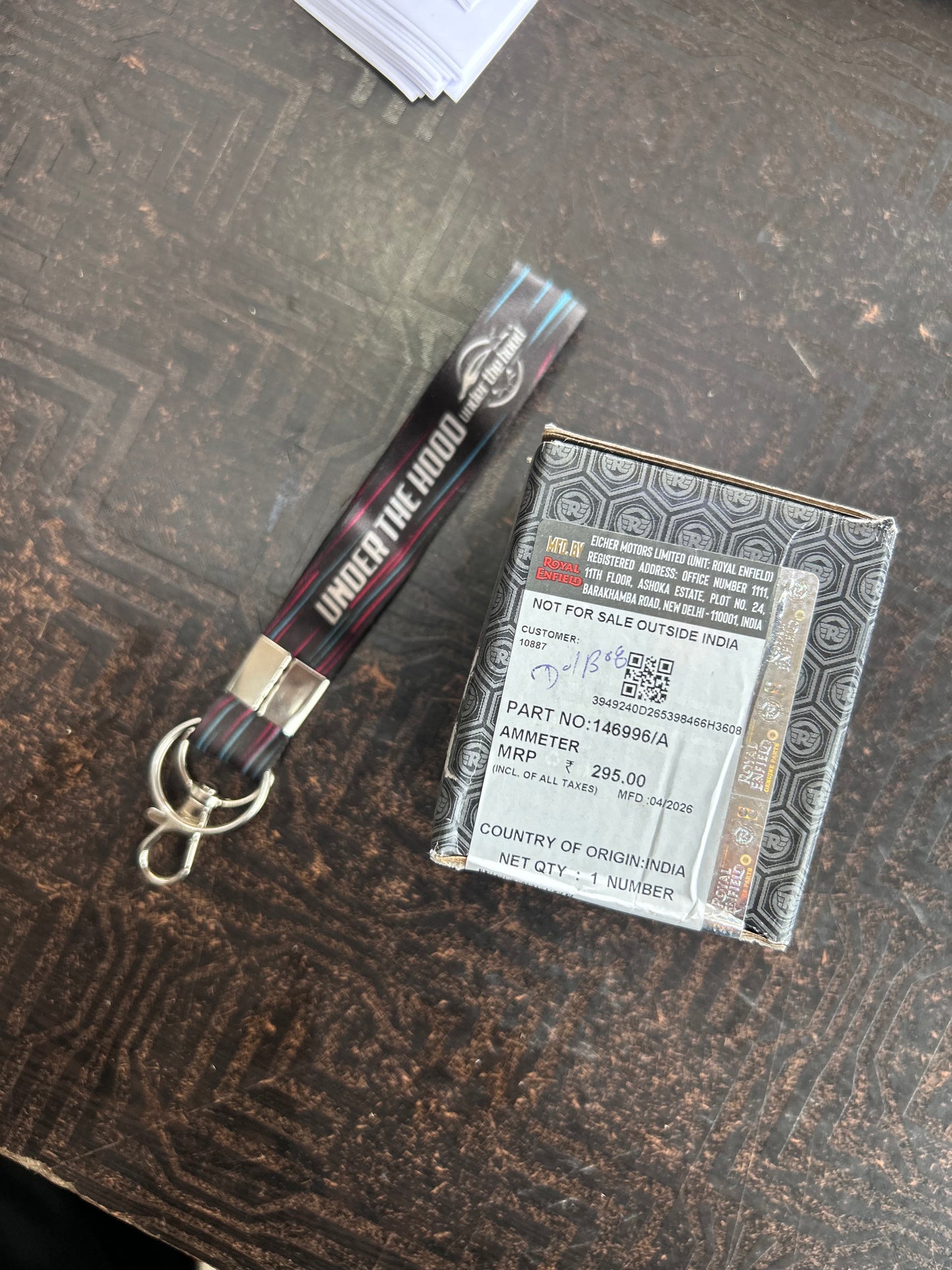

1 × Genuine Royal Enfield Bullet Machismo Self-Start Ammeter – 146996/A

The mounting rubber ring, separate illumination bulb, wiring harness, coupler, speedometer, headlamp casing, fasteners and installation labour are not included unless physically supplied in the sealed manufacturer package.

When Should the Ammeter Be Replaced?

• The needle is stuck despite confirmed circuit current
• The needle does not respond during charging or electrical loading
• The lens, dial or housing is physically damaged
• The internal illumination has been checked but the instrument remains faulty
• Terminals or the coupler connection are damaged beyond repair
• The meter has failed electrical continuity testing

Diagnostic Note

Do not replace the ammeter solely because the motorcycle battery is discharging. First inspect the battery, earth connections, charging coil or alternator, regulator/rectifier, fuse, couplers and wiring. A charging-system fault can produce abnormal ammeter behaviour even when the gauge itself is working.

Installation Note

• Disconnect the battery before touching the ammeter wiring.
• Record the original wire and coupler positions before removal.
• Compare the new 4-pin black coupler with the motorcycle harness.
• Inspect the mounting rubber and replace it separately if hardened, torn or missing.
• Do not force a mismatched coupler or alter the terminals to make it fit.
• Check wiring polarity and continuity using the applicable electrical diagram.
• Secure the meter without overtightening or distorting the housing.
• Professional electrical installation is recommended.

Important Return-Prevention Check

Before opening or installing the part, confirm all of the following:

• Exact required part number is 146996/A
• Motorcycle is the applicable Bullet Machismo self-start version
• Existing ammeter is rated for 8 amp
• Existing harness uses a 4-pin black coupler

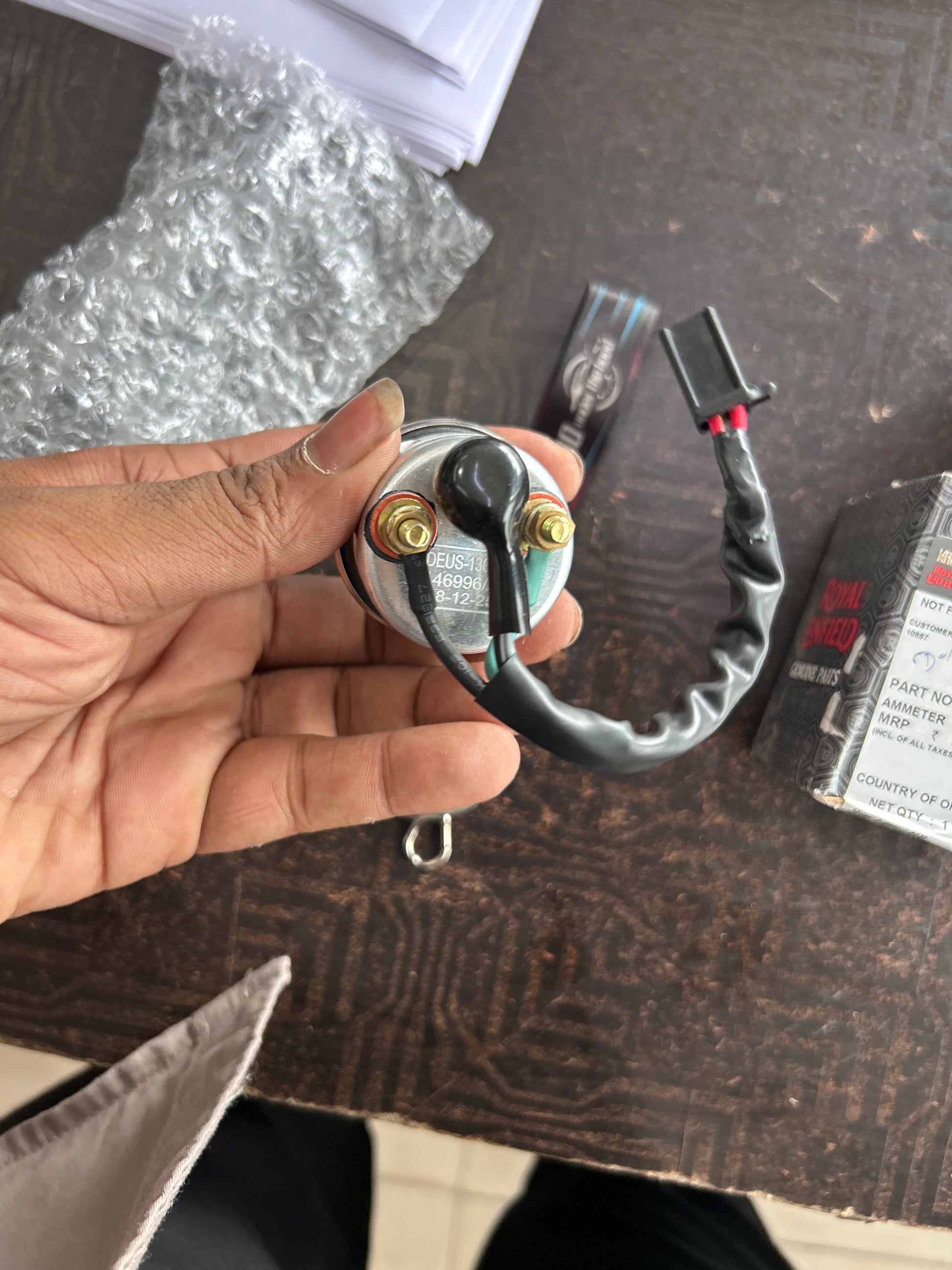

• Dial and terminal layout match the removed meter
• The fault has been diagnosed as an ammeter fault rather than a battery, charging-system or wiring problem

We do not offer exchanges. Electrical and electronic spare parts are not returnable or refundable after delivery, opening, installation, testing or use when the correct item has been supplied. Wrong selection, connector mismatch, incorrect diagnosis or mechanic recommendation does not make the supplied part incorrect. Record a complete unboxing video and report a wrong, missing or transit-damaged item within 24 hours with the required proof.

Frequently Asked Questions

What is Royal Enfield part 146996/A?

146996/A is the genuine 8-amp analogue ammeter listed for the Bullet Machismo AC/DC self-start electrical configuration using a 4-pin black coupler.

What does the ammeter indicate?

It shows the direction of electrical current flow, helping the rider see whether the motorcycle is charging the battery or drawing current from it.

Does it fit every old Royal Enfield Bullet?

No. Older Bullets use several ammeters with different ratings, connectors and dial styles. Match 146996/A and the 4-pin black coupler before ordering.

Will it fit a kick-start Machismo?

Not automatically. A kick-start or alternate Machismo configuration may use a 2-pin red/white-coupler meter. This listing is for the 4-pin black-coupler self-start application.

Is this an 8A or 11A meter?

It is the 8-amp specification. Do not substitute it for an 11-amp Classic, Electra or UCE meter.

Is the illumination bulb included?

The applicable 12V 2W BA7S ammeter bulb is catalogued separately as 146125/A. This listing guarantees one ammeter only.

Is the mounting rubber included?

The ammeter rubber ring is separately referenced as 140248. Reuse the original only if it is undamaged and still fits securely.

Can a faulty charging system damage or affect the reading?

Yes. Loose terminals, incorrect wiring, charging-system faults or battery problems can cause abnormal readings. Diagnose the complete circuit before replacing the gauge.

How do I confirm fitment?

Match the exact 146996/A reference, 8A rating, black dial, self-start Machismo configuration, 4-pin black connector and terminal arrangement with the existing meter.

Buy Genuine Royal Enfield 146996/A Online

Order the genuine Bullet Machismo self-start ammeter from Under The Hood. Shipping is available across India and to international destinations. Confirm the part number, rating, connector and electrical configuration before placing the order.
