Royal Enfield Classic 500 EFI & Bullet 500 EFI BS4 Genuine Intake Bellow + EVAP Hose Kit | KLY00001/A

Genuine Royal Enfield Classic 500 EFI & Bullet 500 EFI Intake Bellow + EVAP Hose Kit – KLY00001/A

Royal Enfield Part Number: KLY00001/A

KLY00001/A is a genuine Royal Enfield service kit described in the parts catalogue as “INTAKE BELLOW AND EVAP HOSE”. It is intended for the air-intake / evaporative-emission plumbing used on verified Royal Enfield Classic 500 EFI and Bullet 500 EFI Euro IV / BS4 applications.

This is a buyer-focused replacement for customers searching for a Classic 500 intake bellow, Bullet 500 air inlet rubber, throttle-body intake hose, EVAP hose, canister hose, air-filter-to-throttle-body rubber or Royal Enfield EFI intake rubber kit.

Important: the factory service-kit description combines the terms intake bellow and EVAP hose. The current price list does not publish the individual sub-part numbers or full loose-piece count of the sealed KLY00001/A package. Therefore clamps, clips, T-connectors, purge valve, canister and other surrounding components are not assumed to be included unless physically present in the genuine package.

Verified / Best-Supported Compatibility

The Euro IV Royal Enfield service manual groups the Bullet EFI and Bullet Classic EFI air-filter / throttle-body system together and shows an inlet bellow in the air-intake path. The same manual also shows the EVAP hoses connecting the throttle-body / purge-valve / canister system.

The related genuine inlet bellow 591671/C is directly assigned to Classic 500 Euro 4 and Bullet 500 Euro 4 applications in genuine-parts references. KLY00001/A is a separate service-kit SKU whose factory description specifically combines the intake bellow and EVAP hose.

What Is an Intake Bellow?

The intake bellow is the flexible rubber connection in the engine's incoming-air path. On the UCE 500 EFI layout it sits between the air-filter / airbox side and the throttle-body intake path.

Its job is to provide a sealed, flexible air passage while allowing for normal engine vibration and chassis movement.

A cracked or hardened intake bellow can create an unwanted air leak. On an EFI motorcycle, unmetered air entering downstream of the intended intake path can contribute to poor running and unstable fueling behaviour.

What Is the EVAP Hose?

The EVAP system is the motorcycle's evaporative-emission-control system. It routes fuel vapours through the canister / purge plumbing rather than allowing vapours to vent freely to atmosphere.

Royal Enfield's Euro IV service documentation shows rubber hoses connecting components such as:

• fuel tank / vapour line,
• purge valve,
• T-connector,
• EVAP canister,
• and throttle-body vacuum / purge connection.

A split, loose, collapsed or disconnected EVAP hose can cause an EVAP leak and may also create intake / vacuum symptoms depending on which hose is affected.

Why Royal Enfield Pairs These Components in a Service Kit

The intake bellow and EVAP plumbing live in the same general air-intake / throttle-body service area. Rubber parts age from heat cycles, fuel vapour exposure, ozone, vibration and repeated removal during servicing.

A service kit such as KLY00001/A allows the correct genuine rubber components to be replaced when the intake / EVAP system is being repaired.

Common Symptoms That Justify Inspection

Inspect the intake bellow and EVAP hoses if the motorcycle has:

• visible cracks or splits in the intake rubber,
• hard or brittle rubber,
• loose hose connections,
• air-leak / vacuum-leak symptoms,
• unstable or hunting idle,
• stalling at idle,
• hesitation or inconsistent throttle response,
• abnormal lean-running symptoms after other causes have been ruled out,
• EVAP hose damage from age or previous service work,
• fuel-vapour smell caused by damaged vapour plumbing,
• or a workshop diagnosis calling specifically for KLY00001/A.

Diagnosis note: these symptoms are not unique to an intake bellow or EVAP hose. Throttle-body condition, injector, fuel pressure, sensors, wiring, spark plug, valve clearance and other engine issues can cause similar symptoms. Replace parts according to diagnosis rather than symptoms alone.

Classic 500 EFI / Bullet 500 EFI – Euro IV / BS4 Focus

The strongest evidence for this listing comes from the Euro IV / BS4 UCE 500 EFI intake and EVAP system used on Classic 500 and Bullet 500.

These motorcycles use:

• EFI throttle body,
• air-filter housing and inlet-bellow connection,
• EVAP canister plumbing on emissions-compliant variants,
• purge-valve / hose connections,
• and model-specific air-intake rubber components.

Always verify the exact motorcycle market specification and VIN because emission equipment can vary by market and production period.

Not for Classic 350 Carburettor Models

Do not order KLY00001/A for a Classic 350 carburettor model merely because it is a UCE Classic.

The Classic 350 carburetted intake system uses different carburettor flange / intake components. For example, KLT00001/A is a separately catalogued carburetor flange kit used on certain Classic 350 carburettor applications.

KLY00001/A is listed here for the verified EFI / EVAP intake-system context, not as a universal UCE intake-rubber kit.

Not for J-Series Classic 350

The 2021-on Classic 350 Reborn / J-series is a completely different motorcycle platform with a different engine, throttle-body, airbox and EVAP layout.

KLY00001/A should therefore not be ordered for J-series Classic 350 unless a current VIN-specific Royal Enfield EPC specifically calls for this SKU.

Continental GT 535 Note

The Continental GT 535 also uses an EFI intake and EVAP system and shares certain service concepts with the UCE 500 EFI family. However, its airbox / intake layout and several hoses are separately catalogued.

This listing therefore does not claim Continental GT 535 fitment for KLY00001/A without an exact EPC assignment.

Himalayan 411 Note

The Himalayan 411 Euro IV service manual also uses an inlet bellow and EVAP hose in its throttle-body system, but that does not prove KLY00001/A is the correct packaged service kit for Himalayan 411.

Himalayan 411 compatibility is therefore not claimed in this listing without exact KLY00001/A catalogue assignment.

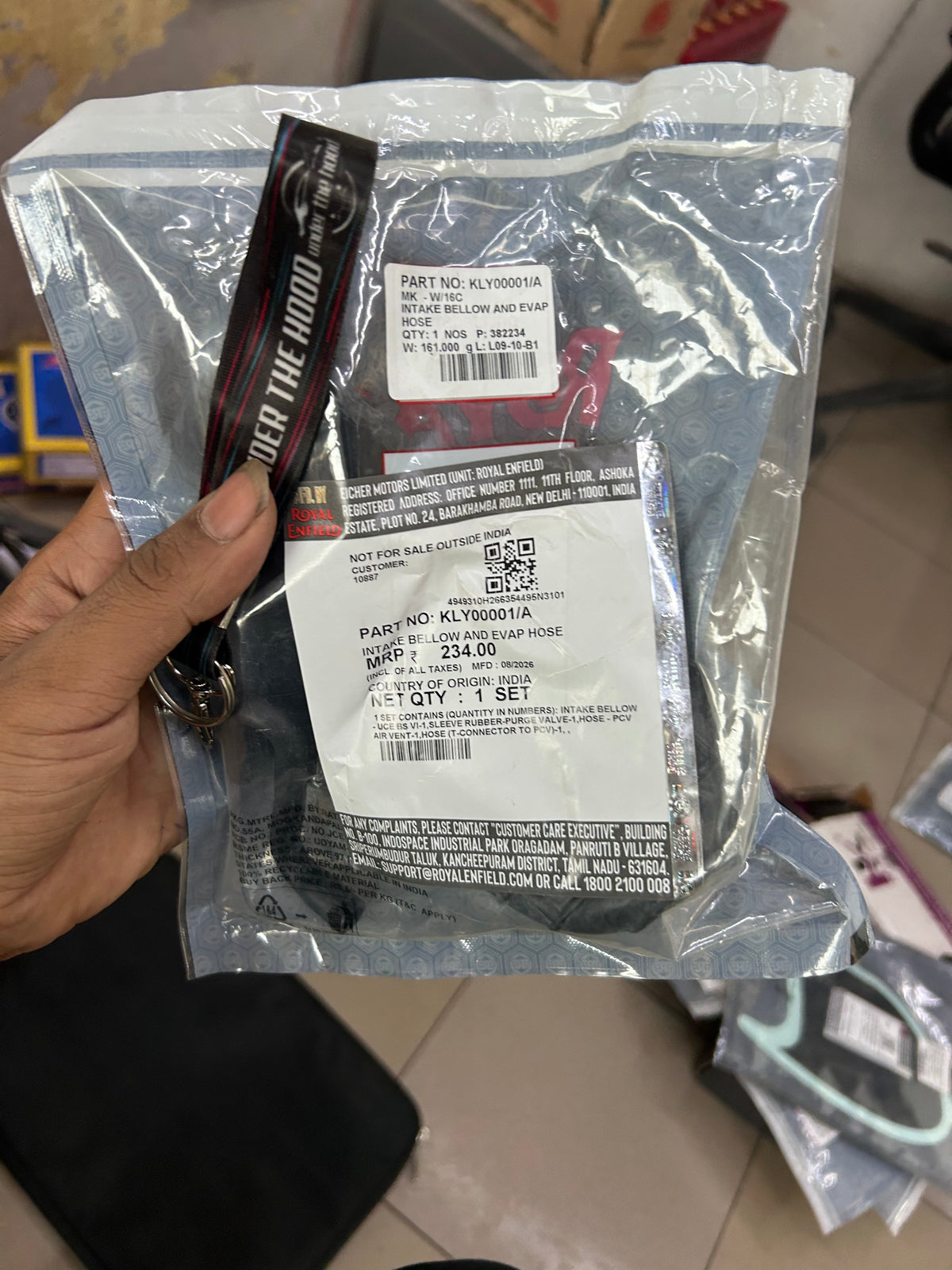

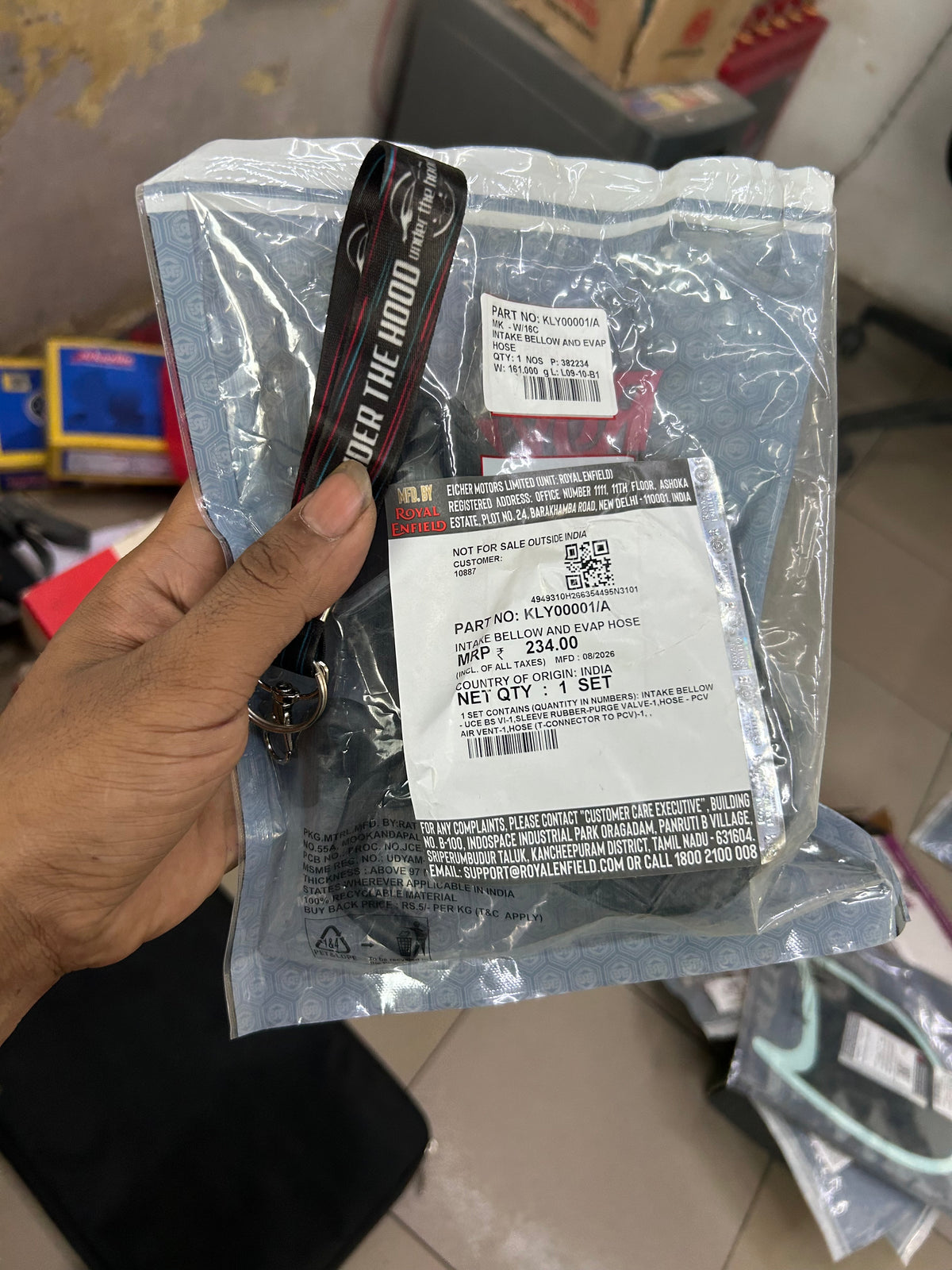

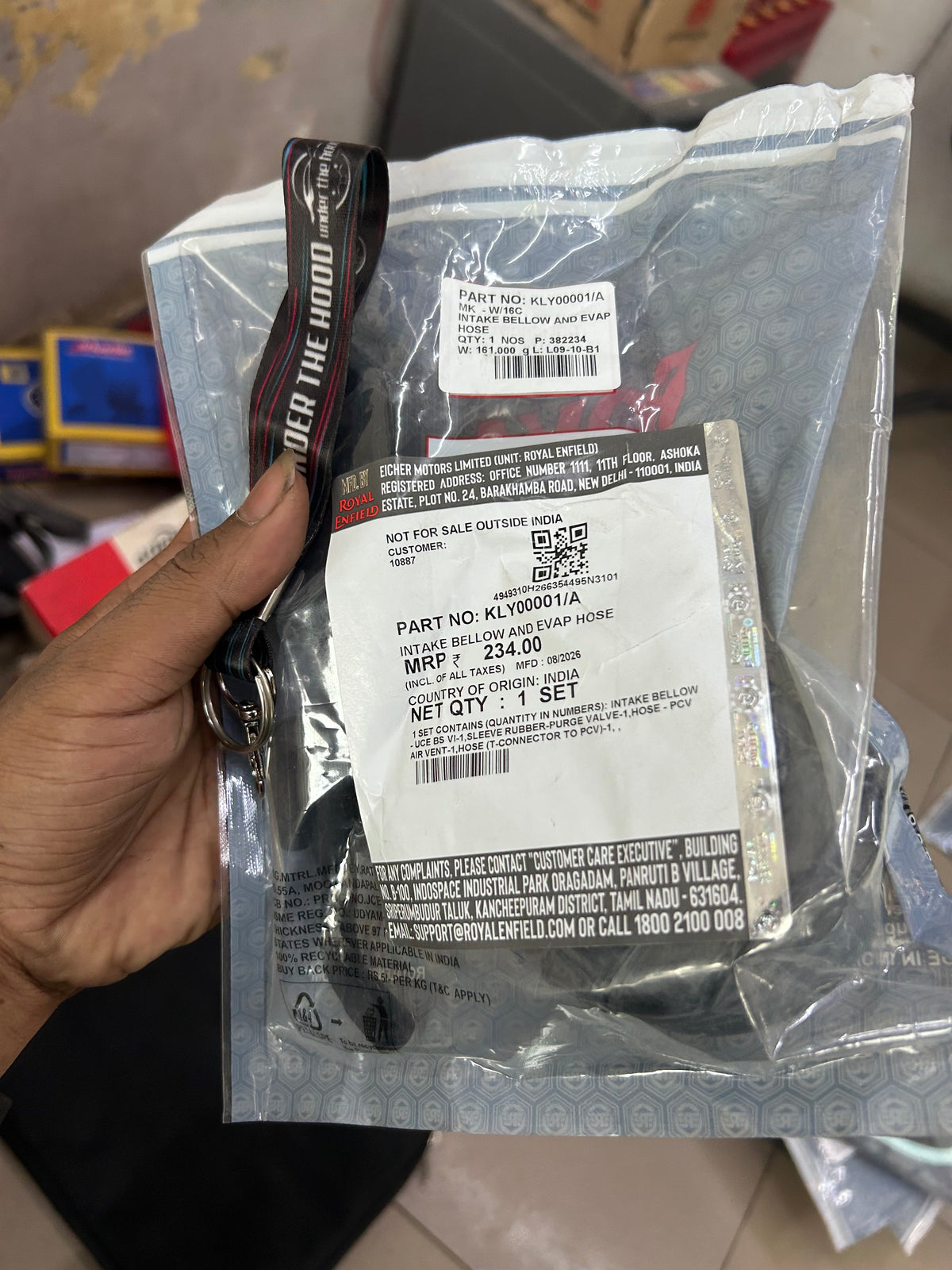

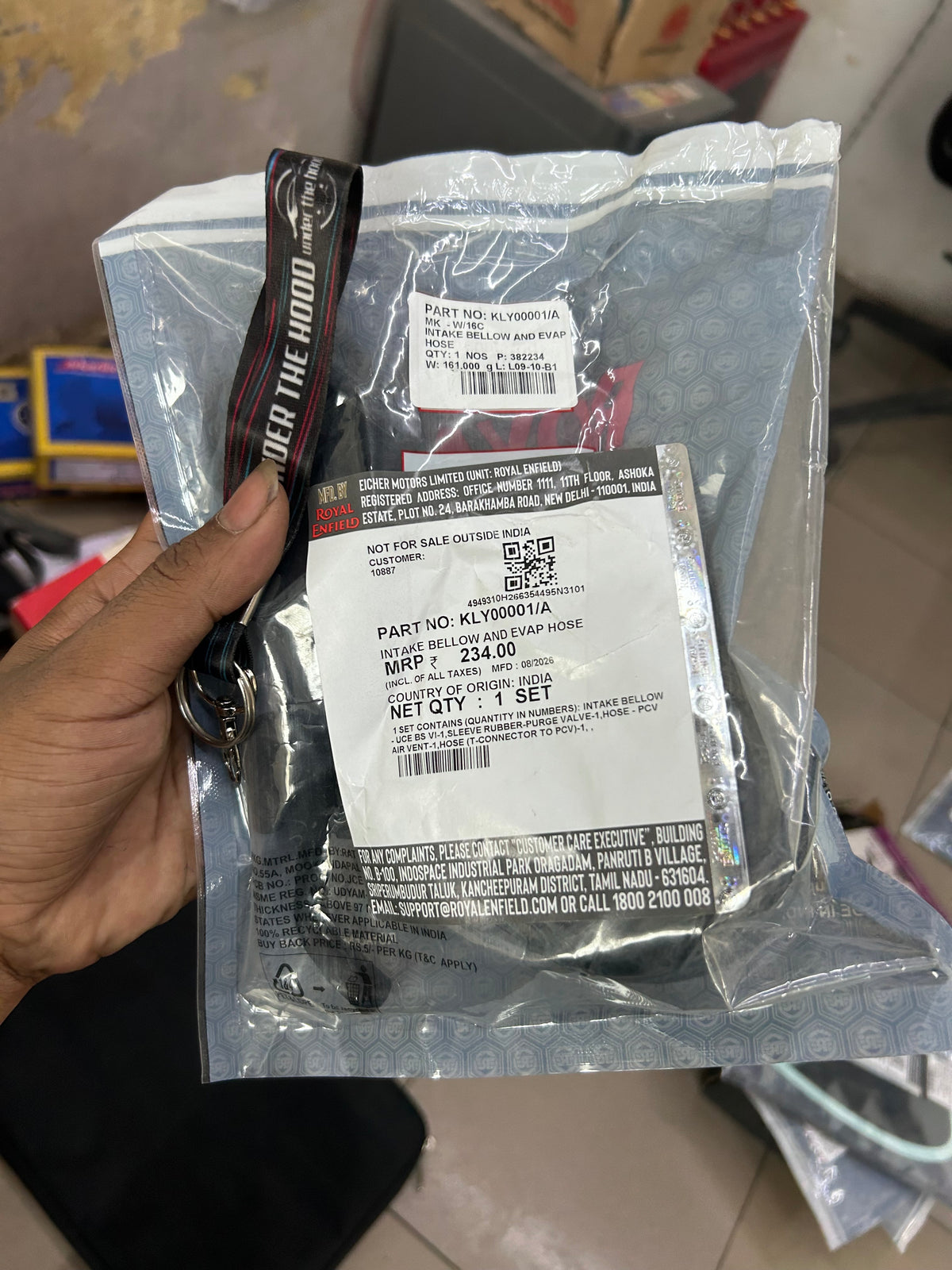

What You Receive

• 1 x Genuine Royal Enfield service kit – KLY00001/A
• Factory description: Intake Bellow and EVAP Hose

The genuine package should be treated as the authority for actual loose-piece contents.

Not automatically included:

• air-filter element,
• complete air-filter box,
• throttle body,
• fuel injector,
• EVAP canister,
• purge valve,
• T-connector,
• all EVAP hoses in the motorcycle,
• hose clamps / clips unless supplied in the sealed kit,
• fuel hose,
• or intake-manifold adaptor.

Related Classic 500 / Bullet 500 EFI Components

Useful related references in the same intake / EVAP service area include:

Important: the table above explains the surrounding system. It does not mean every listed component is inside KLY00001/A.

Installation Guidance

• Work on a cool motorcycle with the ignition switched off.
• Remove the fuel tank / airbox components only according to the correct Royal Enfield workshop procedure.
• Before removing hoses, note the original routing and connection points.
• Do not interchange EVAP hose positions.
• Inspect the throttle-body inlet and airbox outlet for dirt or damage before fitting the new bellow.
• Make sure the intake bellow is fully seated and not folded, twisted or pinched.
• Use the correct factory clamps / clips and position them correctly.
• Do not overtighten a clamp to the point that it damages the rubber bellow.
• Route EVAP hoses without kinks, sharp bends or contact with hot exhaust surfaces.
• Confirm all vacuum / EVAP connections are secure before starting the engine.
• After installation, inspect for intake leaks and confirm stable idle / normal throttle response.
• If the EVAP system has been disturbed, verify all canister and purge-valve connections according to the service manual.

Why a Cracked Intake Bellow Should Not Be Ignored

A damaged bellow can compromise the sealed intake path. Depending on the location of the leak, this can allow unfiltered or unmetered air into the system.

Continuing to run the motorcycle with a badly split intake rubber is not recommended. Replace the damaged component and inspect the air-filter / throttle-body area for contamination.

Why EVAP Hose Routing Matters

EVAP hoses are part of the emissions and vapour-control system. Incorrect routing, blocked hoses or wrong connections can affect purge operation and vapour flow.

Do not remove or permanently block EVAP plumbing as a substitute for repairing a damaged hose. Restore the motorcycle according to the correct factory system for its market and emission specification.

Part Details

Before Ordering

Please confirm all of the following:

1. Your motorcycle is a compatible Classic 500 EFI or Bullet 500 EFI using the relevant Euro IV / BS4 intake and EVAP layout.
2. Your required service SKU is KLY00001/A.
3. The component being replaced is in the intake-bellow / EVAP hose area.
4. Your motorcycle has not been modified with an aftermarket air filter, custom intake, EVAP delete or non-standard throttle-body plumbing.

If exact model-year or market fitment is uncertain, verify the VIN against the current Royal Enfield EPC before opening or installing the kit.

Frequently Asked Questions

Q. What is Royal Enfield KLY00001/A?
A. It is a genuine Royal Enfield service kit catalogued as “Intake Bellow and EVAP Hose.”

Q. What motorcycles is it for?
A. The strongest verified system-level application is the UCE 500 EFI Euro IV / BS4 intake and EVAP layout used by Classic 500 EFI and Bullet 500 EFI. Exact VIN/EPC matching is recommended because emission plumbing varies by market and year.

Q. Is this the same as the 591671/C inlet bellow?
A. 591671/C is a separately catalogued inlet bellow directly assigned to Classic 500 Euro 4 and Bullet 500 Euro 4. KLY00001/A is a separate service-kit SKU described as “Intake Bellow and EVAP Hose.” Do not assume the exact internal sub-part number of the bellow in the KLY kit without checking the physical factory package.

Q. Does it include the EVAP canister?
A. No such inclusion should be assumed. The canister is separately catalogued. KLY00001/A is described specifically as an intake bellow and EVAP hose kit.

Q. Does it include all EVAP hoses?
A. The price list does not publish the complete loose-piece count or each internal hose reference. Only the genuine sealed pack should be used to confirm exact contents.

Q. Does it fit Classic 350 BS3 / BS4 carburettor bikes?
A. No blanket fitment is claimed. Carburetted Classic 350 models use different intake components and should be matched to their own carburettor / airbox parts catalogue.

Q. Does it fit the 2021-on Classic 350 Reborn?
A. No. J-series Classic 350 uses a different engine and intake system.

Q. Does it fit Bullet 350?
A. Bullet 350 fitment is not claimed without exact KLY00001/A EPC confirmation.

Q. Does it fit Continental GT 535?
A. No guaranteed fitment is claimed. GT 535 uses a related EFI/EVAP concept but has model-specific intake and hose references.

Q. Does it fit Himalayan 411?
A. No guaranteed KLY00001/A fitment is claimed. Himalayan 411 also has an intake bellow and EVAP system, but that alone does not prove this service-kit SKU is correct.

Q. Can a cracked intake bellow cause unstable idle?
A. Yes, an intake leak can contribute to unstable running, but diagnosis should also check the throttle body, sensors, fuel system and other possible causes.

Q. Should EVAP hoses be blocked off if damaged?
A. No. The correct repair is to restore the factory EVAP plumbing with the appropriate genuine components for the motorcycle's emission specification.
