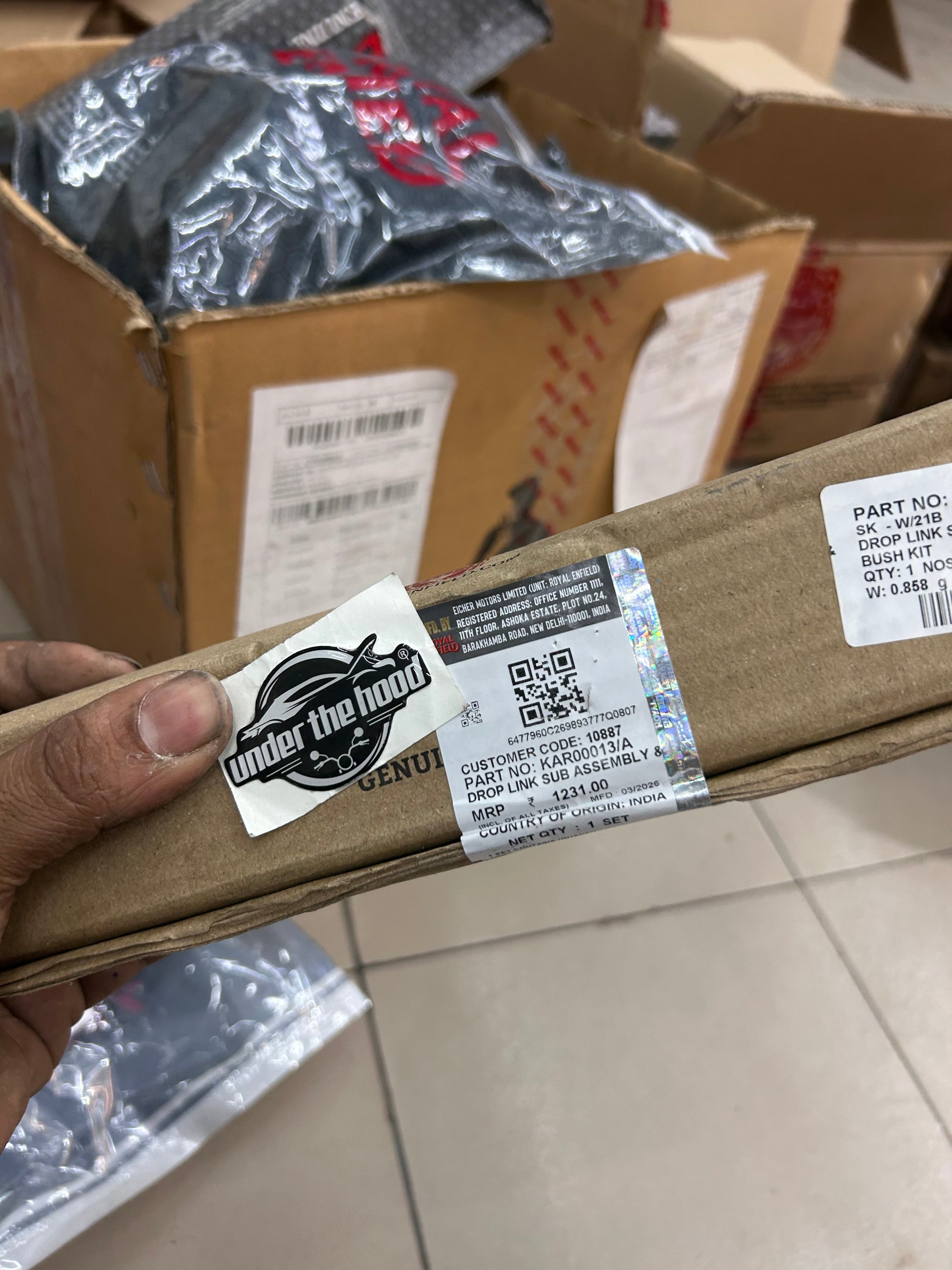

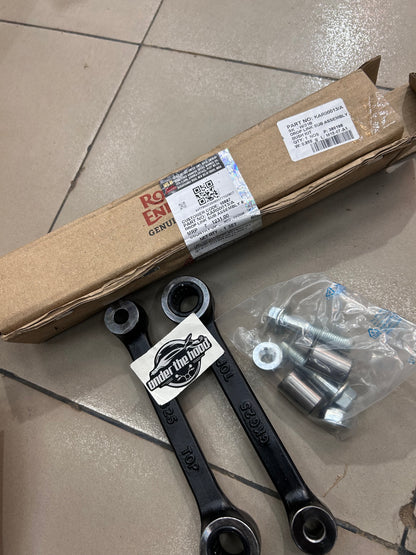

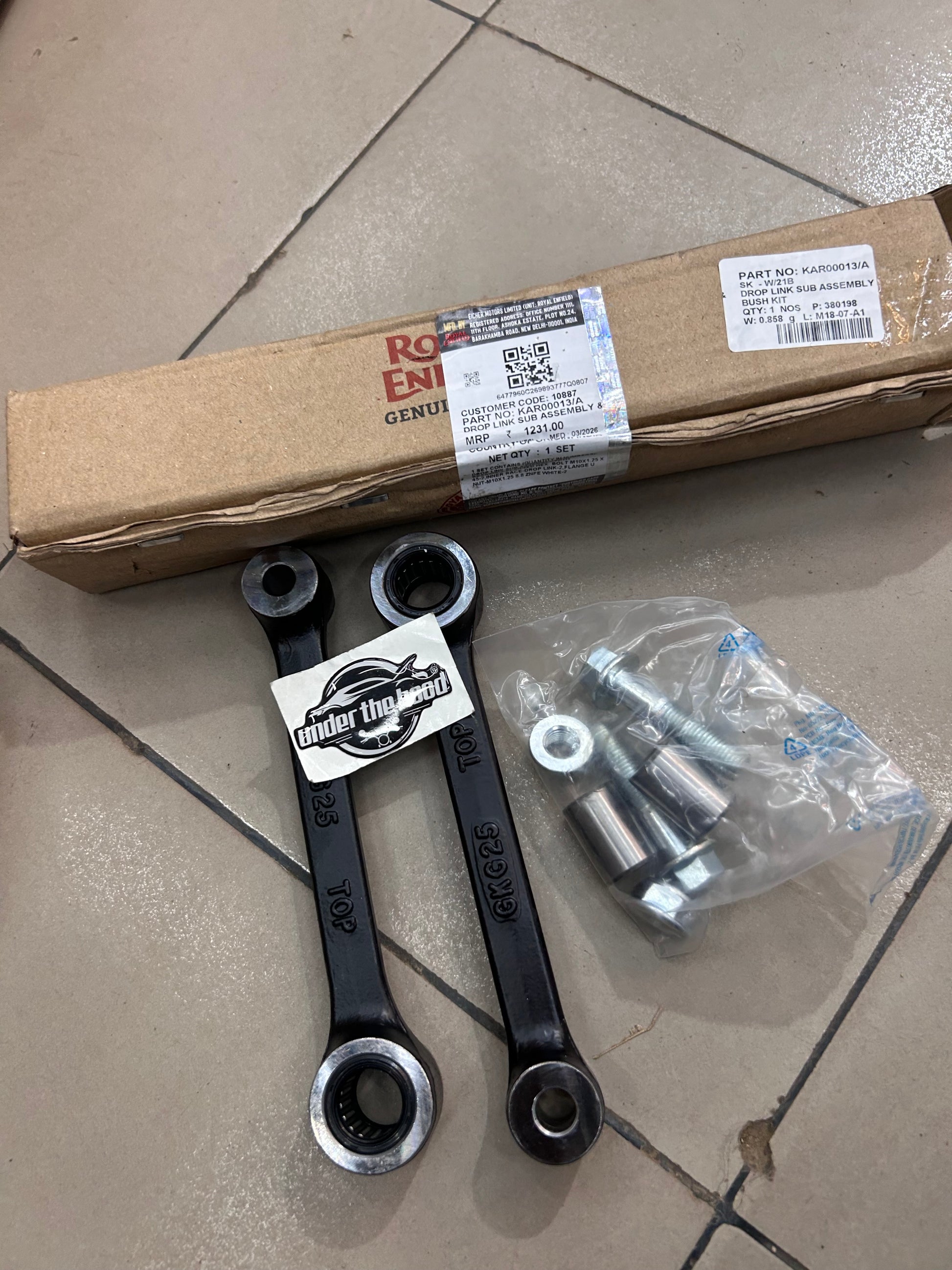

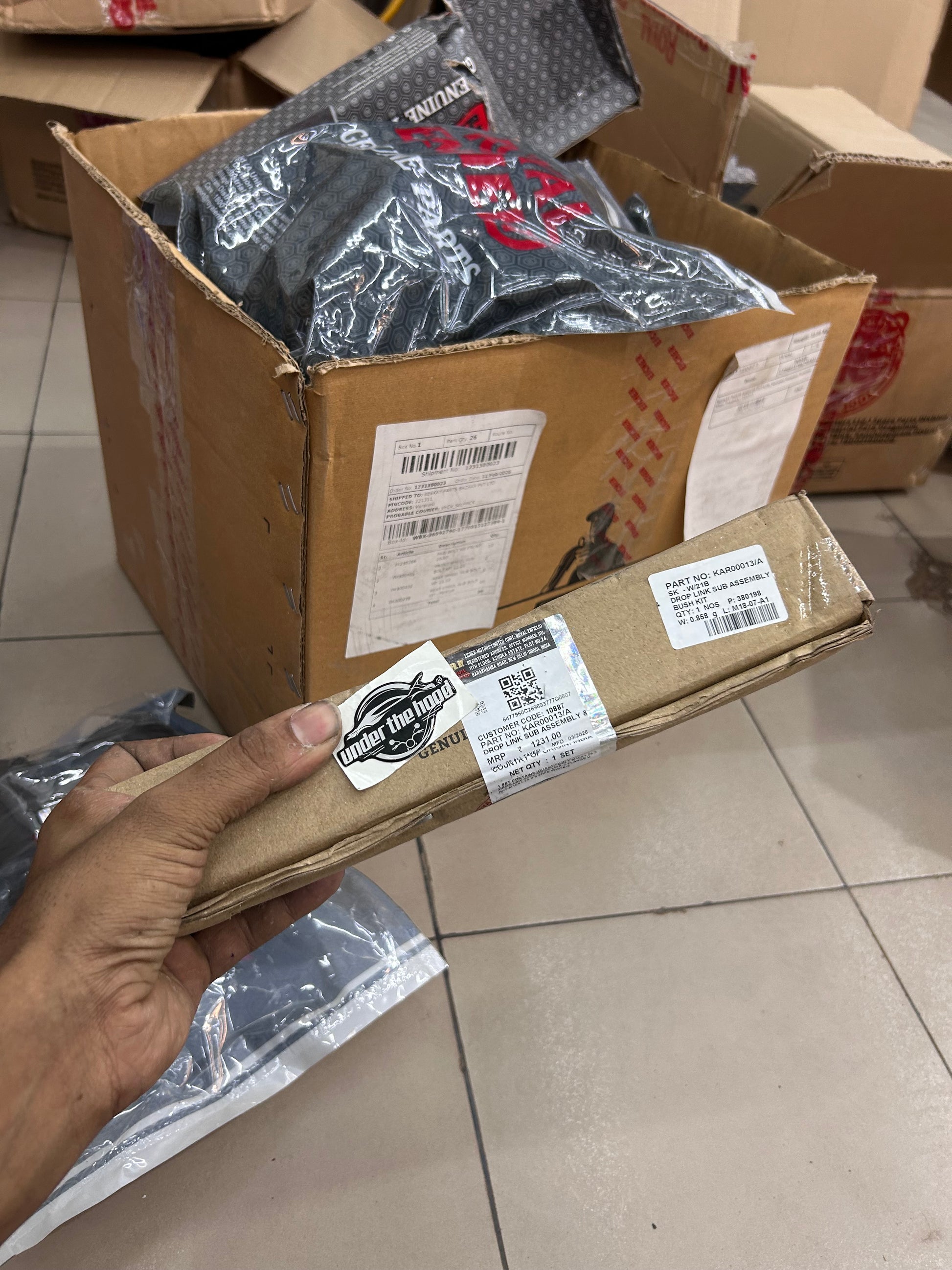

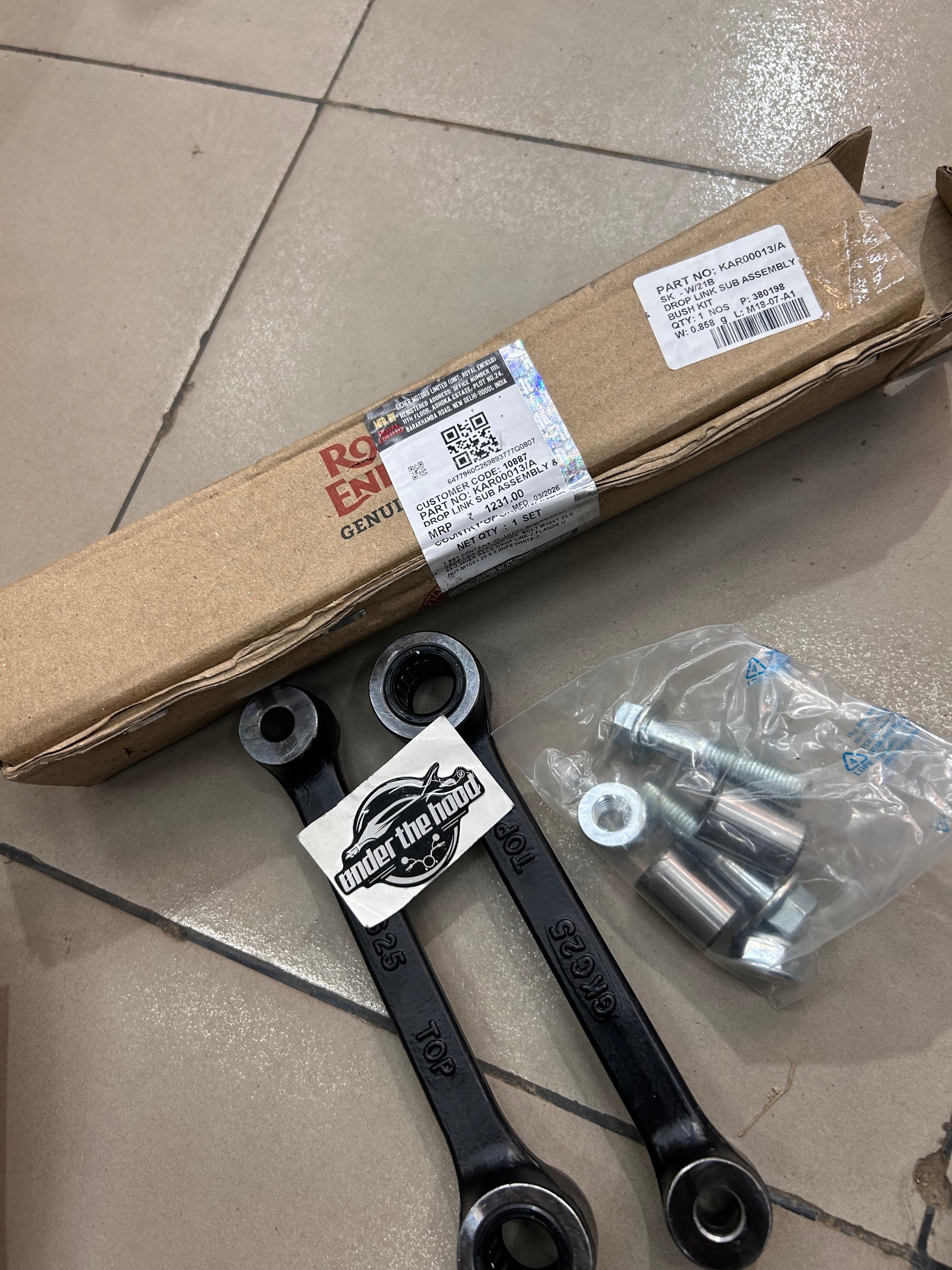

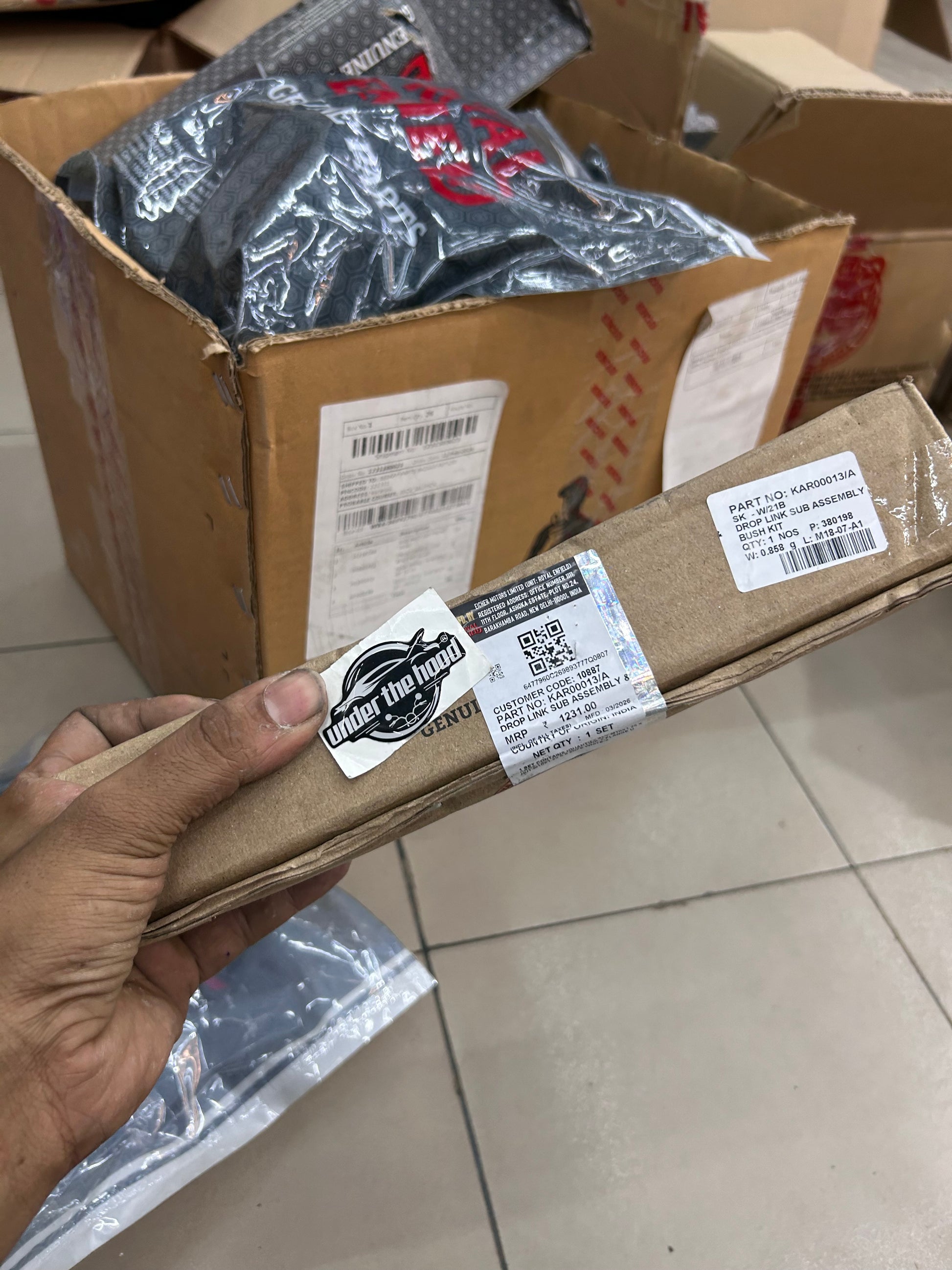

Drop Link Sub Assembly & Bush Kit (Rear Suspension Linkage) –For Royal Enfield Himalayn 411 & Scram 411 OEM – KAR00013/A

Royal Enfield KAR00013/A (often searched as KAR00013) is the genuine OEM Drop Link Sub Assembly & Bush Kit used in the motorcycle’s rear suspension linkage (commonly called drop link / linkage arm / dog-bone link). This part connects the swingarm linkage to the monoshock system and directly affects rear suspension geometry, ride height, and smooth articulation.

If you’re experiencing rear-end clunking, play in the linkage, uneven rear suspension movement, or visible wear in the linkage bushes, replacing the correct OEM drop link assembly is the cleanest fix. Worn linkage bushes are also a common cause of vague rear handling on rough roads and a “knock” sound when the suspension compresses.

Also searched as: rear suspension drop link, linkage rod, dog bone link, linkage bush kit, rear suspension linkage kit.

Before you buy: drop links vary by model and sometimes by year. Please confirm by VIN/EPC match or share photos/measurements of your existing drop link before dispatch to prevent wrong orders.

Key Features

• Genuine OEM Royal Enfield part number KAR00013/A
• Official description: DROP LINK SUB ASSEMBLY & BUSH KIT
• Restores correct rear suspension linkage movement and reduces play
• Helps eliminate clunk/knock caused by worn linkage bushes
• OEM bushing tolerances for smoother articulation and longer service life
• Recommended during rear suspension overhaul or monoshock service
• Return-prevention: order only after VIN/photo verification (model-wise linkage differs)

Compatibility Table

Variants

No variants.

FAQs

Q1 (Fitment): How do I confirm KAR00013/A fits my bike?
Confirm by VIN/EPC match or by comparing your existing drop link’s shape/eye-to-eye length and bushing size. The safest method is to share clear photos of the old part before dispatch.

Q2 (Fitment): Can I order this just because my bike has a rear linkage?
No. Many motorcycles have linkage systems, but drop link dimensions and bush sizes vary. Order only if KAR00013/A matches your old part number or you confirm via VIN/EPC/photo.

Q3 (Comparison): OEM linkage vs aftermarket linkage/bush kit?
OEM kits typically have better bushing tolerances and durability. Poor aftermarket bushes can develop play quickly, causing clunks and uneven suspension movement.

Q4 (Installation): Any precautions while installing a drop link?
Support the bike safely, torque fasteners to spec, and avoid damaging seals/bushes during installation. Inspect linkage bearings and grease points as per service manual guidance.

Q5 (Symptoms): What problems does this solve?
Rear suspension clunk/knock, excessive play at linkage joints, uneven rear movement, and worn/broken bushes.

Q6 (Returns-prevention): What should I send you to confirm before shipping?
Send (1) bike model + year, (2) photo of existing drop link removed or installed, and (3) any measurement/markings. This prevents wrong linkage orders.
