Royal Enfield Genuine Front Mudguard Extension Screw | Meteor 350, Hunter 350, Scram 411, Himalayan 450, Guerrilla 450 & Interceptor 650 | RAG00053/B

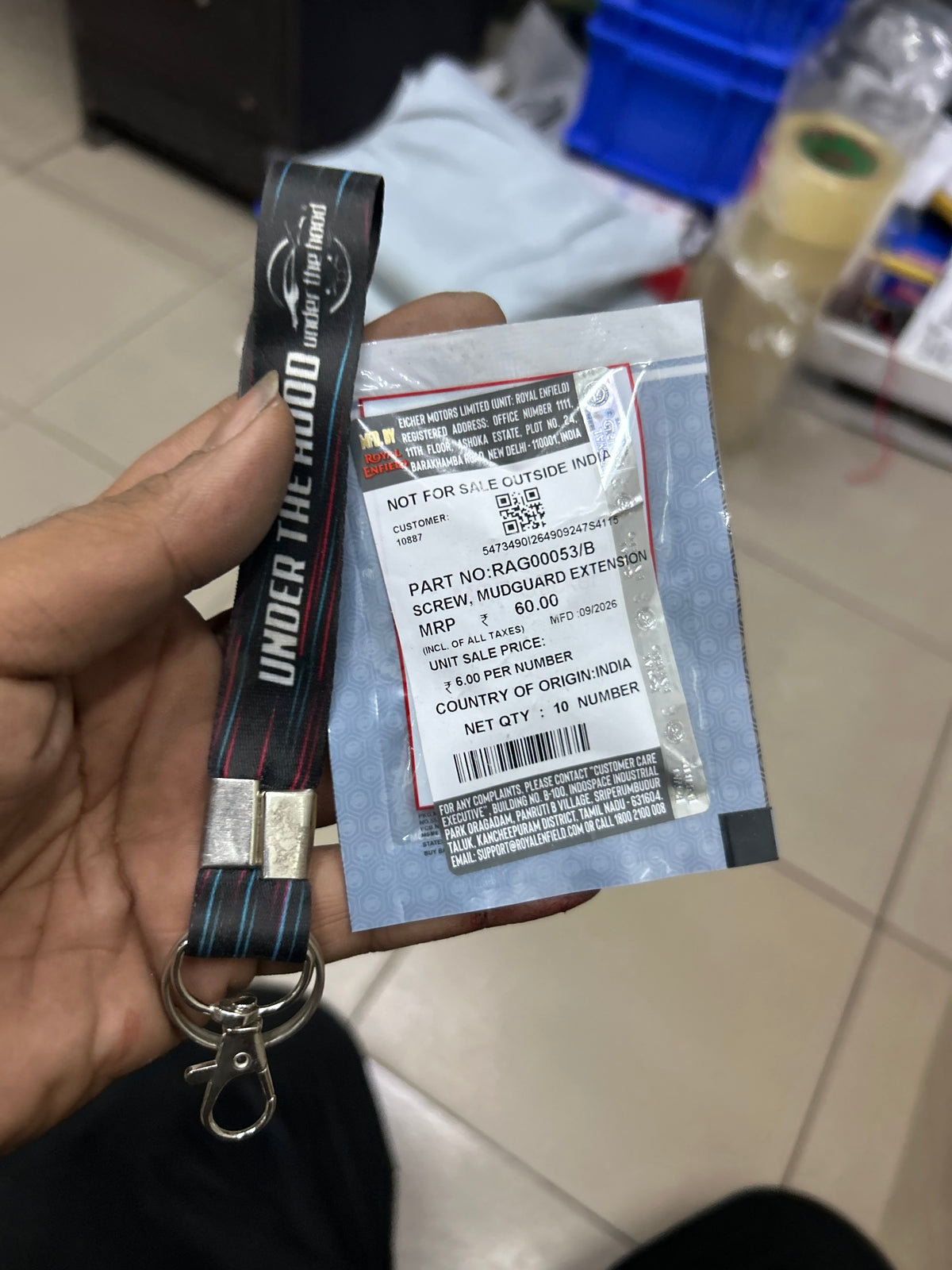

Genuine Royal Enfield Front Mudguard Extension Screw – RAG00053/B

Royal Enfield Part Number: RAG00053/B

RAG00053/B is the genuine Royal Enfield screw used to secure the front mudguard extension / front mudflap assembly on a wide range of Royal Enfield motorcycles.

The current Royal Enfield factory description is SCREW, MUDGUARD EXTENSION. Buyers may also search for this part as a front mudguard screw, mudflap screw, front fender extension screw, mudguard extender screw, mud flap mounting screw or front fender hardware screw.

This is a small but model-position-specific genuine fastener. It should not be replaced simply with a random screw because the correct factory hardware must match the mudguard extension, top-hat fitting and washer arrangement used on the motorcycle.

Verified Applications

Fitment note: RAG00053 is a shared Royal Enfield hardware reference and can appear on additional models or production variants. The exact quantity and position can differ by model, model year, front-mudguard design and market specification. If your motorcycle's VIN-specific EPC lists RAG00053, the current service SKU in this listing is RAG00053/B.

Current Service Part Number – RAG00053/B

Current 2026 Royal Enfield spare-parts data lists:

RAG00053/B – SCREW, MUDGUARD EXTENSION

Model-specific exploded parts books often display the base number simply as RAG00053. The current service / price-list suffix verified for this listing is /B.

No unsupported claim is made that every earlier suffix automatically supersedes to /B. The safest selection method is to match the current Royal Enfield EPC or genuine package to the motorcycle.

One Screw Per Quantity Ordered

This Shopify listing sells 1 individual RAG00053/B screw per quantity ordered.

This is important because Royal Enfield uses different quantities of the same screw depending on the motorcycle and mudguard arrangement.

Do not use the quantity above as a substitute for checking the exact motorcycle. Count the mounting positions or verify the current VIN-specific EPC before ordering a complete set.

Related Genuine Front-Mudguard Hardware

RAG00053/B commonly works with other separately catalogued Royal Enfield front-mudguard-extension hardware.

Do not assume these related parts are included with RAG00053/B. Each is separately catalogued unless supplied as part of a specific factory kit.

RAG00053/B vs RAG00052/C

These two numbers are often seen together and are easily confused:

• RAG00053/B = the screw that secures the mudguard extension.
• RAG00052/C = the top-hat fitting / insert used with the mudguard extension on applicable assemblies.

If the screw is present but no longer tightens correctly, inspect the top-hat fitting and mounting hole before assuming that only the screw needs replacement.

RAG00053/B vs 576313/D Washer

The 576313 family is the separately catalogued M5 washer used with RAG00053 in several front-mudguard assemblies.

RAG00053/B is not supplied as a screw-and-washer pair by default. Order the washer separately when required unless the genuine package being purchased specifically includes additional hardware.

Meteor 350 Application

The Meteor 350 front-mudguard parts book directly lists RAG00053 – Screw, Mudguard Extension together with RAG00052 – Top Hat, Mudguard Extension and the front mudflap.

The checked Meteor 350 catalogue uses 3 screws at this position.

Hunter 350 Application

Hunter 350 service records and front-mudguard parts data confirm RAG00053/B as mudguard-extension hardware.

A 2026 Royal Enfield dealer service pre-invoice for a Hunter 350 Graphite Grey specifically lists:

• RAG00053/B – Screw, Mudguard Extension
• RAG00052/C – Top Hat, Mudguard Extension
• 576313/D – Washer, M5

Because Hunter parts/service records show differing counts, order quantity should be checked against the motorcycle's exact mudguard arrangement rather than assumed universally.

Scram 411 Application

The Scram 411 Euro 5 front-mudguard / headlamp-cowl parts catalogue lists RAG00053 as the mudguard-extension screw and shows 3 pieces in the checked arrangement.

This is distinct from the painted front mudguard itself and from the separately catalogued front mudflap.

Himalayan 450 Application

The Himalayan 450 front-mudguard catalogue lists RAG00053 in the mudguard-extension system together with RAG00052 top hats and model-specific mudguard panels.

The checked Himalayan 450 arrangement uses 7 RAG00053 screws. This larger count reflects the multi-piece front-mudguard construction and should not be applied to other Royal Enfield models.

Guerrilla 450 Application

The 2024-on Guerrilla 450 front-mudguard catalogue directly lists RAG00053 – Screw, Mudguard Extension, with 4 pieces in the checked assembly.

Do not assume the Guerrilla and Himalayan use the same quantity simply because they share the Sherpa 450 engine family.

Interceptor 650 Application

Interceptor 650 front-mudguard catalogues also use the RAG00053 mudguard-extension screw together with the applicable extension / mudflap hardware.

Colour or mudguard revisions can change the surrounding painted fender part number without necessarily changing this shared small hardware item.

What This Screw Does

RAG00053/B secures the lower extension / mudflap portion of the front fender system at the positions specified by the motorcycle's parts catalogue.

Correct hardware helps keep the extension:

• properly aligned,
• secure against vibration,
• clear of the tyre through suspension movement,
• and correctly supported by its washers / top-hat fittings where used.

When Should It Be Replaced?

Replace the screw when:

• the original screw is missing,
• the head is damaged or rounded,
• the threads are damaged,
• the screw is bent or corroded,
• the front mudflap or extension has been removed during accident repair,
• incorrect aftermarket hardware has previously been installed,
• or the genuine parts catalogue / workshop estimate specifies RAG00053/B.

Do Not Blame the Screw for Every Loose Mudflap

If the front mudguard extension is loose, inspect the complete mounting system before ordering only the screw.

Possible causes include:

• missing RAG00052 top-hat fitting,
• missing or damaged washer,
• elongated mudguard hole,
• cracked plastic / mudflap material,
• damaged mounting rubber,
• damaged front mudguard,
• or incorrect previous repair hardware.

Installation Guidance

• Confirm the exact mounting position uses RAG00053/B before installation.
• Inspect the RAG00052 top-hat / insert and washer where fitted.
• Align the mudguard extension correctly before tightening the screws.
• Start the screw by hand to reduce the risk of cross-threading or damaging the insert.
• Do not overtighten into plastic, rubber-supported or top-hat mounted sections.
• Use the Royal Enfield workshop torque where a torque specification is provided for the exact model.
• After assembly, compress / move the front suspension as appropriate and verify adequate tyre-to-mudguard clearance.
• Turn the steering fully left and right and confirm no mudguard part fouls another component.
• Recheck all extension fasteners after any accident repair or front-fender replacement.

Not a Universal Hardware-Store Screw

Although RAG00053/B is inexpensive and used across multiple Royal Enfield models, it is still an OEM application-specific fastener.

A random screw with an apparently similar head should not be considered equivalent unless the dimensions, thread, head geometry, finish and mounting arrangement are confirmed.

Part Details

What You Receive

• 1 x Genuine Royal Enfield Mudguard Extension Screw
• Part Number: RAG00053/B

Top-hat fitting, washer, mudflap, complete front mudguard, mounting rubber and other hardware are not included unless physically supplied in the genuine packet.

Before Ordering

Please confirm:

1. Your motorcycle's EPC or existing genuine hardware calls for RAG00053 / RAG00053/B.
2. You need the mudguard-extension screw, not the top-hat RAG00052/C.
3. You have counted how many screws are required for your exact motorcycle and repair.
4. The mounting holes, inserts and mudguard extension are undamaged.

Frequently Asked Questions

Q. What is Royal Enfield RAG00053/B?
A. It is the genuine Royal Enfield front mudguard extension / mudflap mounting screw.

Q. Is RAG00053/B the same as RAG00052/C?
A. No. RAG00053/B is the screw. RAG00052/C is the separate top-hat / insert fitting used with the mudguard extension on applicable models.

Q. Is the washer included?
A. Do not assume so. The 576313 M5 washer family is separately catalogued.

Q. Does it fit Meteor 350?
A. Yes. The Meteor 350 front-mudguard catalogue directly lists RAG00053; the checked arrangement uses three.

Q. Does it fit Hunter 350?
A. Yes. Hunter 350 parts and dealer service records list RAG00053/B as the mudguard-extension screw. Verify the quantity required because different records / applications show different counts.

Q. Does it fit Scram 411?
A. Yes. The Scram 411 parts book lists RAG00053 in the front-mudguard assembly; three are used in the checked catalogue.

Q. Does it fit Himalayan 450?
A. Yes. The Himalayan 450 mudguard catalogue lists RAG00053; the checked multi-piece front-mudguard assembly uses seven.

Q. Does it fit Guerrilla 450?
A. Yes. The Guerrilla 450 front-mudguard catalogue lists RAG00053 and shows four in the checked assembly.

Q. Does it fit Interceptor 650?
A. Yes. Interceptor 650 front-mudguard catalogues list RAG00053 as the mudguard-extension screw.

Q. Is this a set of 3, 4 or 7 screws?
A. No. This listing sells one screw per quantity ordered. Order the number required for the exact motorcycle.

Q. Why do different models use different quantities?
A. Royal Enfield uses different front-fender and mudguard-extension designs across model families. The same shared screw can therefore appear at a different number of mounting points.

Q. Can I use a normal screw instead?
A. OEM hardware is recommended. Do not substitute based only on visual similarity.

Q. My mudflap is loose even with a new screw. What should I check?
A. Inspect the top-hat fitting, washer, mounting hole, mudflap, mounting rubber and front mudguard for damage or missing parts.

Q. Does this include the complete front mudguard extension?
A. No. RAG00053/B is only the individual mounting screw.
