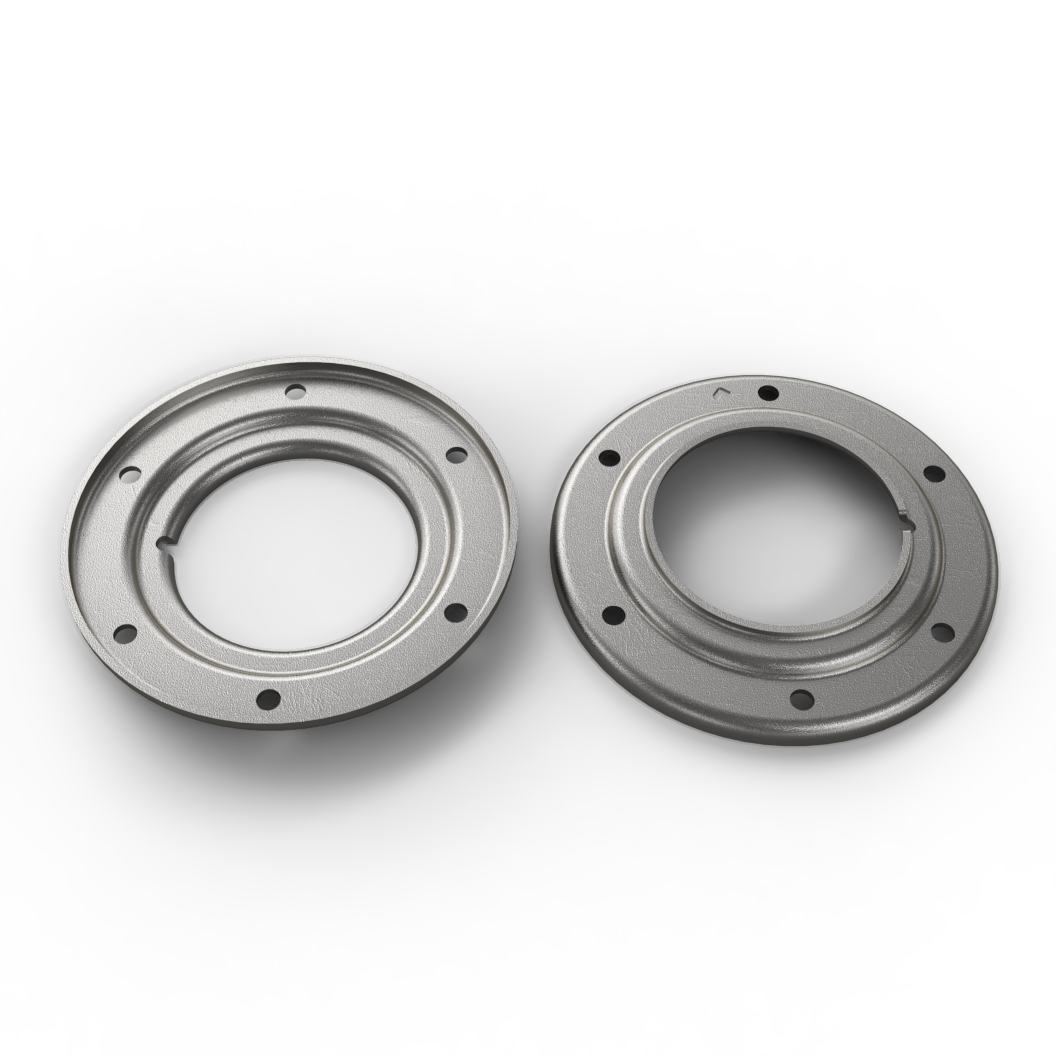

Fuel Pump Retaining Plate (Pump Lock Ring Plate) for Interceptor 650 / Continental GT 650 – 148120/F (Supersedes 148120/C)

Royal Enfield 148120/F is the plate, retaining (retainer plate) for the fuel pump module used in the fuel tank assembly on the 650 Twins platform. This plate clamps/locks the fuel pump module and its sealing O-rings in the correct position, helping prevent fuel seepage, fuel smell, and pump movement after service work.

If your bike has had a fuel pump job, tank removal, or you’re dealing with a loose module due to stripped screws or a bent retainer, replacing the retaining plate restores a tight, factory-style fit. It is also searched as fuel pump retaining plate, fuel pump lock plate, pump module retainer, or fuel pump lock ring plate.

Before you buy: Confirm your bike is a Royal Enfield 650 Twin (Interceptor 650 / Continental GT 650) and match the part number/suffix (148120/F) or share a photo of your existing plate + tank underside to confirm the screw pattern before dispatch.

Key Features

• Genuine Royal Enfield retainer plate for the fuel pump module (fuel tank assembly).
• Helps maintain correct sealing pressure on the fuel pump module O-rings to reduce seepage/leaks after service.
• Correct screw-hole pattern and metal thickness as per OEM spec for stable clamping.
• Recommended replacement if the original plate is bent, corroded, cracked, or threads are damaged.
• Ideal for workshop fuel pump service jobs where the module is removed/refitted.
• Supersession-aware: 148120/C is shown with a replacement reference to 148120/F on OEM dealer catalogues.
• Supports clean, vibration-resistant mounting of the pump module on 650 Twins tanks.
• Works with stock fuel pump module sealing system (use correct OEM O-rings; do not use sealant).

Compatibility

Variants

No variants.

FAQs

Q1 (Fitment): How do I confirm 148120/F fits my bike?

Match three things: (1) bike is a Royal Enfield 650 Twin (Interceptor 650 or Continental GT 650), (2) your parts catalogue / old part number matches 148120/F (or shows 148120/C with replacement to 148120/F), and (3) the screw-hole pattern matches your existing retainer. If unsure, share a clear photo of the plate + tank underside before dispatch.

Q2 (Fitment): Will this fit BS6 / Euro 5 Interceptor 650 or GT 650?

Some later bikes may still use the same retaining plate, but we do not mark it confirmed without matching evidence for your exact year. The safest method is to verify the old part number/suffix on your removed plate or share a photo so we can match the hole pattern.

Q3 (Comparison): 148120/C vs 148120/F — what changed?

In OEM dealer catalogues, 148120/C is shown with a “see replacement part number below” reference to 148120/F. That means 148120/F is the current supply reference for the same description. Always order the latest superseded part unless you have a specific reason to match an older suffix exactly.

Q4 (Installation): Any precautions while installing the fuel pump retaining plate?

Work with the tank safely ventilated. Do not pinch O-rings; seat the fuel pump module squarely, then tighten screws evenly in a cross pattern to avoid warping the plate. Do not use sealant on the OEM sealing surfaces.

Q5 (Symptoms): What problems does this plate solve?

Loose fuel pump module after service, uneven clamping of the pump flange, fuel smell or seepage around the module (when O-rings are otherwise correct), bent/corroded retainer, or stripped/warped retainer plate causing poor seating.

Q6 (Returns-prevention): What should I share for zero-wrong-order shipping?

Send (1) photo of your old plate with part number/suffix if visible, (2) photo of the plate installed area under the tank showing the screw pattern, and (3) your model + year/market spec. This prevents wrong-platform orders.
