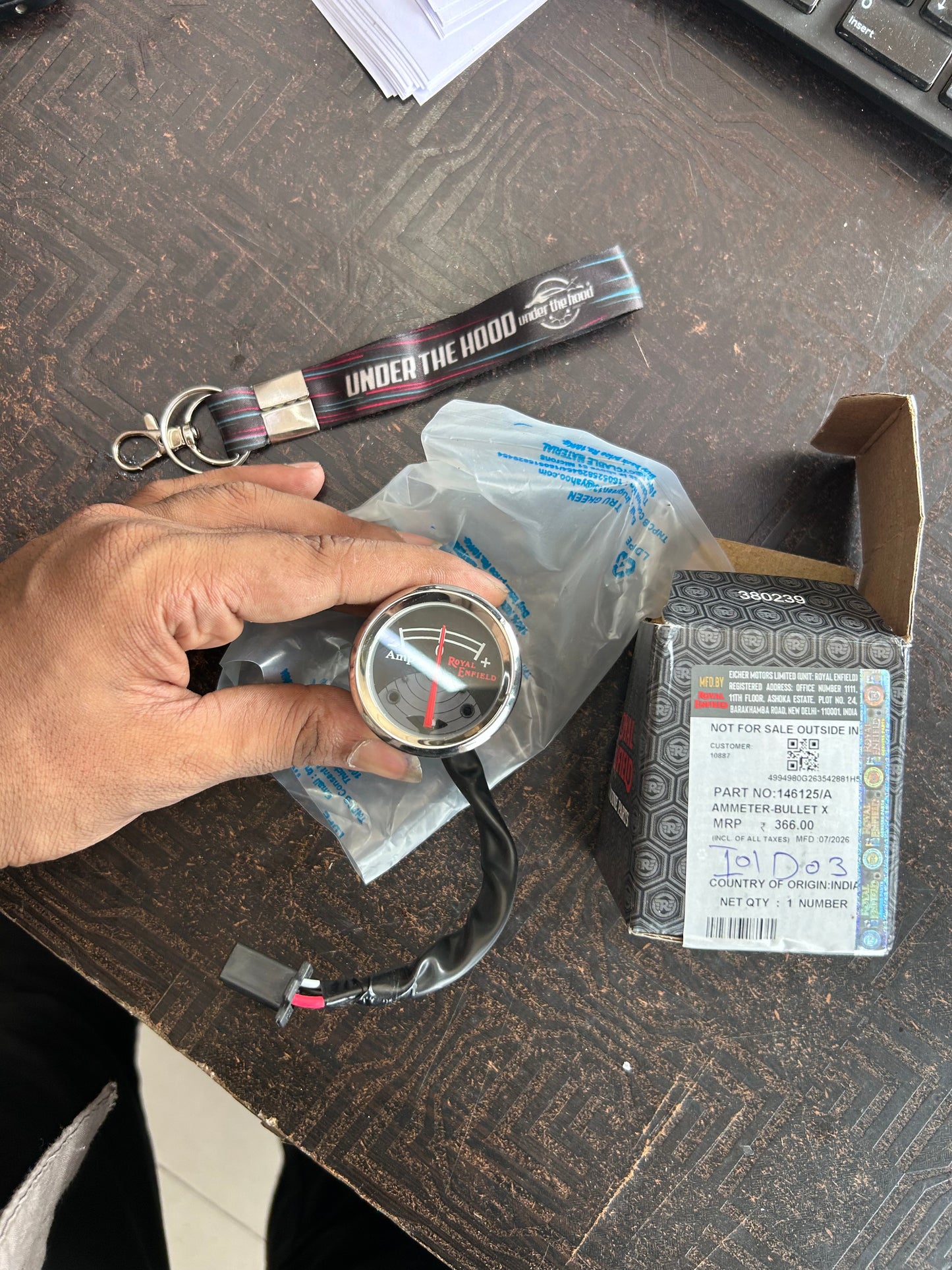

Royal Enfield Old Bullet 350/500 & Electra X Grey-Face Ammeter 146125/A

The Royal Enfield 146125/A Ammeter is a genuine grey-faced electrical instrument for compatible older Royal Enfield Bullet and Electra models. It is installed in the headlamp-casquette instrument panel and provides a visual indication of current flowing to or from the motorcycle battery and charging system.

This is an old-model electrical component. Several Royal Enfield ammeters have the same general diameter but differ in dial colour, terminal arrangement, connector type, bulb arrangement and wiring. The existing instrument and connector must be checked before ordering.

What This Product Is

• Genuine Royal Enfield ammeter
• Factory description: Ammeter – Bullet X

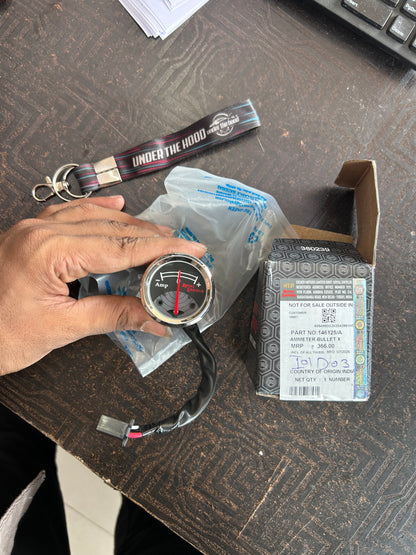

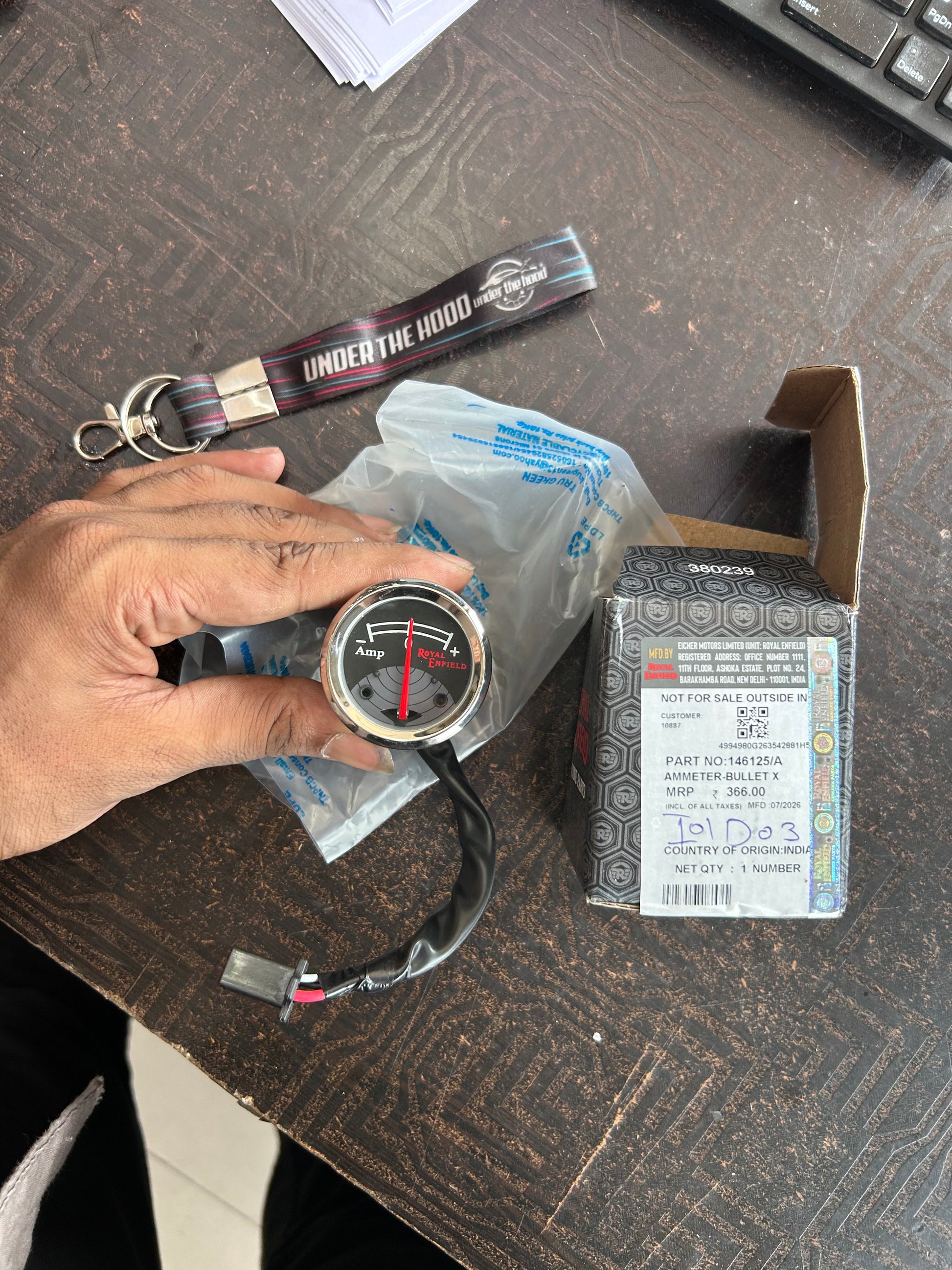

• Grey-face instrument design
• Current genuine part number: 146125/A
• Base parts-book number: 146125
• Used in the headlamp-casquette instrument opening
• Quantity normally required: one

What This Product Is Not

• Not a speedometer
• Not a voltmeter
• Not the complete headlamp casquette
• Not the ammeter rubber mounting ring
• Not a wiring loom or adapter harness
• Not automatically compatible with every Royal Enfield that has a round ammeter
• Not confirmed for UCE, J-Series, Himalayan, 450 or 650 platforms

Key Features

• Genuine Royal Enfield electrical instrument
• Classic grey-face appearance
• Provides charge and discharge indication
• Correct factory-style round instrument profile
• Suitable for restoration and replacement of a failed original ammeter
• Direct replacement where the model catalogue specifies 146125/A
• Can be used in other compatible old-model applications only after connector and wiring verification

Confirmed Model Family Compatibility

Indian Catalogue / Seller-Reported Applications

Fitment Requiring Verification

• Bullet Standard, Deluxe, Machismo, Lightning and Campus variants not carrying the same original instrument
• Electra 5S electric-start motorcycles
• Motorcycles that have been converted from two-pin to four-pin wiring
• Motorcycles fitted with an aftermarket wiring loom
• Restored motorcycles whose original instruments have previously been replaced
• Export motorcycles with market-specific speedometer and ammeter assemblies

Not Compatible / Do Not Order For

• Thunderbird 350
• Classic 350 UCE
• Bullet 350 UCE
• Electra 350 UCE
• Classic 500 EFI / UCE
• Bullet 500 EFI / UCE
• Classic 350 Reborn
• Bullet 350 J-Series
• Meteor 350, Hunter 350 or Goan Classic 350
• Himalayan 411, Scram 411, Himalayan 450 or Guerrilla 450
• Continental GT 535
• Interceptor 650, Continental GT 650 or other Royal Enfield 650 models

Part Number and Alternate Number Notes

Critical Identification Checks

Before ordering, compare all of the following with the existing motorcycle:

• Part number printed on the old unit or packaging
• Grey-face dial appearance
• Instrument diameter and mounting profile

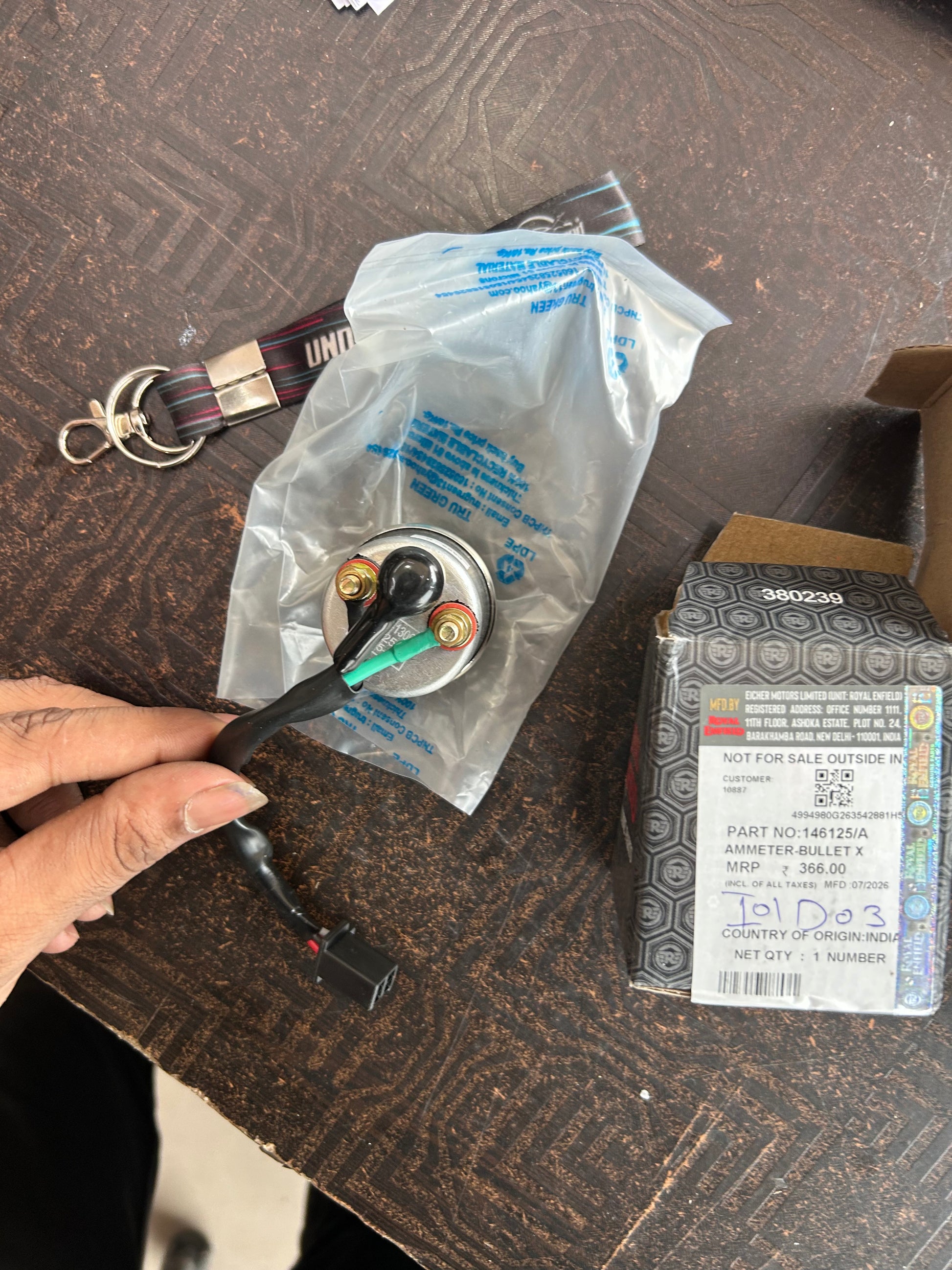

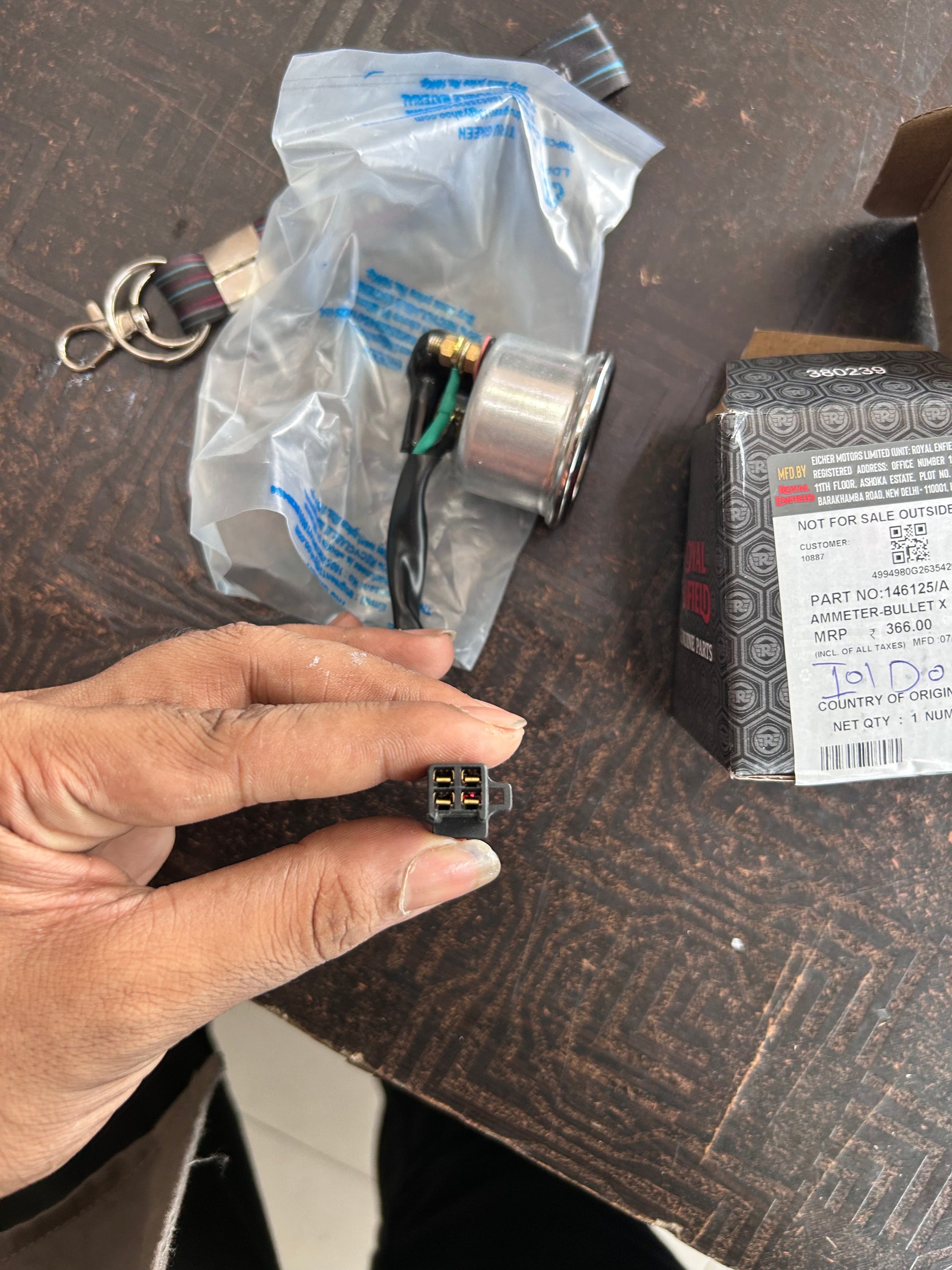

• Connector block shape and colour
• Number and arrangement of electrical terminals
• Illumination-bulb holder and wiring
• Headlamp-casquette opening and rubber mounting ring
• Motorcycle year, gearbox and starting configuration

What Does an Ammeter Do?

The ammeter shows the direction of electrical current flow in the motorcycle. Movement toward the charge side generally indicates current from the charging system, while movement toward discharge indicates battery current being consumed. It is a basic indication device and is not a precision battery-voltage display.

Common Symptoms of a Faulty Ammeter

• Needle remains permanently stuck
• Needle movement is erratic
• No charge or discharge movement is displayed
• Internal illumination does not work after the bulb and wiring are checked
• Loose or overheated terminals are present
• The face, glass or housing is damaged
• The original instrument has failed during electrical-system repair

What You Will Receive

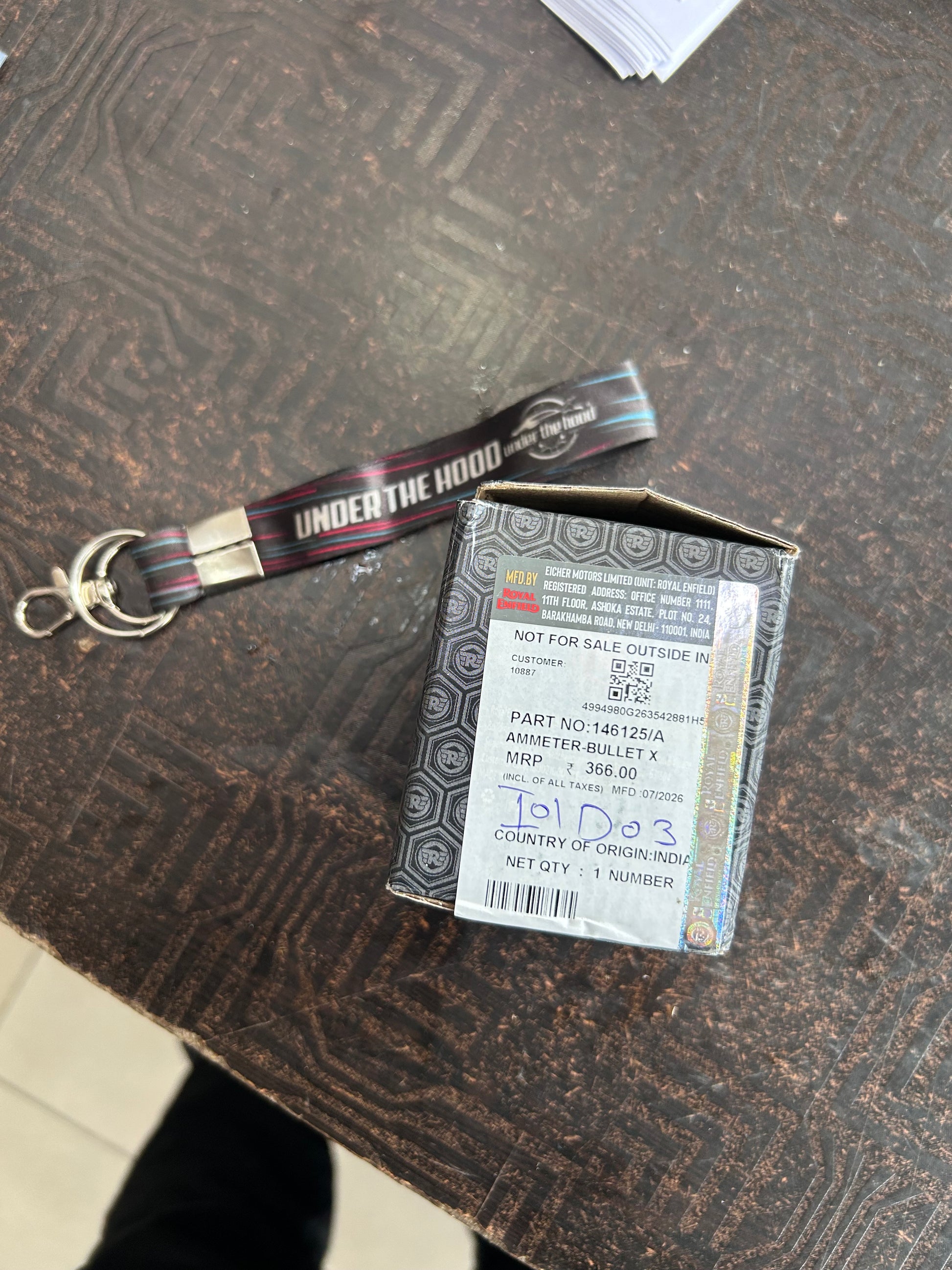

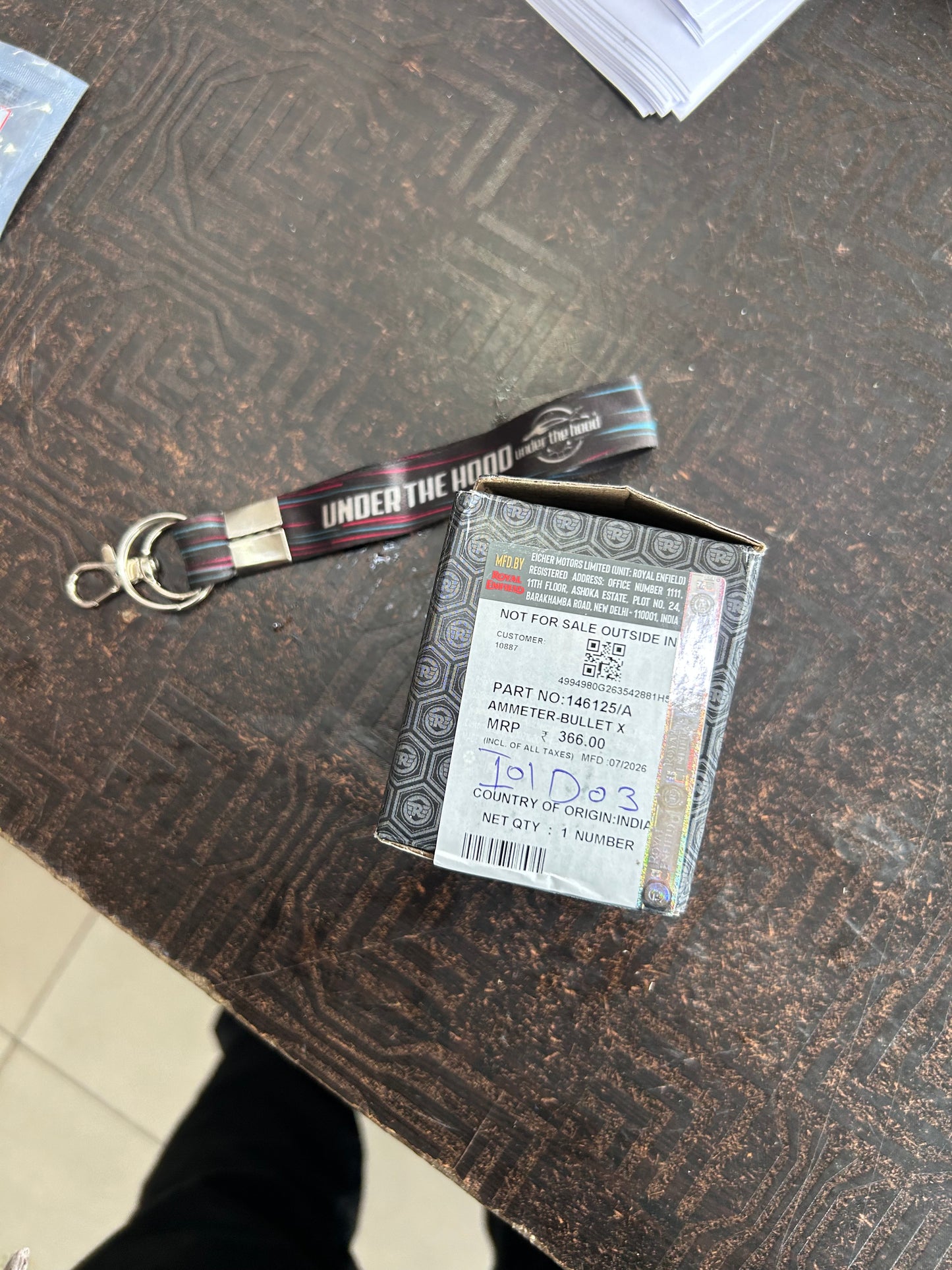

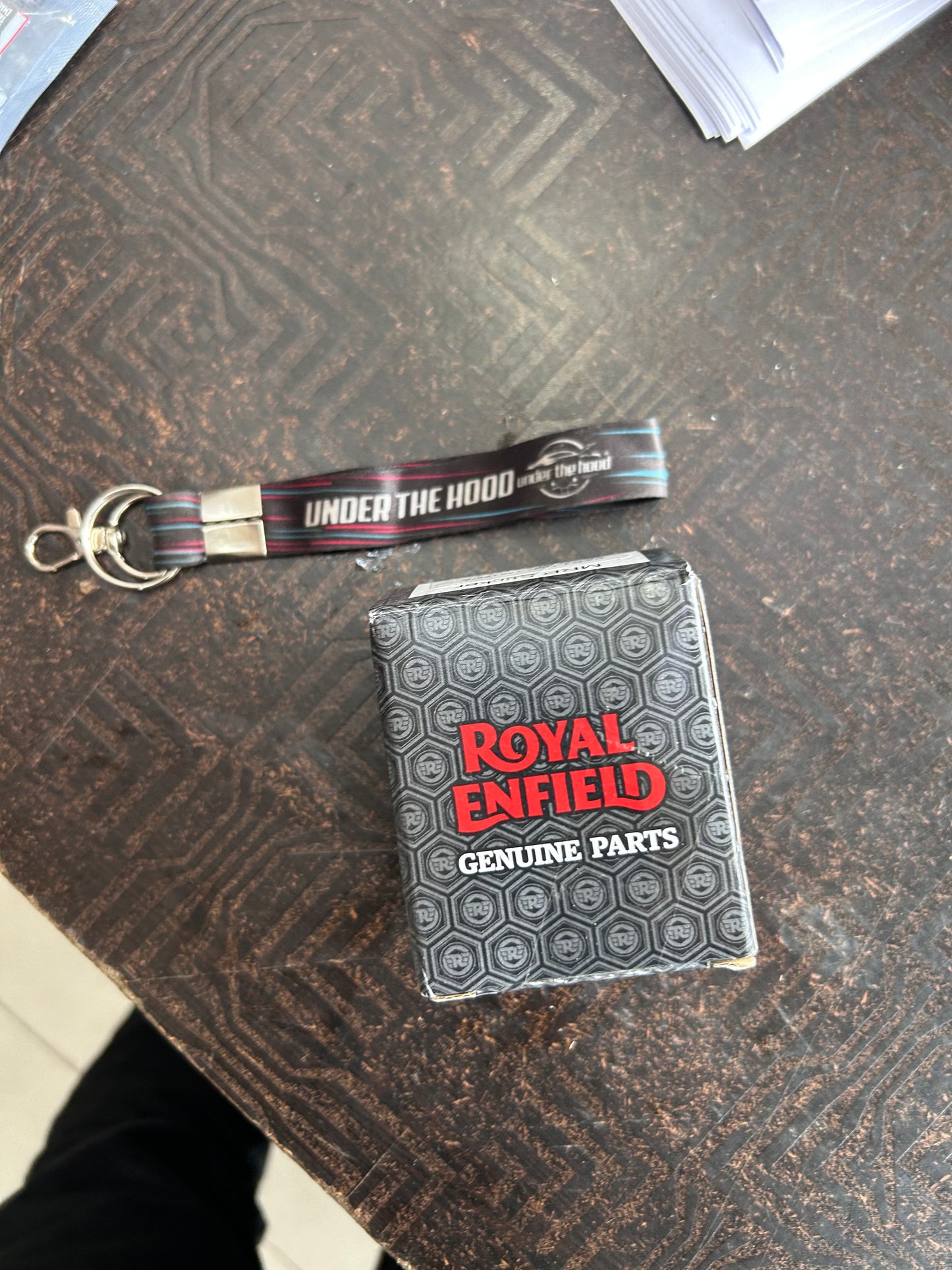

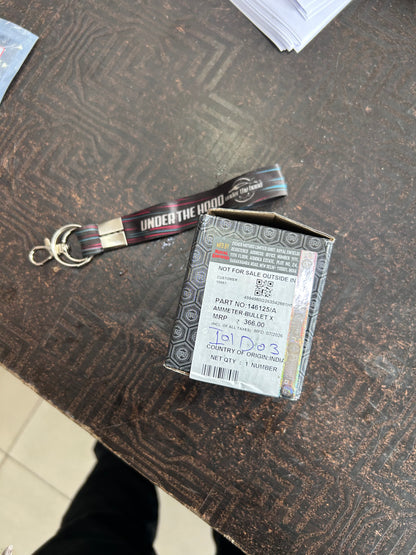

1 × Genuine Royal Enfield Grey-Face Ammeter – 146125/A

The rubber mounting ring, bulb, bulb holder, wiring loom, adapter connector, speedometer, headlamp casquette and other electrical components are not included unless physically present inside the sealed Royal Enfield pack.

Installation Note

• Disconnect the battery before working on the instrument wiring.
• Photograph and label the original connections before removal.
• Compare the new and old connector arrangements.
• Inspect the wiring loom for overheated terminals, corrosion or previous modifications.
• Do not connect wires by colour alone when the loom has been altered.
• Use the correct wiring diagram for the exact motorcycle.
• Transfer the mounting rubber only if it is undamaged and correct for the new instrument.
• Confirm the instrument is securely seated in the casquette.
• Reconnect the battery and verify correct needle movement and lighting.
• Investigate the charging system separately if the reading remains abnormal.

Electrical Return-Prevention Note

This is an electrical instrument for older motorcycles. Before opening, connecting or installing it, confirm the exact part number, dial colour, connector, terminal layout, instrument diameter and motorcycle wiring. Electrical parts that have been connected, fitted, modified, marked or tested may not be eligible for return under the applicable store policy.

Frequently Asked Questions

Is 146125/A a genuine Royal Enfield part?

Yes. Current genuine-parts references describe it as Ammeter – Bullet X.

What colour is the instrument face?

Specialist Royal Enfield references describe part 146125 as the later grey-faced ammeter.

Does it fit old Bullet 350 and Bullet 500?

It is listed for broad older Bullet 350 and 500 model families, but the existing connector, dial and wiring must be checked because several ammeter versions were used over the years.

Does it fit Electra X 500?

Yes. The specialist fitment guide includes Electra X 500 models from 2004 to 2008.

Does it fit Electra 4S and 5S?

Indian seller data reports Electra 4S KS, Electra 4S ES and Electra 5S KS applications. Confirm the connector and original instrument before ordering.

Does it fit Thunderbird 350?

No. The specialist fitment guide specifically excludes Thunderbird 350.

Does it fit Classic 350 UCE or Classic 500 EFI?

No confirmed fitment. Those motorcycles use different instrument references and wiring arrangements.

Is 540004/A the same part?

The retired-model catalogue lists 540004/A as an alternate ammeter number, but specialist references associate it with a white-faced version. Do not substitute it when the customer requires an exact grey-face cosmetic match without checking the unit.

Does the rubber mounting ring come with it?

Do not assume so. The rubber ring is a separately listed component under part number 140248.

Can it fix a charging problem?

An ammeter only indicates current flow. A charging fault may be caused by the alternator, regulator-rectifier, battery, wiring or connections and requires separate diagnosis.
