Royal Enfield Shotgun 650 Genuine RH Foot-Control Service Component | RAE01224/B

Genuine Royal Enfield Shotgun 650 RH Foot-Control Service Component – RAE01224/B

Royal Enfield Part Number: RAE01224/B

RAE01224/B is a genuine Royal Enfield individual service component associated with the Shotgun 650 right-hand rider foot-control / control-plate assembly.

This part belongs to the RH / rear-brake side rider-control system associated with the complete KAE00015/A RH Control Plate Assembly. It should be ordered by the exact OEM part number RAE01224/B, because the currently available public exploded-parts references do not expose a sufficiently reliable standalone component description to justify renaming it by appearance.

Accuracy note for buyers: this listing intentionally uses the exact Royal Enfield SKU and verified assembly context instead of guessing whether the individual component is a specific spacer, pin, collar, washer, sleeve or other piece of hardware. Match RAE01224/B against the motorcycle VIN, dealer EPC, genuine package label or workshop requirement before installation.

Verified Application

RAE01224/B is associated with the component-level service breakdown of the Shotgun 650 KAE00015/A RH control-plate assembly.

Which Side Is RH?

RH / Right Hand means the motorcycle's right side when viewed from the rider's normal seated position.

On the Shotgun 650 this is the rear-brake pedal / right rider-footrest side. Do not order this SKU for the left-hand gear-shift side merely because a small service component appears visually similar.

RAE01224/B Is Not the Complete KAE00015/A Assembly

KAE00015/A is the Shotgun 650 RH Control Plate Assembly. RAE01224/B is one individual genuine service component associated with that RH rider-control system.

Why the Exact SKU Matters

The Shotgun 650 RH rider-control assembly contains several small hardware and moving components located close together. Some of these can look very similar when removed from the motorcycle.

Ordering by appearance alone can lead to the wrong part because individual service pieces may differ in:

• diameter,
• length,
• shoulder or collar geometry,
• thread specification,
• surface treatment,
• location within the brake-pedal / footrest assembly,
• or production revision.

For RAE01224/B, the safest method is to match the full part number including the /B suffix.

Public EPC Description Limitation

Royal Enfield's publicly indexed Shotgun 650 foot-control catalogues clearly identify surrounding major components such as the RH control plate, brake pedal, pivot bush and rider footrest. However, they do not currently expose a sufficiently reliable standalone description for RAE01224/B.

For that reason, this listing does not invent a physical component name. The product is sold as the exact genuine Royal Enfield service SKU RAE01224/B for the verified Shotgun 650 RH control-plate / foot-control service context.

Shotgun 650 RH Foot-Control System

The Shotgun 650 right-side rider-control system combines several separately serviceable parts around the rider footrest and rear brake pedal.

The system includes components such as:

• RH control plate,
• RH rider footrest,
• rear brake pedal,
• pivot bush / pivot hardware,
• return spring,
• footrest spring,
• rear brake master-cylinder related mounting components,
• and additional small service hardware identified by individual OEM numbers.

RAE01224/B should be treated as one of those exact-part-number service items, not as a complete right-side rearset or complete brake-control kit.

Not the Bare RH Control Plate

If the large metallic-black mounting plate itself is damaged, the separately catalogued reference is RAE00764/C – RH Control Plate, Metallic Black on applicable Shotgun 650 configurations.

RAE01224/B is not RAE00764/C.

Not the Rear Brake Pedal

The Shotgun 650 painted rear brake pedal is separately catalogued under the RAE00771 family.

If the pedal itself is bent, scraped or damaged after a fall, order the correct brake-pedal part number rather than RAE01224/B unless the workshop has also identified RAE01224/B as requiring replacement.

Not the RH Rider Footrest

The complete Shotgun 650 right-hand rider footrest assembly is separately catalogued as KAE00017/A.

RAE01224/B should not be advertised or purchased as the complete footpeg.

Shotgun 650 vs Classic 650

The bare metallic-black RH control plate RAE00764/C is also used in certain Classic 650 applications, but that does not prove that every small service component associated with the Shotgun 650 KAE00015/A assembly is shared with the Classic 650 complete assembly.

This listing therefore guarantees only the Shotgun 650 RH service context for RAE01224/B.

Classic 650 fitment is not claimed without exact VIN-specific EPC confirmation for RAE01224/B.

Other 650 Models

Do not assume compatibility simply because another Royal Enfield motorcycle uses the 648cc Twin engine.

This listing does not automatically claim fitment for:

• Super Meteor 650
• Classic 650
• Bear 650
• Interceptor 650
• Continental GT 650
• Bullet 650 or other future 650 variants

Rider-control position, control plates, pedals, spacers, bushes and mounting hardware vary between model families.

When Might RAE01224/B Be Needed?

This exact service SKU may be required when:

• the Shotgun 650 RH control-plate assembly is being repaired component-by-component,
• the complete KAE00015/A assembly is not being replaced as one unit,
• a small RH foot-control component is missing after disassembly,
• accident repair requires replacement of individual right-side control hardware,
• a dealer EPC / workshop estimate specifies RAE01224/B,
• or the genuine package / existing component reference identifies RAE01224/B.

Accident / Fall Inspection

If the motorcycle has fallen on the right side, do not replace one small service component without inspecting the complete rider-control and rear-brake area.

Inspect:

• RAE00764/C RH control plate,
• KAE00017/A RH rider footrest,
• RAE00771 brake pedal,
• 148250 pivot bush and associated pivot hardware,
• brake-pedal return spring,
• rider-footrest spring and pivot,
• rear brake master cylinder and linkage,
• brake-light switch operation,
• mounting bolts and threaded holes,
• and the motorcycle frame mounting points.

A visibly minor bend or impact can affect alignment elsewhere in the assembly.

Part Details

What You Receive

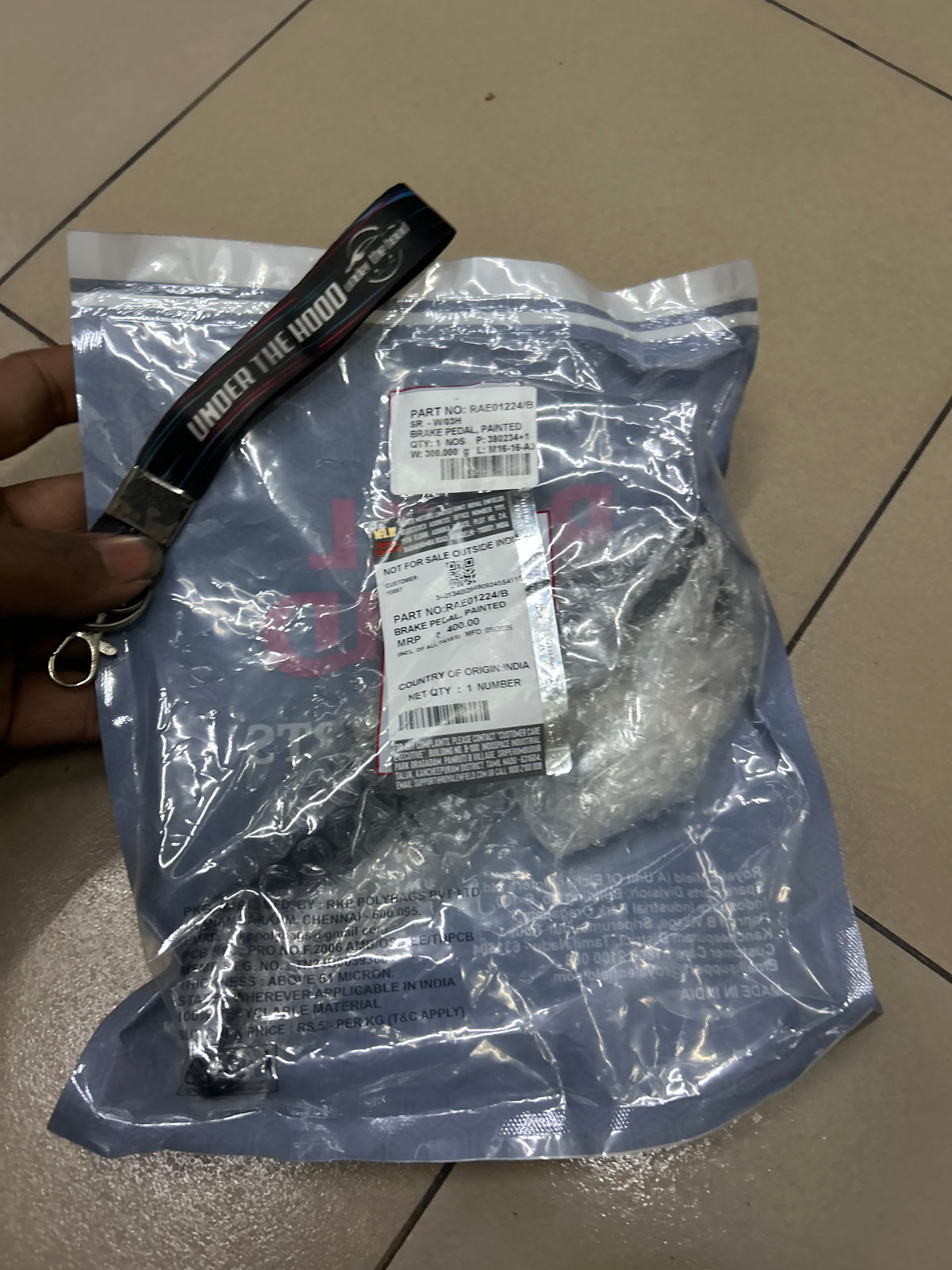

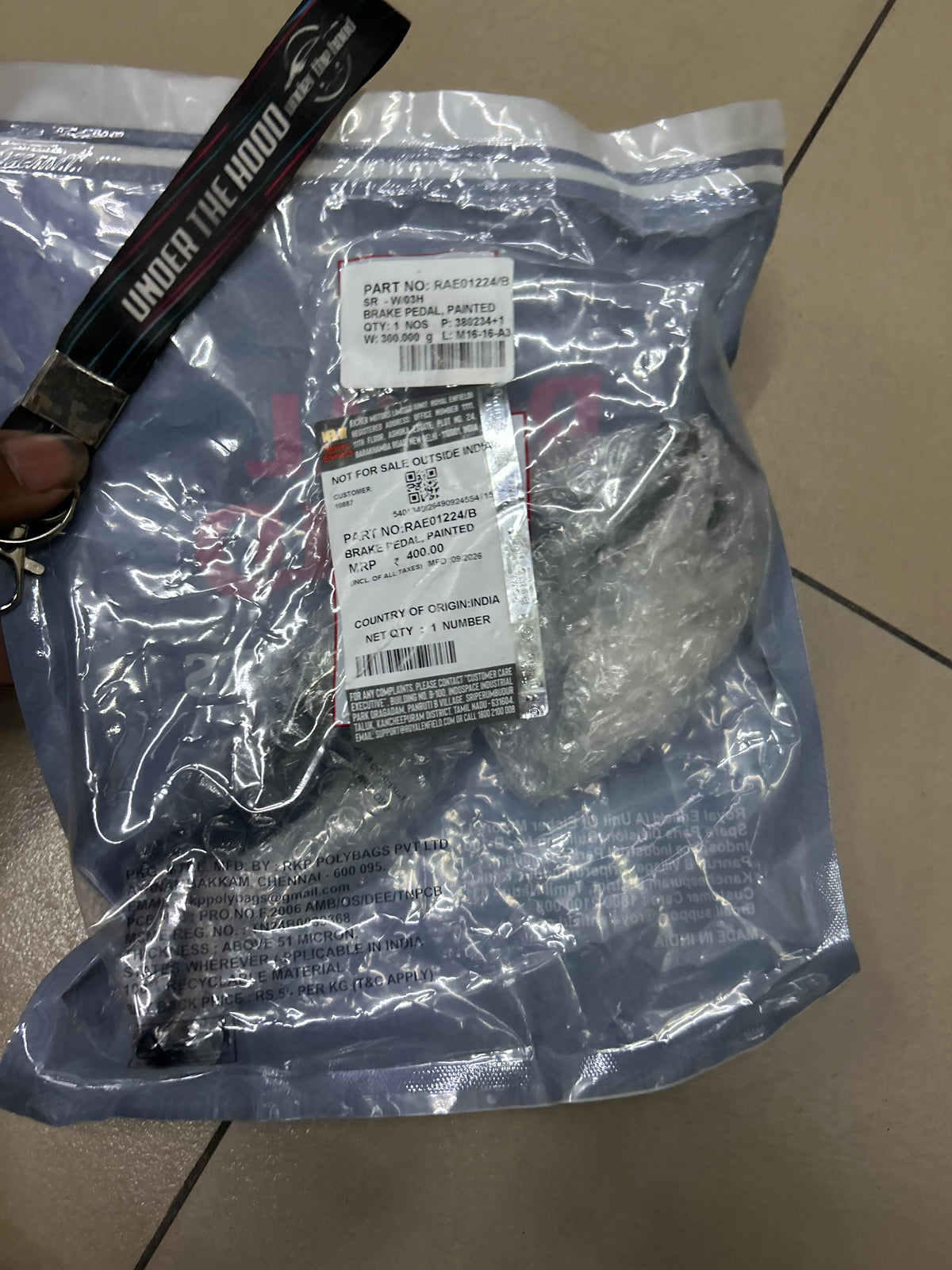

• 1 x Genuine Royal Enfield service component supplied under part number RAE01224/B

No additional components are assumed to be included. The complete KAE00015/A control-plate assembly, RAE00764/C bare plate, brake pedal, rider footrest, bushes, springs, master cylinder and mounting hardware are separate unless physically included in the genuine sealed package.

Installation & Safety Guidance

• Match RAE01224/B against the current VIN-specific EPC or genuine package before installation.
• Record the original component position and orientation before dismantling the RH foot-control assembly.
• Do not substitute a visually similar washer, spacer, bush, pin, collar or fastener without an exact parts match.
• Inspect every transferred foot-control component for bending, cracking, thread damage or excessive wear.
• Use the correct Royal Enfield assembly sequence and tightening specifications.
• After assembly, confirm the RH rider footrest is secure.
• Confirm the rear brake pedal moves freely, returns correctly and does not bind.
• Check rear-brake operation and brake-light-switch activation before road use.
• Professional installation is recommended because this part belongs to the rider-control / rear-brake-side assembly.

Before Ordering

Please confirm all of the following:

1. Your motorcycle is a Royal Enfield Shotgun 650.
2. The repair is on the RH / rear-brake side rider-control assembly.
3. Your dealer EPC, workshop estimate, genuine packet or required-part list specifies RAE01224/B.
4. You need this individual service SKU rather than the complete KAE00015/A assembly.
5. You have not selected the part merely because another small component looks similar.

Frequently Asked Questions

Q. What is Royal Enfield RAE01224/B?
A. It is a genuine Royal Enfield individual service component associated with the Shotgun 650 RH rider foot-control / control-plate assembly. The exact public standalone component name is not reliably exposed, so this listing uses the precise OEM SKU rather than guessing the hardware type.

Q. Does RAE01224/B fit the Shotgun 650?
A. Yes, it is supported in the Shotgun 650 RH control-plate service context. Match the exact SKU through the motorcycle VIN / EPC before installation.

Q. Is this the complete KAE00015/A RH control-plate assembly?
A. No. RAE01224/B is an individual component, while KAE00015/A is the complete RH control-plate assembly reference.

Q. Is this RAE00764/C?
A. No. RAE00764/C is the separately catalogued bare RH metallic-black control plate.

Q. Is this the rear brake pedal?
A. No. The painted Shotgun 650 rear brake pedal is separately catalogued under the RAE00771 family.

Q. Is this the right rider footrest?
A. No. The complete RH rider footrest assembly is separately catalogued as KAE00017/A.

Q. Is this a pivot bush?
A. Do not assume so. 148250 is separately catalogued as a pivot bush in the foot-control system.

Q. Does it fit Classic 650?
A. Classic 650 fitment is not guaranteed in this listing. Although some surrounding control-plate parts are shared, exact RAE01224/B fitment must be confirmed by the Classic 650 VIN-specific EPC.

Q. Does it fit Super Meteor 650?
A. No fitment is claimed without exact RAE01224/B EPC confirmation.

Q. Which side does it belong to?
A. The verified service context is the RH / right-hand / rear-brake side of the Shotgun 650 rider-control assembly.

Q. Why does this listing not call it a bolt, spacer, washer or bush?
A. Because the publicly accessible EPC information does not identify a reliable standalone noun for RAE01224/B. Exact-SKU accuracy is safer than inventing a component description.

Q. Can I substitute a similar-looking hardware piece?
A. No. Use the exact Royal Enfield service part specified for the repair because small foot-control components can differ in dimensions, finish and function.

Q. Is professional installation recommended?
A. Yes. The component belongs to the rider-control / rear-brake-side assembly, so correct installation and final brake-pedal / footrest checks are important.
