Royal Enfield Silver Airfly Evo Engine Guard – KXA00004

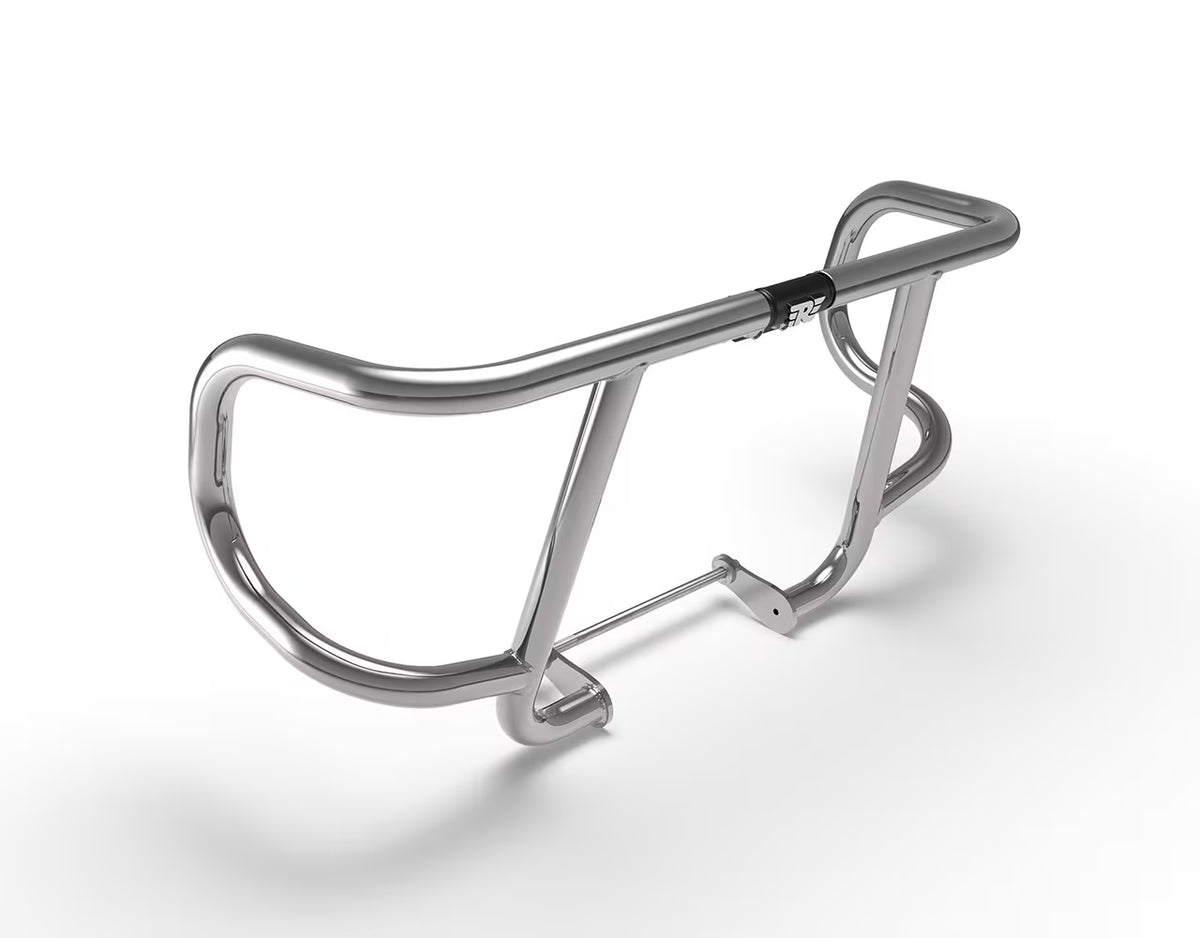

Add genuine Royal Enfield protection and a clean stainless-steel finish to your compatible 350 motorcycle with the KXA00004 Silver Airfly Evo Engine Guard. The lighter, simplified Airfly Evo design uses 32 mm stainless-steel tubing and is precisely engineered for the mounting points of selected Royal Enfield J-platform motorcycles.

The two-piece left-and-right guard assembly adds a protective barrier around key engine areas while retaining an open, modern appearance. Its silver stainless-steel construction is corrosion-resistant and carries Royal Enfield branding on the upper bars.

Confirmed fitment: Meteor 350, current Classic 350, All-New Bullet 350 and Goan Classic 350. This part is not listed for Hunter 350, older UCE Classic/Bullet models, Himalayan, Interceptor/Continental GT or Royal Enfield 650 models.

What This Product Is

• Genuine Royal Enfield Silver Airfly Evo Engine Guard kit
• Exact manufacturer part number: KXA00004
• Two-piece left-hand and right-hand engine guard assembly
• Lighter and simpler Evo version of the Airfly guard design
• Constructed from 32 mm stainless-steel tubing
• Silver stainless-steel finish with Royal Enfield branding
• Designed for the motorcycle's existing frame/cradle mounting points
• Supplied with the top mount, brace bar and model-appropriate fixing hardware

Key Features

• Helps create a protective barrier around key engine areas during minor low-speed contact or a stationary fall
• 32 mm stainless-steel tubing provides a strong, corrosion-resistant structure
• Stainless steel remains corrosion-resistant even where light surface scratching occurs, although normal care is still required
• Open Airfly Evo layout avoids the heavier visual appearance of a fully enclosed crash cage
• Precisely engineered genuine-accessory mounting arrangement
• Separate left-hand and right-hand guard sections connect through a reinforced top mount and brace
• Royal Enfield branding appears on the upper bars
• Compatible with a genuine sump guard when installed using the applicable fitting-instruction washer arrangement
• Official fitting time is approximately 20 minutes for a trained installer with the correct tools
• Manufacturer-listed three-year warranty, subject to applicable Royal Enfield terms

Confirmed Compatibility

Royal Enfield's current India product page lists all four models above. The original fitting instruction identifies BSVI Meteor and Classic motorcycles with the specified frame/VIN family; newer Bullet 350 and Goan Classic 350 applications should be fitted using the current model-specific dealer instructions.

Not Compatible / Do Not Assume Fitment

• Hunter 350 / HNTR 350
• Classic 350 UCE, Classic 500 UCE or Electra
• Older Bullet 350/500 UCE, Standard or Electra variants
• Thunderbird or Thunderbird X
• Himalayan 411, Himalayan 450, Scram 411, Scram 440 or Guerrilla 450
• Interceptor 650, Continental GT 650, Super Meteor 650, Shotgun 650, Bear 650, Classic 650 or Bullet 650
• Any motorcycle with accident-damaged, welded, modified or non-standard frame/cradle mounting points

Do not order solely because another motorcycle uses a 350 cc engine or because the guard appears visually similar. Engine-guard fitment depends on the exact frame, lower cradle, exhaust-header position, cable routing and mounting-hole geometry.

What You Will Receive

Royal Enfield documents two valid top-mount hardware revisions. A Style A kit uses four M6 × 16 and two M6 × 12 bolts. A Style B kit uses two M6 × 20, two M6 × 16 and two M6 × 12 bolts. The supplied kit may contain either approved arrangement; do not mix the two layouts or replace hardware with unverified bolts.

Not Included

• Motorcycle or engine components
• Genuine accessory sump guard
• Auxiliary/fog lights or light-mounting clamps
• Tools, thread-repair parts or workshop consumables
• Installation labour
• KXA00003 black Airfly Evo Engine Guard

KXA00004 Silver Versus KXA00003 Black

KXA00004 and KXA00003 are colour/finish alternatives of the same Airfly Evo design family. Confirm the exact SKU before opening because the finish is a buyer-selection issue, not a fitment defect.

Technical Details

Protection and Use Note

An engine guard can help keep parts of the motorcycle away from direct ground contact in some low-speed situations, but it cannot prevent every type of damage. The result depends on impact speed, direction, surface, motorcycle load and what the guard contacts.

• It is not a guarantee against engine, chassis, tank, exhaust, handlebar or body-panel damage.
• It is not designed as a stunt cage, towing point, lifting point or tie-down anchor.
• It does not replace a sump guard for protection beneath the engine.
• Do not drill, cut, heat, bend or weld the guard to install lights or other accessories.
• After any fall or impact, inspect the guard, frame mounts, fixings, exhaust clearance and cable routing before riding.

Installation Note

Royal Enfield states an approximate fitting time of 20 minutes. Installation requires removal of an original cradle fixing, correct torque application and model-specific clutch-cable routing. An authorised Royal Enfield workshop or qualified motorcycle technician is strongly recommended.

1. Support the motorcycle securely on level ground before beginning work.
2. Confirm the exact model, VIN and KXA00004 kit revision before removing original hardware.
3. Assemble the brace bar to the top mount using the revision-appropriate M6 bolts; tighten to 8 Nm.
4. Attach the left and right guard assemblies to the top mount with the specified M6 bolts and washers; tighten to 8 Nm.
5. Remove the original M10 cradle bolt and nut as directed in the official instructions.
6. Locate the lower guard mount first and confirm adequate clearance from the exhaust-header pipe.
7. Install the supplied M10 × 240 bolt, washers and U-nut; apply 55 Nm to the bolt head rather than the nut.
8. If a compatible genuine sump guard is installed, follow the special instruction that omits the two M10 washers between the cradle and engine guard.
9. Install the top mount to the chassis using the two M8 bolts and nuts; tighten to 25 Nm.
10. Route the clutch cable behind the engine guard and follow the exact model-specific wire-guide arrangement.
11. Check and adjust clutch-cable free play to the applicable Royal Enfield specification.
12. Verify exhaust clearance, cable movement and steering operation before riding.

The published torque values above come from Royal Enfield instruction KXL00074 Issue E for the documented kit family. Always follow the latest instructions supplied with the product and the current motorcycle-specific workshop information if they differ.

Care and Periodic Inspection

• Wash the stainless-steel surfaces with mild automotive shampoo, clean water and a soft cloth.
• Remove mud, road salt, brake dust and chemical contamination promptly.
• Do not use steel wool, harsh acids, abrasive pads or aggressive metal-polishing compounds.
• Dry the guard after washing and wet-weather use to reduce staining and deposits.
• Check all mounting points and fasteners periodically and after a long or rough ride.
• Do not continue riding if the guard is loose, bent, cracked or touching the exhaust, cables or motorcycle body.
• After an impact, have a technician inspect the frame/cradle mounting points before reusing the guard.

Fitment Note / Return Prevention

Before opening or fitting, confirm that your motorcycle is a Meteor 350, current J-series Classic 350, All-New J-series Bullet 350 or Goan Classic 350. Share the complete VIN if the motorcycle's generation is uncertain.

Engine guards are installation-sensitive products. Items showing bolt marks, scratches, bent brackets, cross-threaded fixings, missing hardware, road use, impact, modification or attempted installation on an incompatible motorcycle may not qualify for return, subject to applicable law and the current store policy.

Record one continuous unboxing video showing the sealed parcel, shipping label, Royal Enfield label, both guard assemblies, top mount, brace bar and complete hardware pack. Report a wrong, missing or transit-damaged component within 24 hours with the video and original packaging.

Frequently Asked Questions

1. What is Royal Enfield KXA00004?

It is the genuine silver Airfly Evo Engine Guard kit made from 32 mm stainless-steel tubing.

2. Which motorcycles are officially compatible?

Royal Enfield currently lists Meteor 350, Classic 350, All-New Bullet 350 and Goan Classic 350.

3. Does it fit Meteor 350?

Yes. Meteor 350 is a confirmed application. Follow the Meteor-specific clutch-cable routing during installation.

4. Does it fit Classic 350 Reborn?

Yes. It fits the current J-series/Reborn Classic 350. It is not confirmed for older UCE Classic models.

5. Does it fit the new Bullet 350?

Yes. Royal Enfield lists the All-New J-series Bullet 350. Do not assume fitment on an older UCE Bullet.

6. Does it fit Goan Classic 350?

Yes. Goan Classic 350 is included in the current official compatibility list.

7. Does KXA00004 fit Hunter 350?

No official KXA00004 compatibility is listed for Hunter 350. Do not order it for Hunter 350.

8. Does it fit Interceptor 650 or Continental GT 650?

No. KXA00004 is not the engine guard for the 650 Twin platform.

9. Is this chrome plated?

Royal Enfield identifies the material as stainless steel and the colour as silver. It should be sold as a silver stainless-steel guard, not assumed to be decorative chrome plating.

10. What is the tube diameter?

The guard is manufactured from 32 mm stainless-steel tubing.

11. Is it supplied as one side or both sides?

The kit includes separate left-hand and right-hand guard assemblies plus their centre mounting structure.

12. Is the fitting hardware included?

Yes. The official kit contents include the top mount, brace bar, bolts, nuts and washers required for the documented installation.

13. What is the black version of this guard?

KXA00003 is the black Airfly Evo Engine Guard. KXA00004 is the silver stainless-steel version.

14. Can it be used with a sump guard?

The official instructions include a washer arrangement for installation with a compatible genuine sump guard. The sump guard is not included.

15. Can fog lights be mounted on this engine guard?

No auxiliary-light mounting approval is claimed with this listing. Do not drill or weld the guard; use only a model-approved mounting system.

16. How long does installation take?

Royal Enfield lists approximately 20 minutes for a trained installer with the proper tools.

17. What torque values are shown in the fitting instructions?

The documented kit instructions specify 8 Nm for the M6 assembly fixings, 55 Nm for the lower M10 cradle fixing and 25 Nm for the top M8 fixings.

18. Why is clutch-cable routing important?

Incorrect routing can cause rubbing, tension or poor clutch operation. The cable must pass behind the guard in the model-specific route and free play must be checked.

19. Is there a warranty?

Royal Enfield lists a three-year warranty, subject to regional terms, correct fitment and applicable claim conditions.

20. Can the engine guard be returned after installation?

An installed, marked, damaged or incomplete guard may not qualify for return. Confirm the SKU, model, generation and VIN before fitting, subject to applicable law and the current store policy.
