Royal Enfield Thunderbird 500 ABS BS4 Genuine Instrument Cluster | 1040004/A

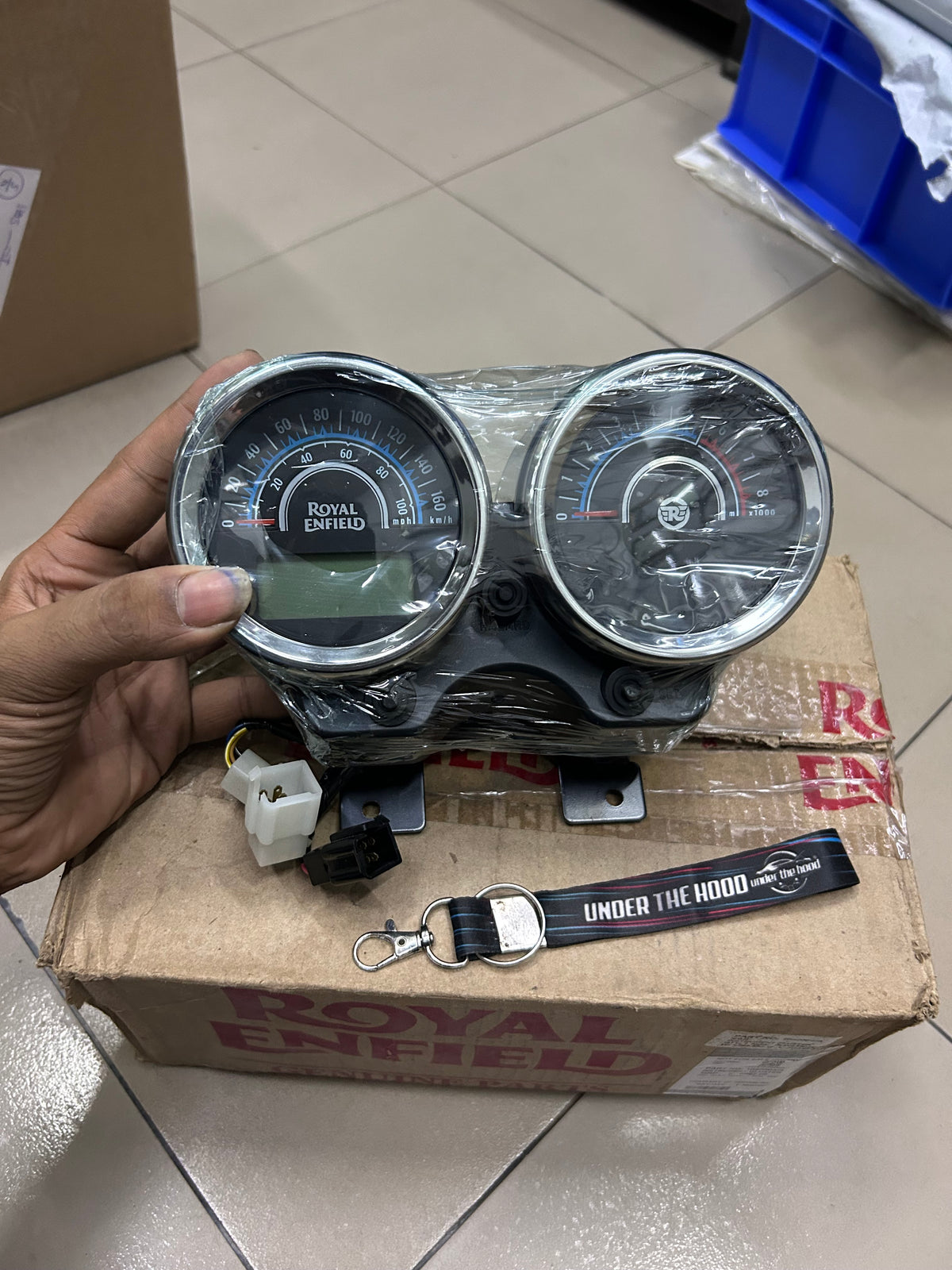

Genuine Royal Enfield Thunderbird 500 ABS BS4 Instrument Cluster – 1040004/A

Royal Enfield Part Number: 1040004/A

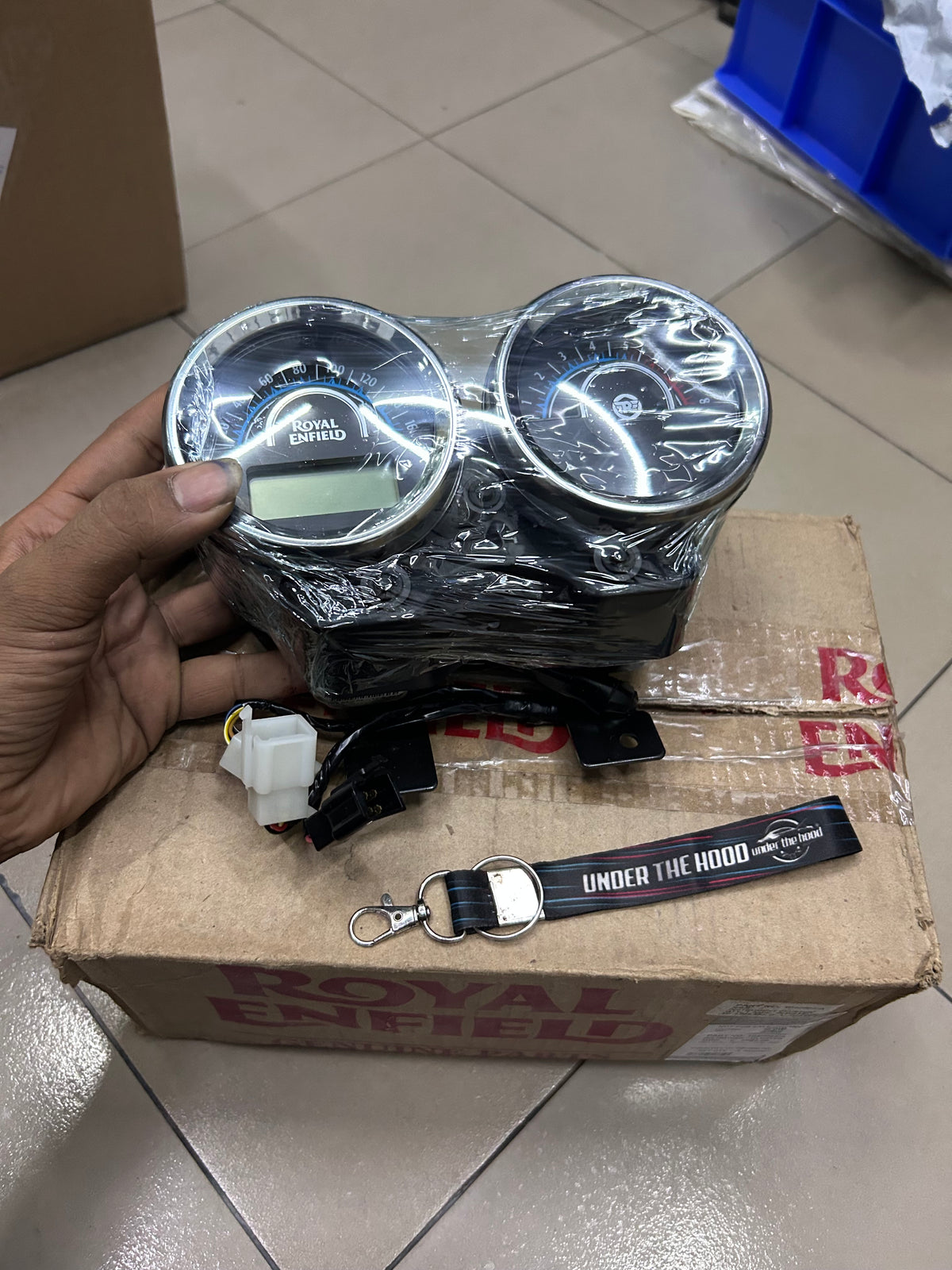

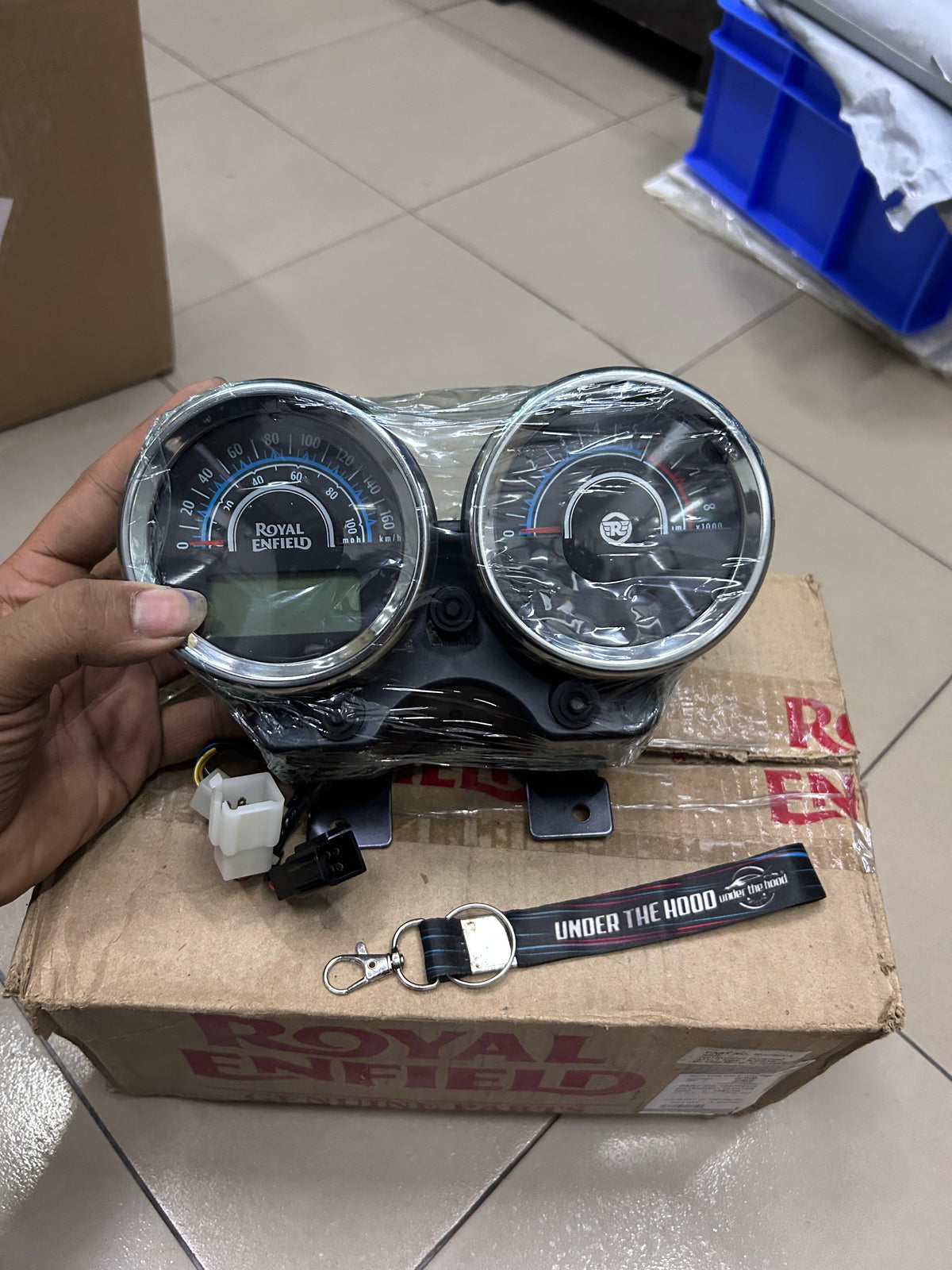

1040004/A is a genuine Royal Enfield instrument cluster / meter console assembly used on the Thunderbird 500 ABS BS4 application.

This is the complete rider-facing meter console, commonly searched for as a Thunderbird 500 speedometer, Thunderbird 500 meter console, Thunderbird 500 instrument panel, Thunderbird 500 digital meter, Thunderbird 500 speedo console or Royal Enfield meter set.

Important: instrument clusters are electrical/electronic, model- and wiring-specific components. A visually similar Royal Enfield cluster should never be treated as interchangeable unless the OEM part number and connector specification match.

Verified Compatibility

This listing is intentionally limited to the verified Thunderbird 500 ABS BS4 application. It does not automatically include Thunderbird 350, Thunderbird X, Classic 500, Bullet 500 or later Royal Enfield models unless their VIN-specific parts catalogue also calls for 1040004/A.

What the Instrument Cluster Does

The instrument cluster is the rider's primary information display. Depending on the factory specification of the motorcycle, the cluster is responsible for displaying vehicle information such as:

• road speed,
• odometer / trip information,
• warning indicators,
• turn-signal indication,
• high-beam indication,
• neutral / system status indications,
• and other model-specific information built into the original Thunderbird 500 console.

No unsupported feature claim is made beyond the functions designed into the original Royal Enfield cluster for this motorcycle.

Common Reasons for Replacement

An instrument cluster may require replacement when:

• the speedometer or display is completely dead,
• the digital display becomes unreadable or intermittent,
• warning lamps stop functioning correctly,
• the housing is cracked after an accident or impact,
• water ingress or internal corrosion causes electrical failure,
• the connector or internal circuit has failed,
• or a workshop has diagnosed the meter console itself as defective.

Before replacing the cluster, the wiring harness, fuses, power supply, ground, speed-sensor circuit and connectors should also be checked. A dead meter is not always caused by the cluster itself.

1040004/A vs 1040004/B

Royal Enfield parts data currently shows both 1040004/A and 1040004/B under the instrument-cluster family.

However, a universal supersession from /A to /B could not be reliably verified. Therefore this listing remains specifically for 1040004/A.

If the motorcycle's existing cluster, box label or VIN-specific parts catalogue specifies 1040004/B, do not assume that 1040004/A is interchangeable without confirmation.

Part Details

Not a Universal UCE Meter

Royal Enfield used several different instrument clusters across the UCE-era motorcycles. Even when two motorcycles share a similar engine or dashboard style, the meter can differ in:

• connector layout,
• speed-input method,
• warning-light logic,
• ABS/non-ABS indication,
• internal electronics,
• mounting arrangement,
• and software/calibration.

For this reason, do not purchase 1040004/A solely because your motorcycle is a 500cc UCE Royal Enfield.

Thunderbird 500 vs Thunderbird 350

The Thunderbird 350 and Thunderbird 500 use many visually similar chassis and body components, but the electrical and instrument systems can differ by engine, emission generation and ABS specification.

This listing does not claim Thunderbird 350 fitment unless the exact VIN-specific parts catalogue specifies 1040004/A.

Thunderbird 500 vs Thunderbird X 500

The Thunderbird X range uses different styling and can use different electrical/instrument references depending on production specification. This listing should therefore not be treated as automatically compatible with the Thunderbird X 500.

Electrical / Electronic Part Policy

This is an electrical/electronic spare part.

• Please verify the exact part number before ordering.

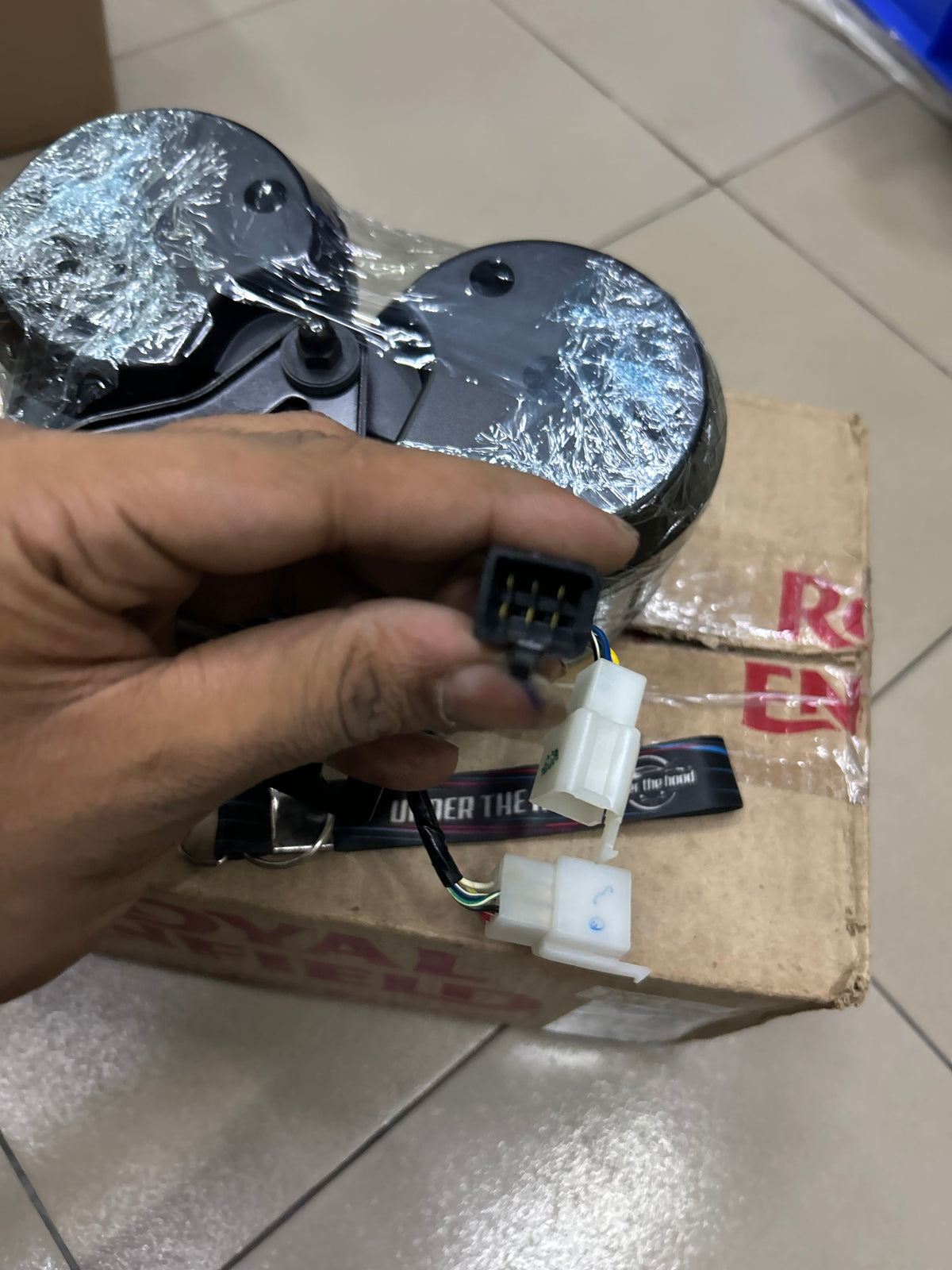

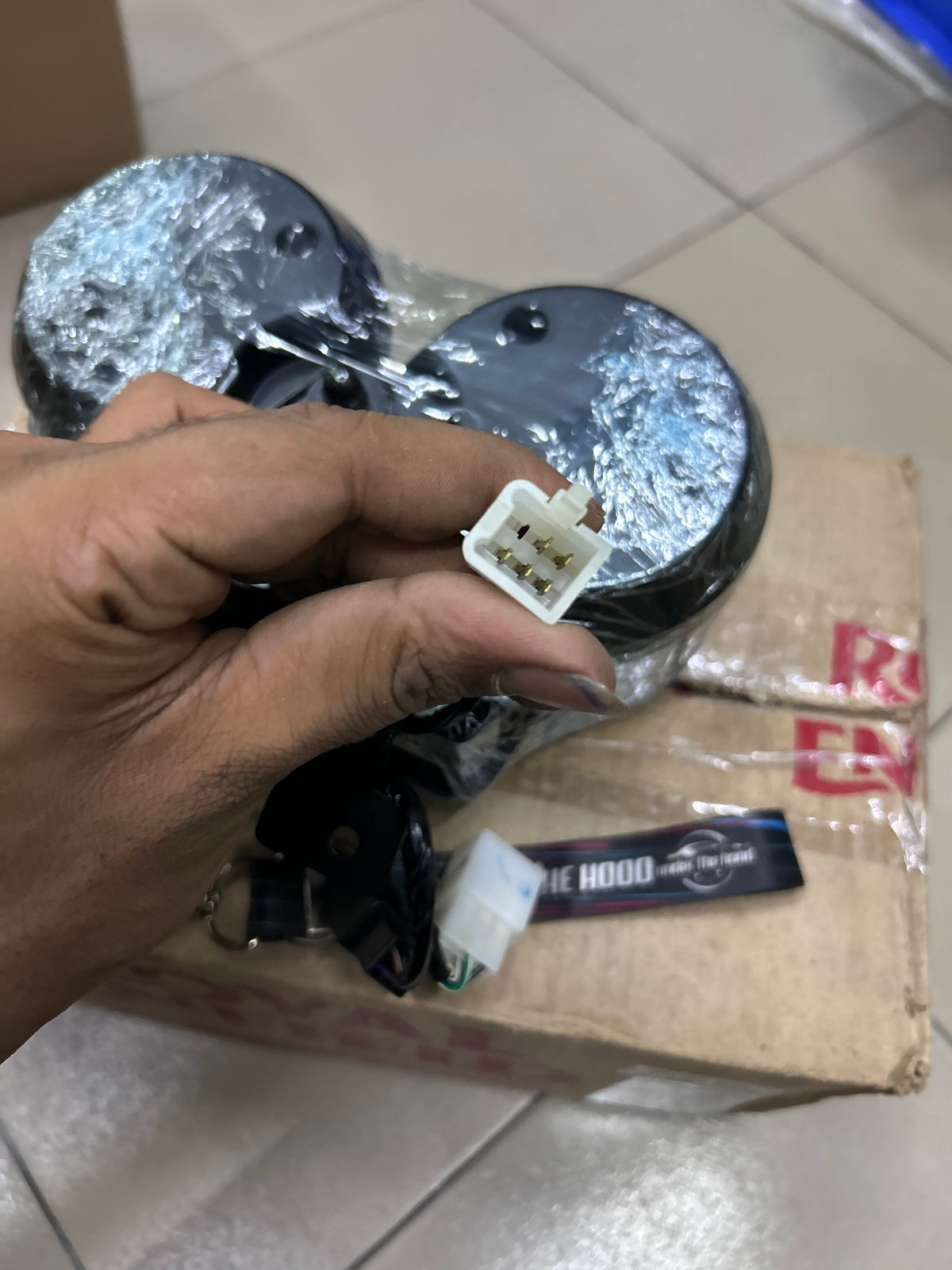

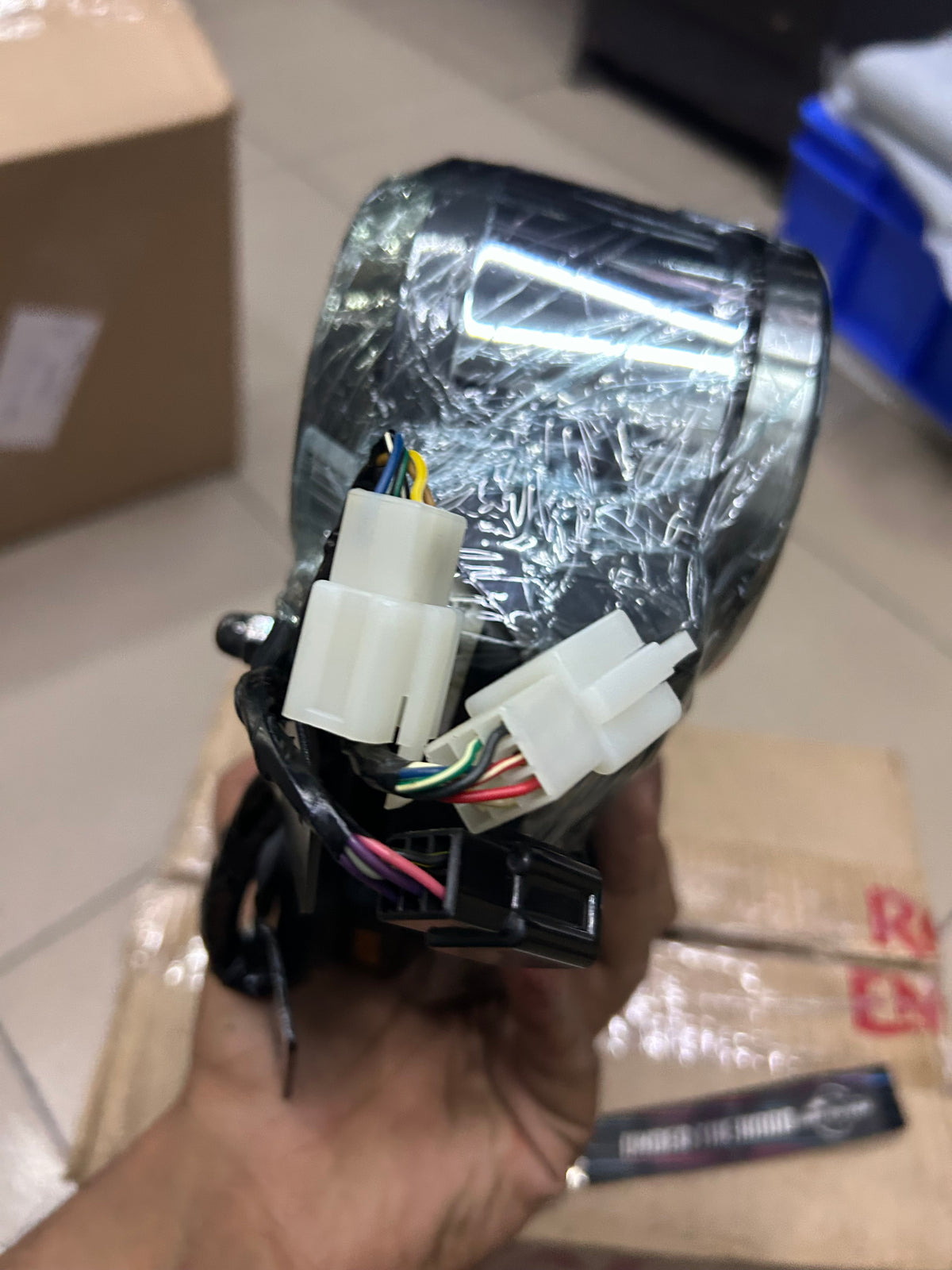

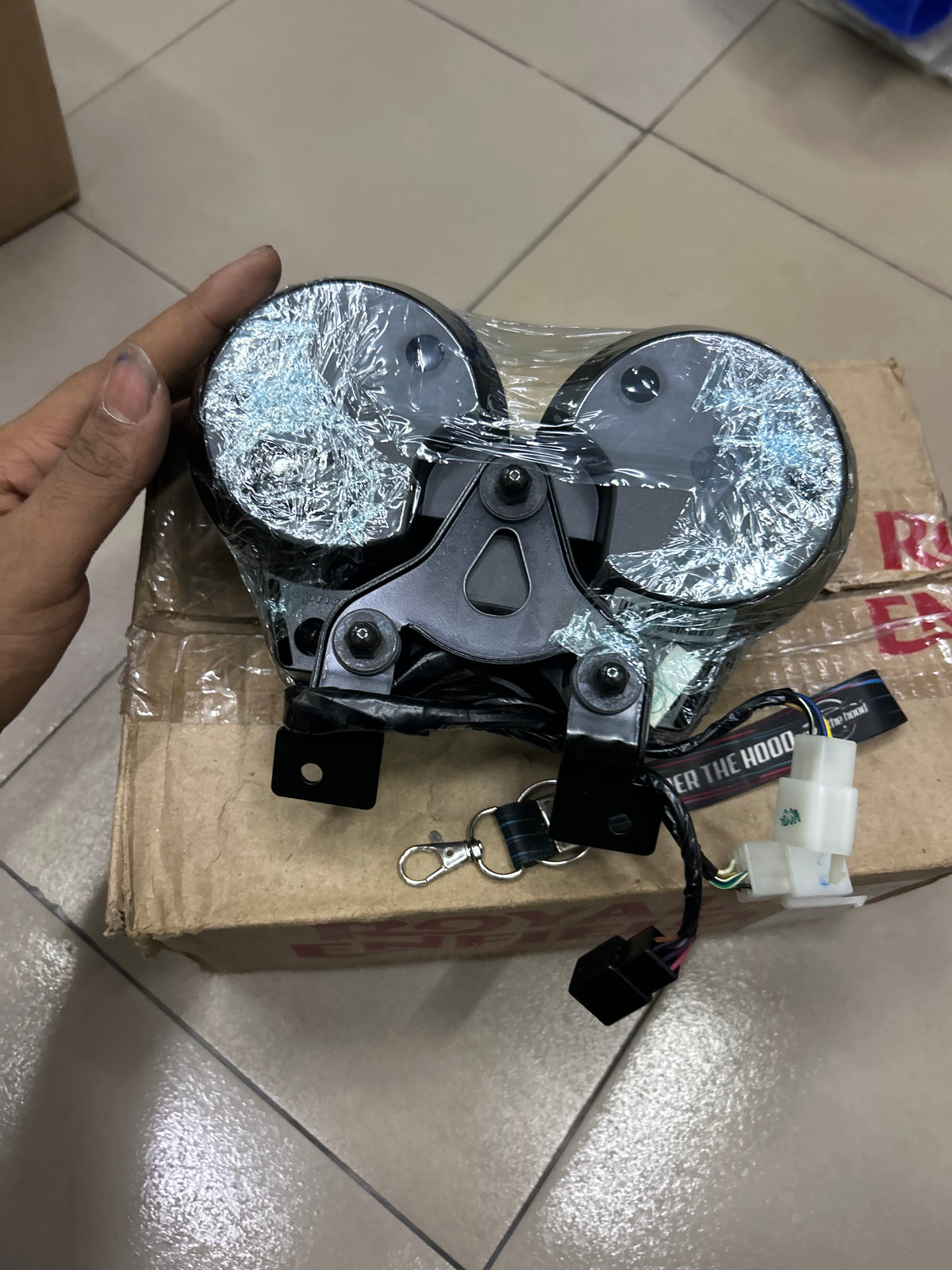

• Compare the connector, rear housing, mounting points and existing part label wherever possible.
• Electrical items are not returnable once opened, installed, plugged in, tested or used.
• Wrong-selection claims are not covered where the supplied part matches the ordered SKU.
• For wrong-item or transit-damage claims, a complete unboxing video is required as per store policy.

Odometer / Programming / Pairing Note

Instrument clusters can contain stored odometer or electronic data depending on the motorcycle architecture.

This listing does not guarantee automatic mileage transfer, odometer synchronisation or plug-and-play programming after replacement. Any required pairing, coding, calibration or mileage procedure should be carried out according to Royal Enfield workshop practice for the exact motorcycle.

Do not attempt unauthorised odometer alteration.

Installation Guidance

• Disconnect the battery before disturbing the instrument-cluster wiring.
• Inspect the existing connector for corrosion, water ingress, overheated terminals or damaged pins.
• Do not force a connector that does not align correctly.

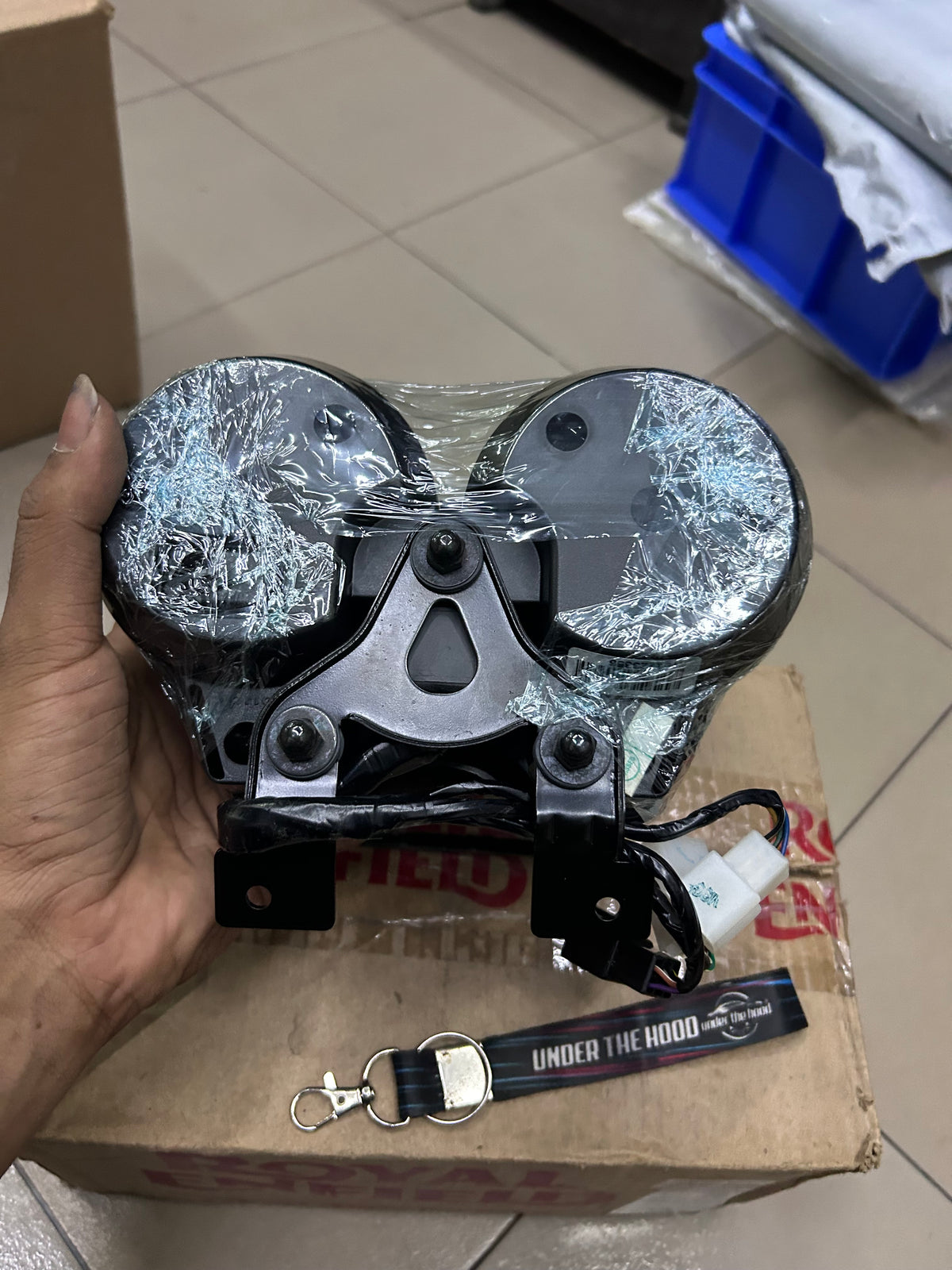

• Confirm the mounting bracket and rubber isolators are undamaged.
• Route the wiring exactly as originally fitted so it cannot rub, stretch or pinch through steering movement.
• After installation, verify the speedometer, warning lamps, indicators and all available cluster functions before road use.
• If the original failure was caused by a wiring short or charging-system fault, correct that issue before fitting the new cluster.

Before Ordering

Please confirm all of the following:

1. Your motorcycle is a Royal Enfield Thunderbird 500 ABS BS4.
2. The required OEM part number is 1040004/A.

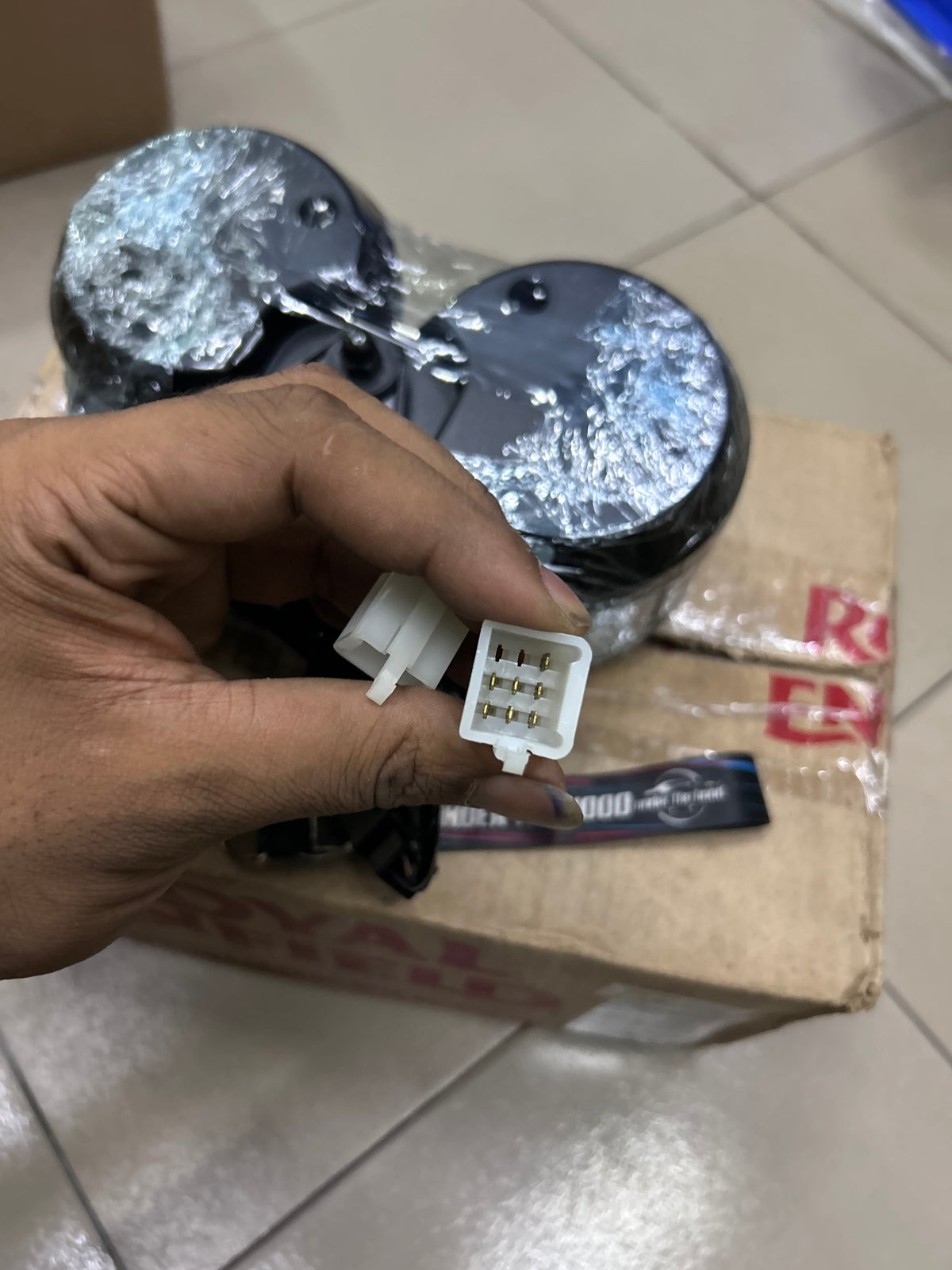

3. The connector and mounting arrangement match your existing meter.
4. The motorcycle has not been modified with a different wiring harness or aftermarket instrument console.

What You Receive

• 1 x Genuine Royal Enfield Instrument Cluster
• OEM Part Number: 1040004/A

Mounting brackets, rubber bushes, wiring harness, speed sensor, switchgear, key set and other surrounding components are not assumed to be included unless physically supplied in the sealed Royal Enfield package.

Frequently Asked Questions

Q. What is Royal Enfield 1040004/A?
A. It is a genuine Royal Enfield instrument cluster / meter console assembly for the verified Thunderbird 500 ABS BS4 application.

Q. Does it fit Thunderbird 500?
A. Yes, this listing is for the Thunderbird 500 ABS BS4 fitment. Exact part-number matching is still recommended.

Q. Does it fit Thunderbird 350?
A. Thunderbird 350 fitment is not claimed unless its VIN-specific parts catalogue specifically calls for 1040004/A.

Q. Does it fit Thunderbird X 500?
A. No blanket fitment claim is made for Thunderbird X 500. Check the exact existing part number and connector.

Q. Is this just the speedometer?
A. It is the complete instrument-cluster / meter-console service part supplied under 1040004/A, not merely a speedometer needle or individual dial component.

Q. What is 1040004/B?
A. /B is another instrument-cluster revision in the same base-number family. A universal /A-to-/B supersession could not be verified, so order the exact suffix required by your motorcycle.

Q. Will my old odometer reading automatically transfer?
A. No such guarantee is made. Odometer/programming behaviour depends on the motorcycle and cluster architecture.

Q. Can I return it after plugging it in to test?
A. Electrical/electronic items are non-returnable once opened, plugged in, tested, installed or used, except where the supplied item is wrong or arrives damaged under the applicable store policy.

Q. My display is dead. Does that definitely mean I need a new cluster?
A. Not necessarily. Power supply, fuses, ground, wiring, connector corrosion, speed-sensor circuit and charging-system faults should be checked before replacing the meter.

Q. Is this a genuine Royal Enfield part?
A. Yes. This listing is for the genuine Royal Enfield service part identified by SKU 1040004/A.
