TVS Apache RTR 160 2V Genuine Chain Sprocket Kit 13T/44T/124L | N9322710

TVS Apache RTR 160 2V Genuine Chain & Sprocket Kit – N9322710

Restore the final-drive system of your TVS Apache RTR 160 2V with the genuine TVS chain and sprocket kit supplied under part number N9322710. TVS parts catalogues identify this kit as the CHAIN & SPROCKET KIT 13/44/124L for the Apache RTR 160 family using this 2-valve drivetrain configuration.

This is the part buyers commonly search for as a TVS Apache 160 chain kit, Apache RTR 160 2V chain sprocket set, RTR 160 chain set, front sprocket rear sprocket chain combo, Apache 160 O-ring chain kit or genuine TVS Apache chain sprocket kit.

Verified Kit Specification

TVS's current official parts-store description identifies N9322710 as a 13/44/124L O-ring chain and sprocket kit. Earlier official TVS catalogue material also identifies a 124-link O-ring chain for the corresponding RTR 160 transmission. Some later Indian kit-content catalogues identify the chain simply as a 124-link chain assembly. Because TVS has revised individual component references over time, N9322710 should be treated as the controlling complete-kit part number rather than ordering solely by an old internal chain sub-part number.

2022 TVS Kit-Content Reference

A TVS Apache RTR 160 2V kit-content catalogue lists the following components under N9322710:

Catalogue revision note: Older TVS catalogue material lists N9112610 as the 124-link chain within this kit family, while later catalogue material lists N9111770. This indicates a component-level catalogue revision. The complete kit number N9322710 remains the safest ordering reference where that kit is specified for the motorcycle.

Verified Compatibility

2V vs 4V – Critical Difference

The words Apache RTR 160 alone are not enough to identify the correct chain kit. TVS sells both 2-valve and 4-valve RTR 160 motorcycles, and their final-drive kits are different.

• N9322710: Apache RTR 160 2V family – 13T front / 44T rear / 124-link chain.
• RTR 160 4V: Uses a different chain-kit family; do not substitute N9322710.

Before ordering, confirm that the motorcycle is the RTR 160 2V and that the required TVS kit number is N9322710. If the bike has been modified with non-standard gearing, compare the installed sprockets and chain specification before purchase.

Why Replace the Chain and Sprockets as a Set?

The drive chain, front sprocket and rear sprocket wear against one another. A heavily worn sprocket can rapidly damage a fresh chain, while a stretched or damaged chain can accelerate wear on new sprockets.

• Restores the matched final-drive wear surfaces together.
• Helps maintain smooth and consistent power transfer.
• Reduces the risk of premature wear caused by mixing new and badly worn drivetrain components.
• Retains the verified 13T / 44T gearing for the N9322710 application.
• Provides the correct 124-link chain length specified for this kit.
• Part-number-based fitment is more reliable than ordering a generic 428/chain-size kit solely by appearance.

Signs the Chain & Sprocket Set May Need Replacement

• Rear sprocket teeth are hooked, pointed, uneven or visibly worn.
• Front sprocket teeth show heavy wear or abnormal tooth profile.
• The chain has developed excessive stretch and repeatedly needs adjustment.
• There are stiff links, seized links or pronounced tight spots.
• Drive-chain adjustment has reached or is approaching the end of its usable range.
• There is abnormal drivetrain noise even after correct cleaning, lubrication and adjustment.
• Power delivery feels jerky because the chain no longer engages the sprockets evenly.
• The chain or sprockets show impact damage, corrosion or other unsafe deterioration.

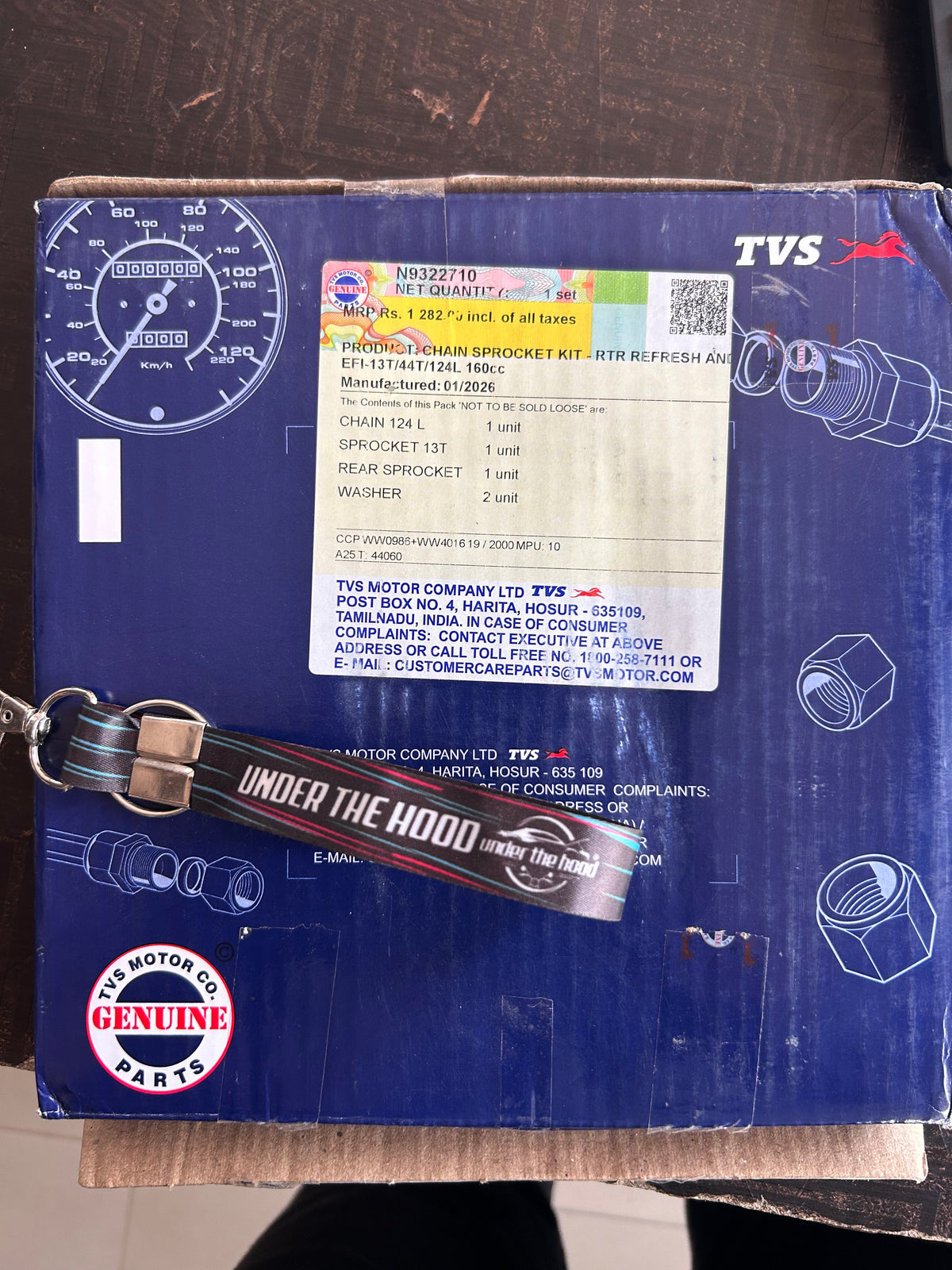

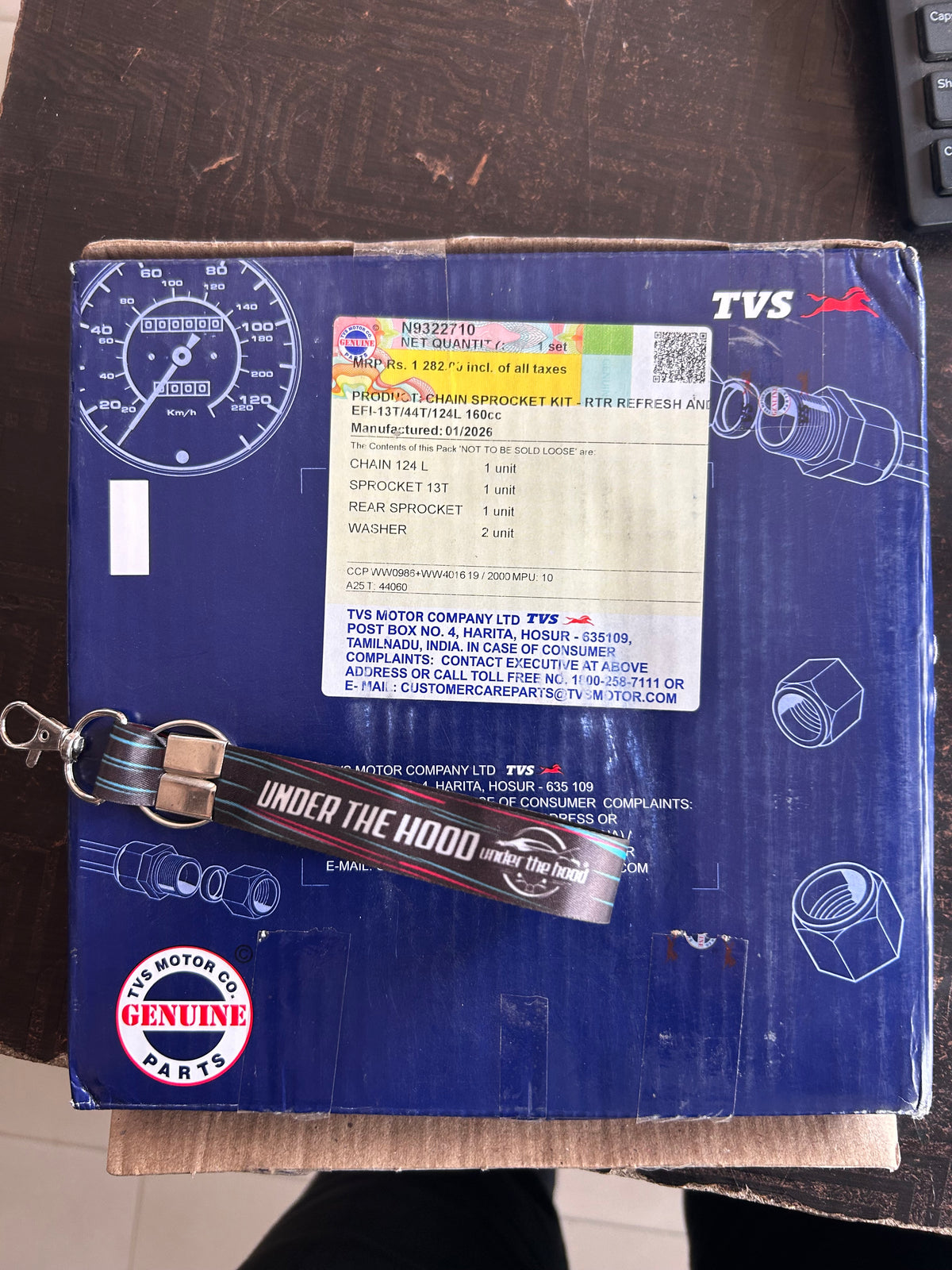

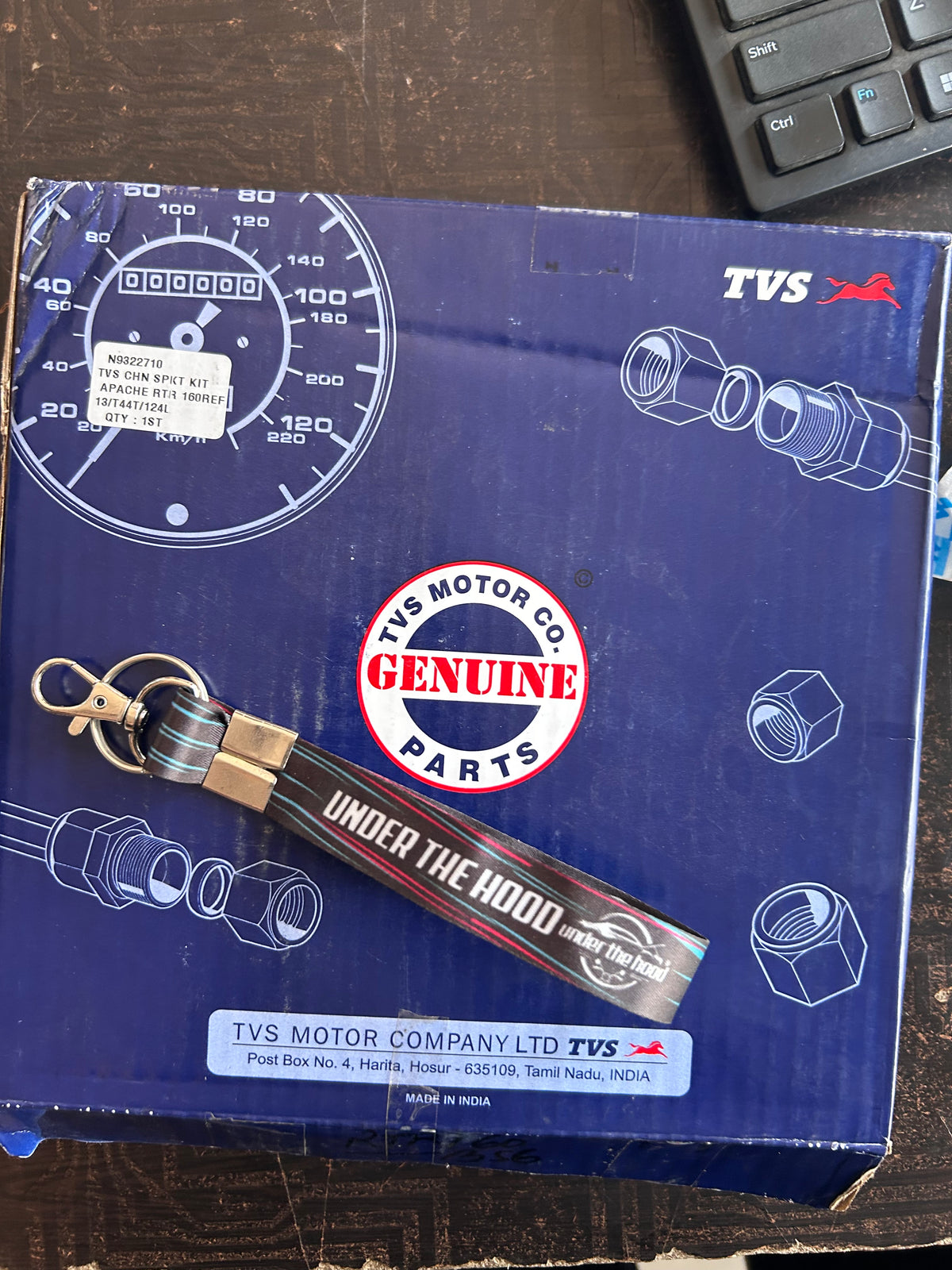

What You Receive

1 × TVS Genuine Chain & Sprocket Kit – N9322710 for the verified Apache RTR 160 2V application.

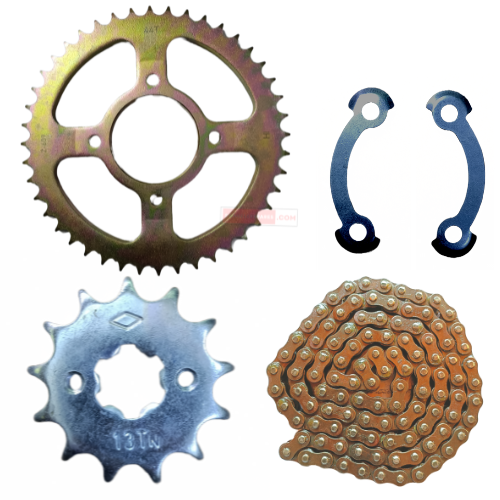

The verified catalogue kit consists of the 124-link drive chain, 13T front sprocket, 44T rear sprocket and two rear-sprocket washers. Packaging and individual component sub-part numbers can change with TVS catalogue revisions while the complete service-kit number remains N9322710.

Other parts such as rear sprocket nuts/bolts, front sprocket retaining plate, front sprocket screws, chain adjusters, rear axle, sprocket carrier, cush rubbers, wheel bearings and unrelated transmission parts are not assumed to be included unless physically packed in the supplied TVS kit.

Installation & Inspection Guidance

Chain-and-sprocket replacement is a safety-critical drivetrain service. Correct chain tension, sprocket fastening and rear-wheel alignment are essential.

• Inspect the output-shaft splines before installing the new front sprocket.
• Inspect the front sprocket retaining plate / hardware and replace damaged pieces as required.
• Inspect the rear sprocket carrier, mounting bolts/nuts and cush-drive rubbers.
• Check rear-wheel bearings and sprocket-carrier bearing condition while the wheel is removed.
• Set rear-wheel alignment correctly on both chain adjusters.
• Set drive-chain slack according to the owner's/service manual applicable to the exact RTR 160 2V version.
• Tighten axle, sprocket and retaining hardware to the correct TVS torque specifications.
• Lubricate the drive chain with a suitable motorcycle chain lubricant.
• Recheck chain slack after initial use because a newly fitted final-drive set can settle during bedding-in.
• If you are unsure about installation, have the kit fitted by a qualified motorcycle technician.

O-Ring / Sealed-Chain Note

TVS's current official parts-store listing names N9322710 as the RTR160 13/44/124L “O RING” chain and sprocket kit, and older official transmission catalogue material also identifies the associated 124-link RTR 160 drive chain as an O-ring chain. However, because component-level chain numbers have changed across catalogue generations, buyers should use N9322710 as the primary kit reference and not assume that every old sub-part number or packaging label will be identical.

Part-Number Confusion to Avoid

Some third-party databases incorrectly attach unrelated descriptions to N9322710. The stronger evidence is consistent: TVS's own official parts store, multiple TVS parts catalogues and independent genuine-parts references identify N9322710 as the Apache RTR 160 chain & sprocket kit.

Always prioritize the complete TVS kit number, motorcycle generation and tooth/link specification rather than a single conflicting marketplace description.

Frequently Asked Questions

Q. What is TVS part number N9322710?
It is the genuine TVS chain and sprocket kit for the applicable Apache RTR 160 2V drivetrain, specified as 13T front, 44T rear and 124-link chain.

Q. What is included in N9322710?
The 2022 TVS kit-content catalogue lists a 124-link chain, 13T front sprocket, 44T rear sprocket and two rear-sprocket washers.

Q. Is the chain 124 links?
Yes. TVS catalogues consistently identify N9322710 as a 124-link chain-and-sprocket kit.

Q. What are the sprocket sizes?
The verified specification is 13 teeth front and 44 teeth rear.

Q. Is N9322710 an O-ring chain kit?
TVS's current official parts store describes N9322710 as a 13/44/124L O-ring kit, and older official catalogue data also identifies the corresponding 124-link RTR 160 chain as O-ring type. Component references have changed over time, so the complete kit number remains the safest identifier.

Q. Will N9322710 fit Apache RTR 160 4V?
No. Do not order N9322710 for the RTR 160 4V. The 4V motorcycle uses a different chain-and-sprocket kit family and chain specification.

Q. Will it fit Apache RTR 160 2V BS6?
Later RTR 160 2V catalogue material continues to list N9322710 with the 13/44/124L specification. Verify the exact chassis/required kit number if the motorcycle has previously been modified.

Q. Does it fit Apache RTR 160 ABS?
A 2023 Apache RTR 160 2V ABS parts catalogue lists N9322710 directly in the transmission assembly, supporting the application.

Q. Will it fit Apache RTR 180?
No. The RTR 180 uses a different chain-and-sprocket kit specification, including a different front/rear tooth count and chain length in the applicable catalogue generation.

Q. Why do some catalogues show N9112610 while another shows N9111770 for the chain?
TVS revised the component-level chain reference across catalogue generations. This is why the complete kit number N9322710 is the preferred ordering reference when the motorcycle calls for this kit.

Q. Should I change only the chain if the sprockets are worn?
A badly worn chain and sprockets should generally be assessed as a matched wear set. Installing one new component against severely worn mating components can reduce service life. Have the complete final drive inspected before deciding what to replace.
