TVS Genuine Center Stand Return Spring – N3120860

Replace a stretched, weakened, broken or missing centre-stand return spring with the genuine TVS component supplied under part number N3120860. TVS catalogues consistently identify N3120860 as SPRING CENTER STAND across a wide range of TVS motorcycles.

This is the part buyers commonly search for as a TVS center stand spring, centre stand return spring, main stand spring, double stand spring, center stand tension spring, stand return spring or genuine TVS main-stand spring.

Product Details

• Brand: TVS Motor Company
• Part Number: N3120860
• OEM Description: SPRING CENTER STAND
• Common Buyer Names: Centre stand spring, center stand return spring, main stand spring, double stand spring, stand tension spring
• System: Centre stand / main stand assembly
• Function: Returns and retains the centre stand in its intended raised position when the motorcycle is taken off the stand
• Quantity: 1 centre-stand spring
• Condition: Genuine TVS replacement spare part
• HSN Reference: 73201011 in TVS Indian price-list data

Verified Current / Recent Applications

Verified Legacy / Additional TVS Applications

Why One Spring Fits Several TVS Models

N3120860 is a long-running TVS service part used across several motorcycle platforms. TVS has retained the same centre-stand spring number even when the centre stand itself, prop stand, footrest bracket or frame components differ between motorcycles.

This means:

• The presence of N3120860 in multiple catalogues is intentional and well documented.
• The complete centre stand does not necessarily interchange between those models.
• The centre-stand mounting bolt and spacer may be shared in some applications but not every surrounding component is universal.
• Always order surrounding parts by the exact motorcycle catalogue rather than assuming the whole stand assembly is shared just because the spring is.

Center Stand Spring vs Side Stand Spring

Do not substitute a side-stand spring for N3120860. Spring length, hook orientation, wire diameter and working tension can be different even when the parts look similar.

How the Center Stand Spring Works

The centre-stand spring is held under tension between the stand assembly and the frame/stand mounting area. When the motorcycle is pushed forward off the centre stand, stored spring tension pulls the stand upward and helps retain it against its stopper or cushion while riding.

• Returns the centre stand after the motorcycle is taken off the stand.
• Helps keep the stand raised during normal riding.
• Reduces the chance of the centre stand hanging down because of weak spring tension.
• Maintains the designed relationship between the stand and its stopper/cushion.

Signs the Center Stand Spring May Need Replacement

• Centre stand does not return fully upward after the motorcycle is rolled off it.
• Stand hangs lower than normal while riding.
• Spring is visibly stretched or permanently elongated.
• One of the spring hooks is bent, damaged or cracked.
• Spring is heavily corroded.
• Spring has broken or gone missing during centre-stand repair.
• Stand rattles because it is not being held firmly against its normal resting point.

Do Not Diagnose Every Stand Problem as a Spring Failure

A weak or broken spring can cause poor stand return, but the spring is only one part of the system. If a new spring does not restore correct operation, inspect the full stand assembly.

Possible additional causes include:

• Bent centre stand
• Dry, seized or corroded centre-stand pivot
• Damaged centre-stand spacer
• Worn pivot bolt
• Incorrectly tightened pivot hardware
• Damaged stand stopper/cushion
• Frame-side mounting damage after an impact
• Incorrect previous spring or makeshift repair

Common Related Parts

Several TVS catalogues place N3120860 alongside the following common stand-system components. The exact stand assembly itself can vary by model.

These related parts are listed for identification only. They are not included with N3120860 unless physically supplied in the package.

Different Models Use Different Center Stands

Although N3120860 is reused widely, TVS uses different complete centre-stand numbers depending on the motorcycle. Examples documented in the catalogues include:

• N9127220 – Apache RTR 160 4V centre stand on applicable generations
• N9124730 – Apache RTR 160 2V / RTR 180 centre stand on applicable generations
• N9121890 – Raider 125 centre stand in applicable catalogue
• N3124430 – Victor 110 centre stand
• N8120930 – TVS Sport centre stand in applicable catalogue

This proves why the spring can be common while the stand itself is not. Do not order a complete stand using the spring's compatibility list.

Apache RTR 160 4V – Latest Catalogue Check

A later Apache RTR 160 4V parts catalogue covering Ride Mode / OBD1 & OBD2 continues to list N3120860 as the centre-stand spring. This is important because it confirms the part number is not limited only to early carburettor-era RTR 160 4V motorcycles.

Even so, if a future/latest motorcycle has undergone a frame/stand revision after the catalogue generation verified here, use a VIN/chassis-based TVS lookup before installation.

Raider 125 – OBD-II Check

The Raider OBD-II parts catalogue lists N3120860 – SPRING CENTER STAND directly alongside N9121890 centre stand, N3121540 spacer and N8200050 centre-stand bolt. This supports Raider fitment beyond the earliest launch version.

Radeon – 2025 Catalogue Check

The 2025 TVS Radeon parts catalogue still lists N3120860 in the frame assembly, supporting current/recent Radeon 110 compatibility including the OBD-IIB catalogue family shown in that document.

Apache RTR 160 2V / RTR 180

TVS's official Apache parts catalogue lists N3120860 across multiple Apache 160/180 configurations. A 2023 Apache RTR 160 2V ABS catalogue also retains N3120860 in the centre-stand assembly, while RTR 180 and RTR 180 ABS/Refresh catalogues list the same spring.

What You Receive

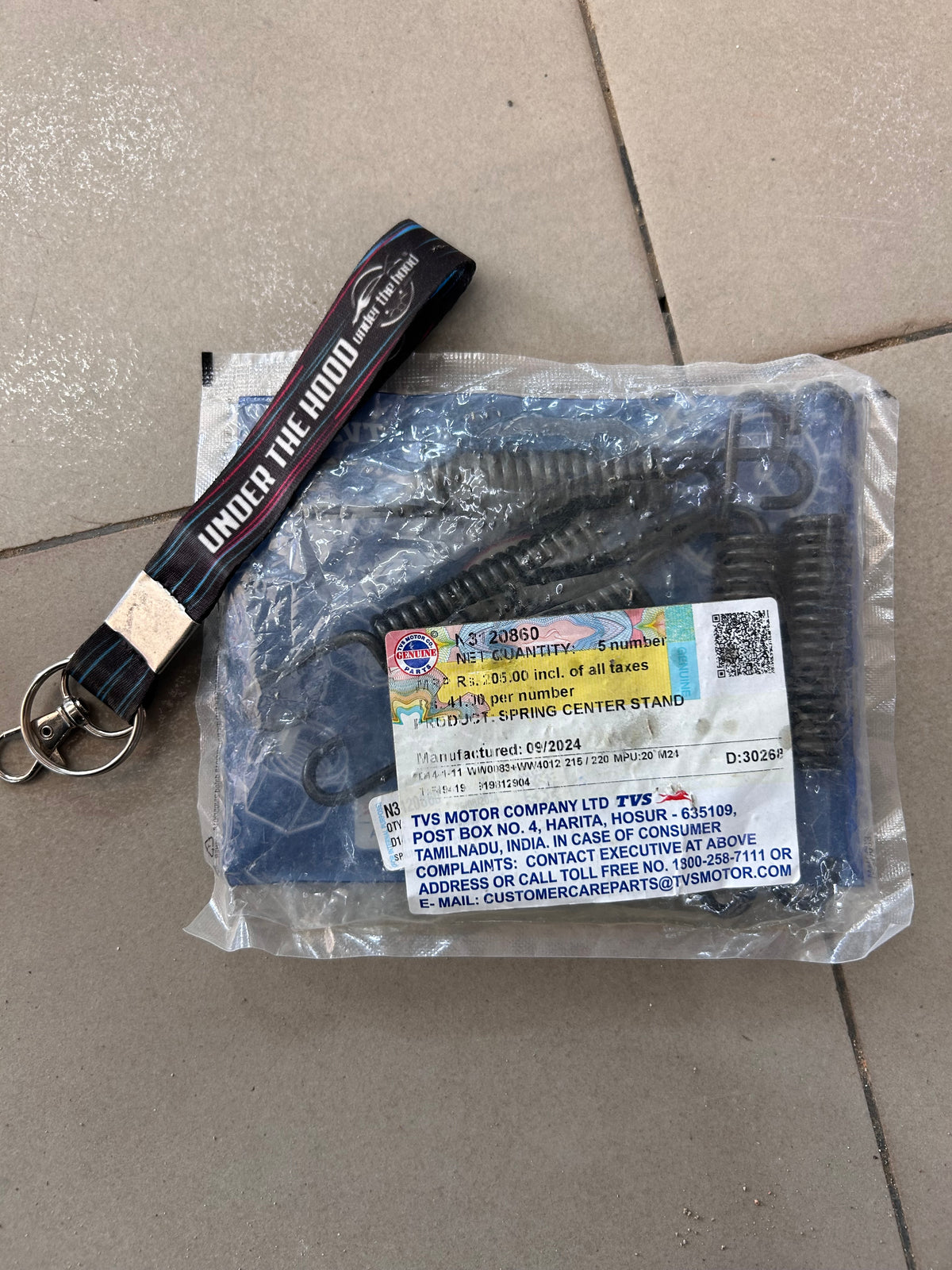

1 × TVS Genuine Center Stand Spring – Part No. N3120860.

The centre stand, side stand, centre-stand bolt, spacer, washer, nut, stopper/cushion, footrest assembly and any installation tools are not included unless physically packaged with the spring.

Installation Guidance

Centre-stand springs are installed under substantial tension. Incorrect removal or installation can cause the spring or tool to release suddenly.

• Park and support the motorcycle securely before beginning work.
• Do not rely on the centre stand being repaired as the motorcycle's only support.
• Allow hot engine/exhaust components to cool before working around the stand area.
• Inspect both spring mounting points before installing the new spring.
• Check the stand pivot for free movement before blaming the old spring alone.
• Use a proper spring-pulling tool or appropriate workshop technique.
• Keep fingers, eyes and body clear of the spring's possible release path.
• Wear eye protection when installing a tension spring.
• Confirm both spring hooks are fully seated in their intended mounting points.
• After installation, operate the stand repeatedly and verify complete return.
• Check that the raised stand does not contact the chain, wheel, exhaust or other components.

After Installation – Functional Check

Before riding, verify the following:

• The centre stand moves freely on its pivot.
• The spring pulls the stand fully upward.
• The stand remains securely against its normal raised stop.
• There is no abnormal rattling or partial deployment.
• The spring hooks remain properly seated.
• The pivot bolt, spacer, nut and washer are secure.

Rust / Corrosion Note

A stand spring operates close to road water, mud and debris. Surface corrosion can eventually weaken spring wire or the hook area. If a heavily corroded spring is already stretched, pitted or damaged, replacement is preferable to trying to reshape or repair it.

Do Not Stretch or Modify the New Spring

The spring's length, hook geometry and tension are designed for the intended stand system. Do not permanently stretch, cut, heat or reshape the spring to make it fit an incorrect application. If N3120860 does not fit naturally between the intended mounting points, recheck the motorcycle, stand assembly and required part number.

Frequently Asked Questions

Q. What is TVS part number N3120860?
N3120860 is a genuine TVS centre-stand / main-stand return spring used across multiple verified TVS motorcycle applications.

Q. Is N3120860 a side-stand spring?
No. It is specifically catalogued as SPRING CENTER STAND. Side/prop-stand springs use separate part numbers such as N5121610, N8121890 or ND120360 depending on the motorcycle.

Q. Does N3120860 fit Apache RTR 160 4V?
Yes. It is listed in carburettor, FI, BSVI and later Ride Mode / OBD1 / OBD2 RTR 160 4V catalogues.

Q. Does it fit Apache RTR 160 2V?
Yes. A 2023 RTR 160 2V ABS parts catalogue lists N3120860 directly in the centre-stand assembly, and older Apache 160 catalogues show the same part.

Q. Does it fit Apache RTR 180?
Yes. TVS Apache RTR 180 and RTR 180 ABS/Refresh catalogue applications list N3120860 as the centre-stand spring.

Q. Does it fit Raider 125?
Yes. Raider Drum/Disc and OBD-II catalogue data lists N3120860 directly as the centre-stand spring.

Q. Does it fit TVS Radeon?
Yes. The 2025 Radeon catalogue lists N3120860 in the frame/centre-stand assembly.

Q. Does it fit TVS Sport?
TVS Sport parts-catalogue data lists N3120860 as the centre-stand spring in the centre-stand and footrest assembly.

Q. Does it fit Victor 110?
Yes. Victor 110 BS4 Drum/Disc catalogue data lists N3120860 directly as the centre-stand spring.

Q. Does it fit Stryker 125?
Yes. The Stryker 125 parts catalogue lists N3120860 as SPRING CENTER STAND.

Q. Does it fit TVS MAX?
TVS's official online parts store lists N3120860 as the MAX centre-stand spring.

Q. Is the complete centre stand included?
No. This listing is for one spring only. The complete stand uses a different part number that varies by motorcycle.

Q. My center stand is not returning even after changing the spring. What should I check?
Inspect the centre-stand pivot, spacer, bolt, mounting area and stand itself for bending, seizure or corrosion. A new spring cannot compensate for a seized or damaged pivot assembly.

Q. Can I use any similar-looking spring?
No. Spring length, hook orientation, wire diameter and tension all matter. A visually similar spring may not return or retain the stand correctly.

Q. What was the listed Indian MRP?
A TVS Indian price list dated May 2024 showed N3120860 at ₹41 MRP. Because spare-part MRPs can change, the current package/TVS price list should be treated as controlling rather than an older published figure.

Buyer Search Reference

Common buyer searches include TVS center stand spring, TVS centre stand spring, main stand spring TVS, double stand spring, Apache RTR 160 center stand spring, Apache 160 4V center stand spring, RTR 180 center stand spring, Raider 125 center stand spring, Radeon center stand spring, TVS Sport center stand spring, Victor 110 center stand spring, N3120860, N 3120860, genuine TVS stand spring and TVS main stand return spring.

Before You Order

Confirm that the required TVS part number is N3120860 and that you need the centre-stand spring, not the side/prop-stand spring. Although this number is genuinely shared across many TVS models, always use the motorcycle's VIN/chassis-based catalogue if the stand assembly has been modified, replaced, or belongs to a later production revision not covered by the catalogue evidence above.
