UNO Minda 815226 Performaxx D70/K70 Dual Horn Set for TVS Apache – 12V 70mm High + Low Tone, Pair of 2

UNO Minda 815226 Performaxx D70 / K70 Dual Horn Set for TVS Apache – Pair of 2

UNO Minda 815226 is a genuine 12V dual-tone 70 mm disc horn set for the TVS Apache motorcycle family. The current Under The Hood stock is packed as PERFOMAXX D70 HORN, with the box label reading “DISC HORN SET 12V D70 APACH DUAL”.

UNO Minda's current official online listing uses the name K70 for the same part number 815226. For that reason, this page is deliberately searchable under D70 horn, K70 horn, Apache dual horn, Apache horn set, high-low horn pair, 12V bike horn set and 815226.

Exact Product Details

D70 vs K70 – Why Both Names Are Used

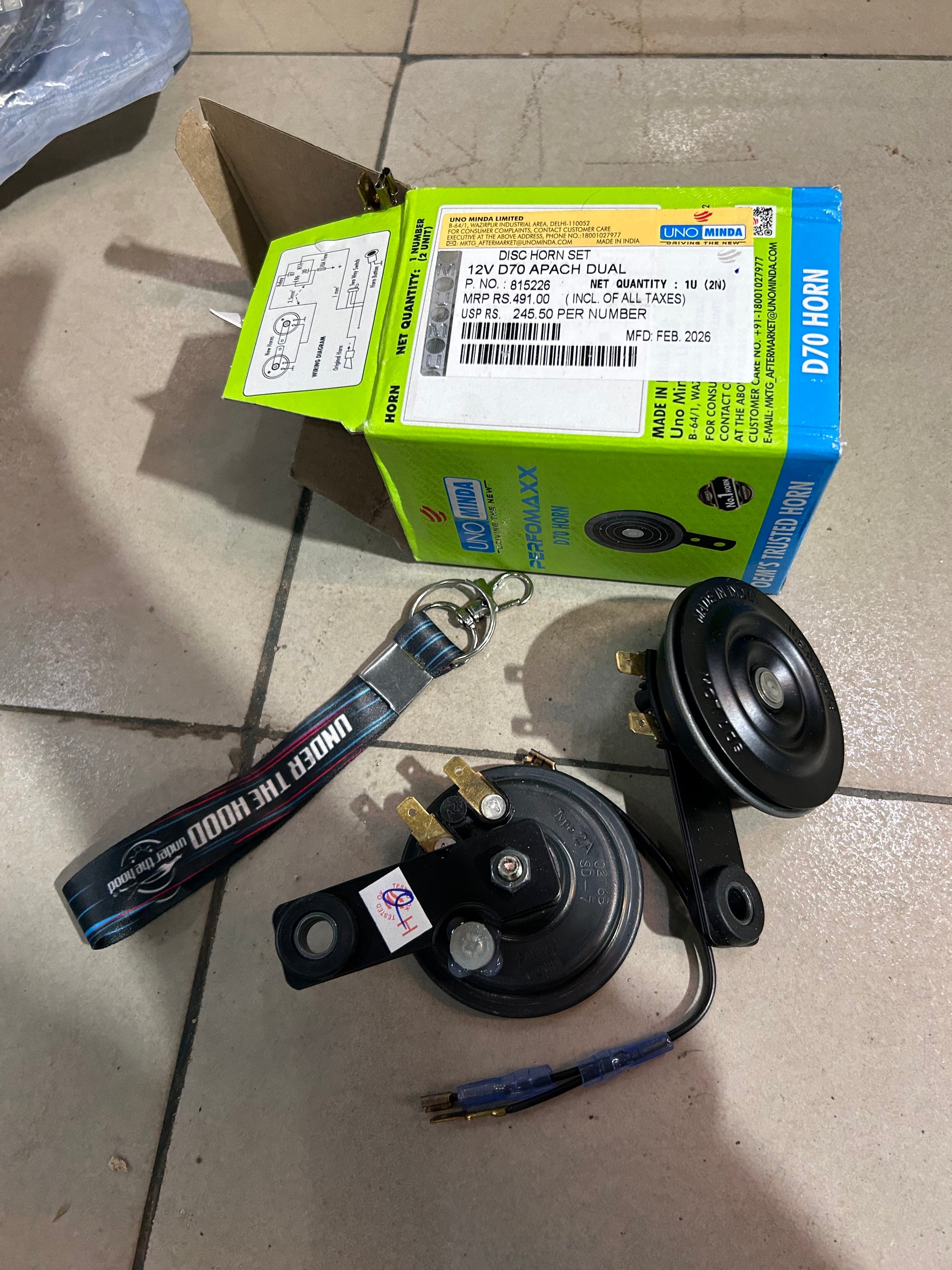

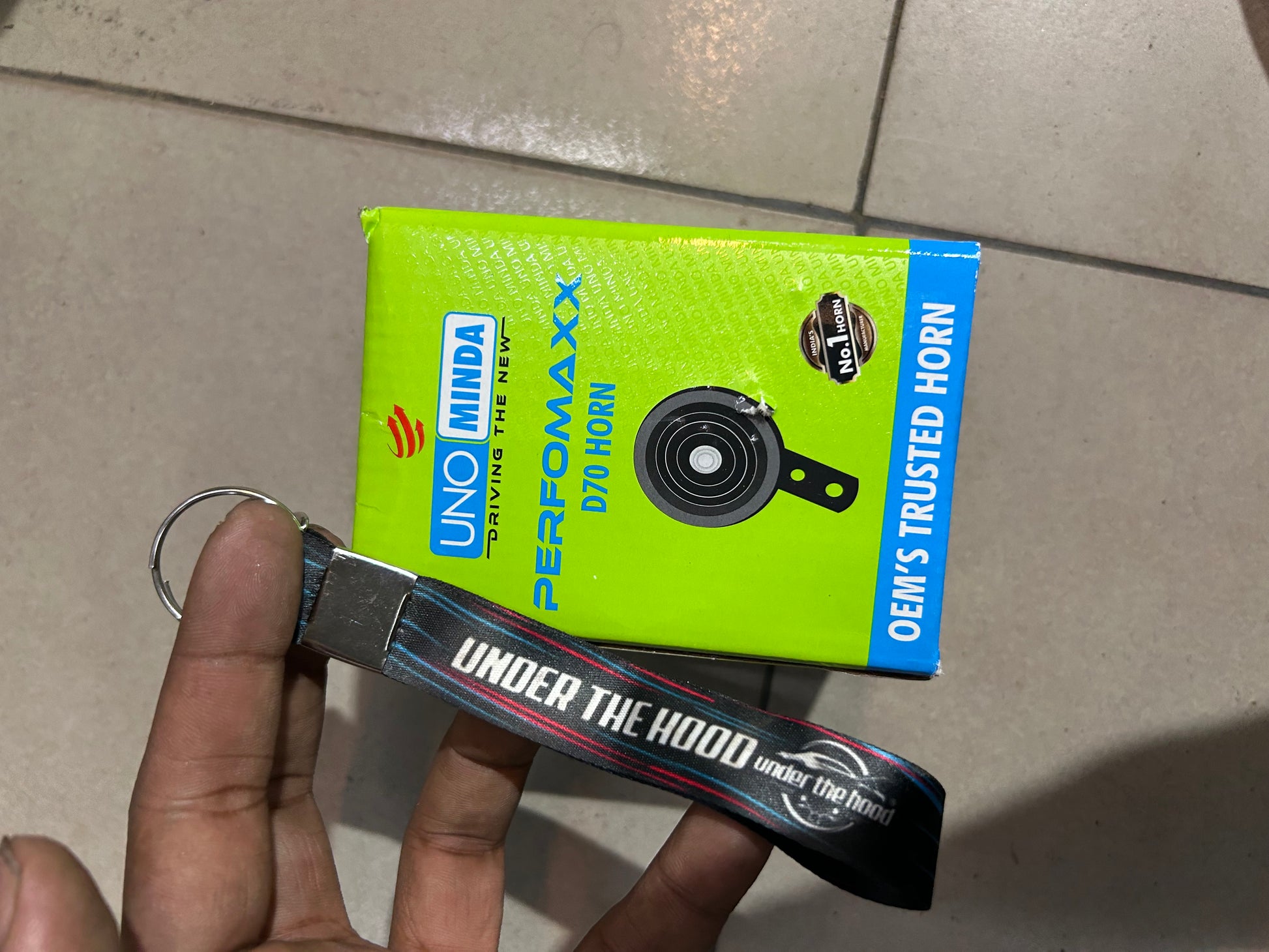

The actual stock photographed by Under The Hood is branded Performaxx D70 and the physical label says D70 APACH DUAL. UNO Minda's current official e-commerce page, however, lists the same part number 815226 as a K70 horn set.

This listing therefore uses both names for search visibility, but the safest way to identify the product is:

UNO Minda Part Number 815226

Designed for TVS Apache

UNO Minda's current official product page specifically names TVS Apache for 815226. Older UNO Minda horn catalogues also map 815226 – 12V K70 Horn Set to TVS APCH.

Buyers commonly search this product using terms such as:

• TVS Apache horn
• Apache dual horn
• Apache horn set
• Apache RTR horn
• Apache RTR 160 horn
• Apache RTR 180 horn
• Apache RTR 200 horn
• Apache high low horn
• Minda Apache horn
• D70 Apache horn
• K70 Apache horn

Generation warning: those RTR model terms are included because buyers use them heavily in search. UNO Minda's current official listing confirms the Apache family but does not separately certify every RTR displacement/year on that page. Match the old horn/bracket/wiring if your exact Apache generation is uncertain.

High + Low Tone – What the Pair Does

The set contains two different horn tones. UNO Minda currently specifies approximately 360 Hz and 440 Hz. When both horns operate together, the combination produces the familiar fuller dual-tone sound rather than one single pitch.

UNO Minda currently specifies sound output at more than 105 dB. Actual perceived loudness on the motorcycle can vary with battery voltage, mounting position, wiring resistance and whether both horns receive proper power.

70 mm Compact Disc Horn Design

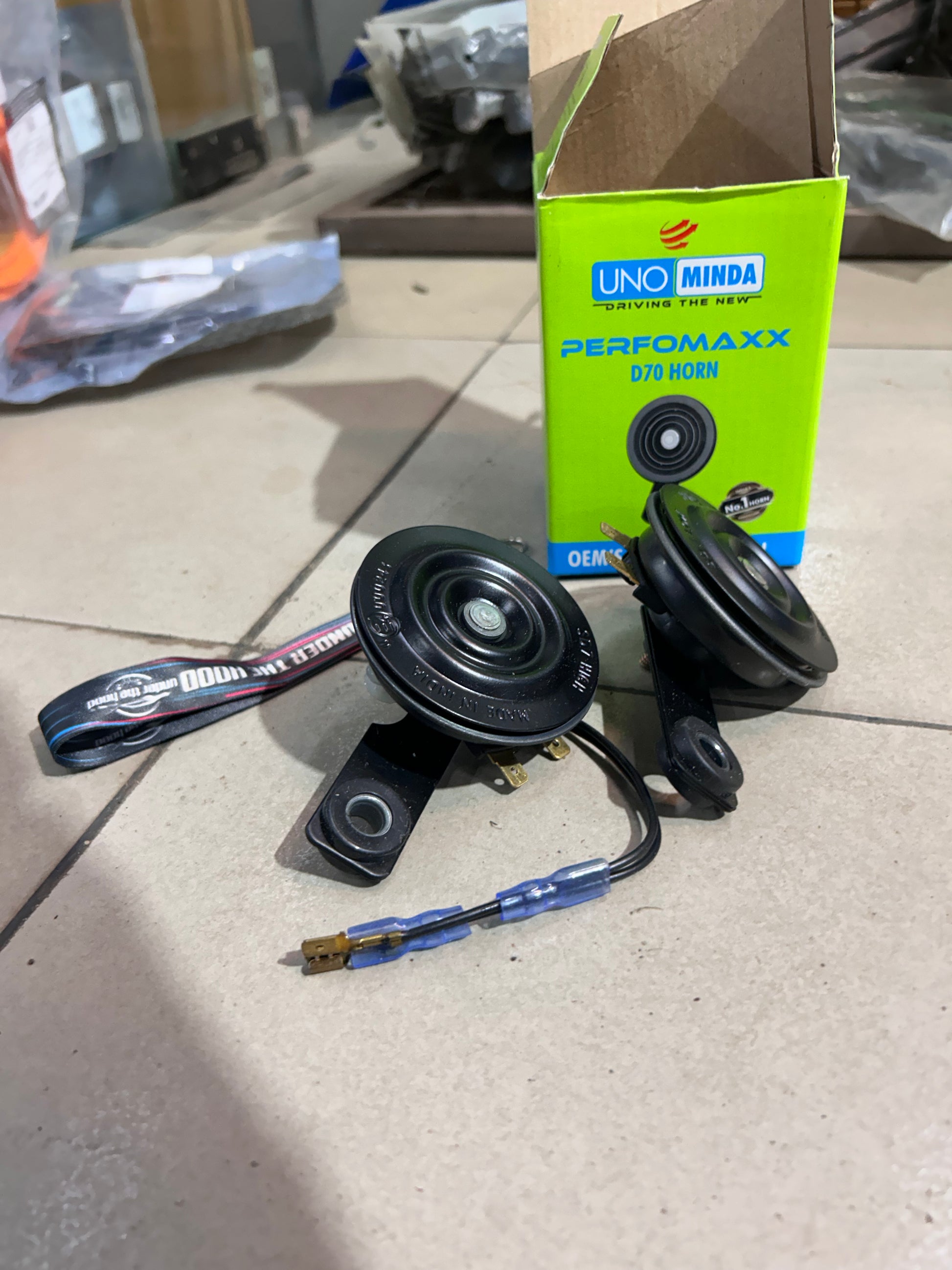

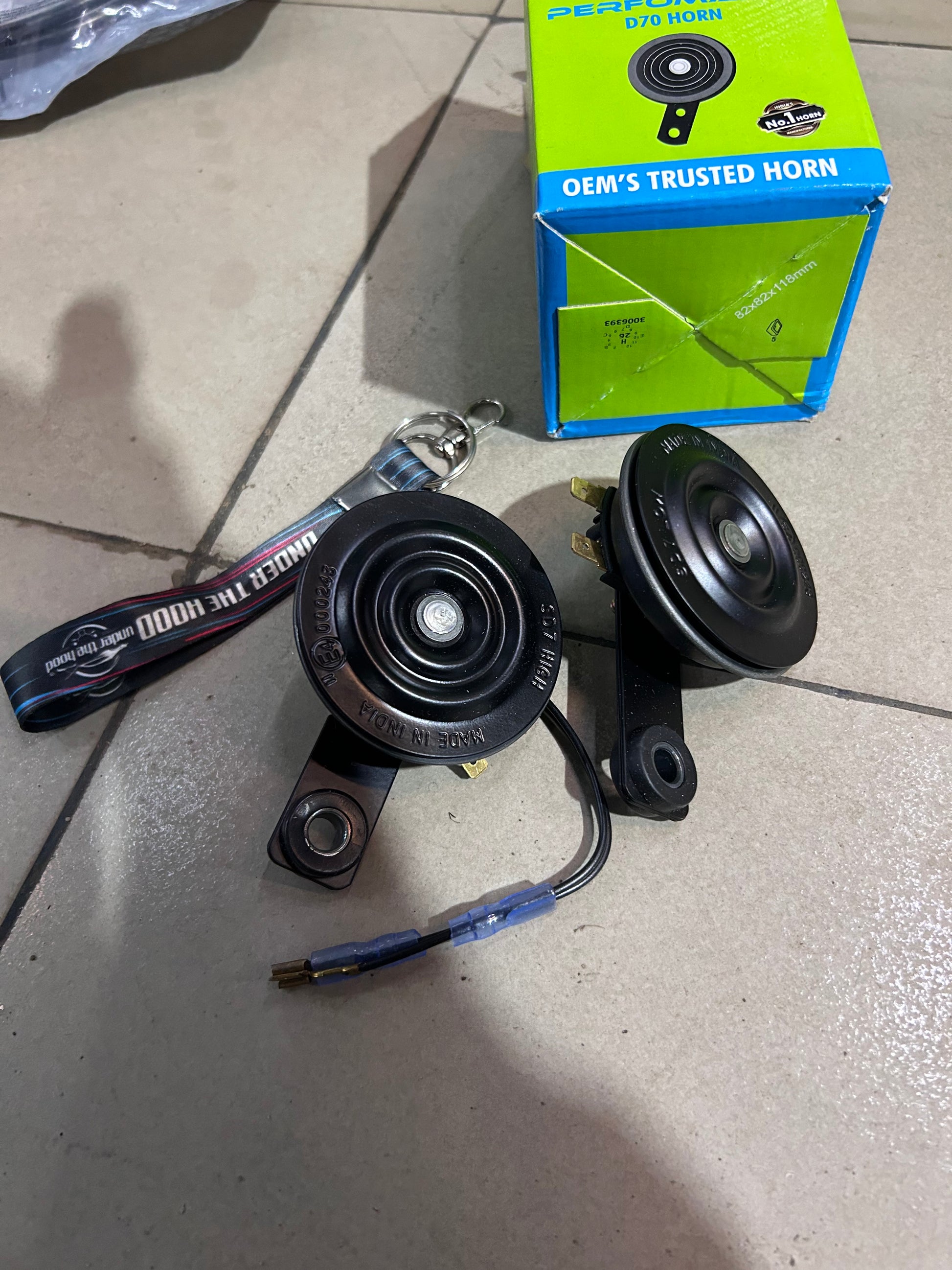

The 70 mm diameter makes the D70/K70 series more compact than larger 90–95 mm automotive-style disc horns. The current Under The Hood stock photographs show both black disc horns supplied with mounting brackets fitted to the horn units.

Compact size does not guarantee fitment on every motorcycle. Bracket angle, clearance and connector position still matter.

What Is Included in the Current Set?

The physical Under The Hood stock confirms:

• 2 × UNO Minda 70 mm black disc horns
• High + low tone pair
• Mounting brackets fitted to the horn units
• A short connected lead / terminal arrangement visible on the supplied set

No separate horn relay is present in the photographed box. Some third-party marketplace pages incorrectly describe 815226 as a “horn with horn relay set”; the physical package supplied by Under The Hood and UNO Minda's current official page identify it as a horn set of 2.

Do I Need an Additional Relay?

Do not add a relay automatically just because this is a dual-horn set. If your Apache has the original compatible horn circuit, the correct installation depends on the factory wiring design.

For custom installations or conversions on another motorcycle, have the electrical load, switch, fuse and wiring checked. If an additional relay is required, use a correctly rated relay and fuse arrangement rather than connecting an upgraded horn load blindly through the handlebar switch.

View UNO Minda 860109 12V Horn Relay – use only where the vehicle wiring design or installer requires a separate relay.

815226 vs D815319 – Apache vs Pulsar

Both can appear as compact 70 mm dual-horn sets, so do not choose only from horn diameter or black colour. Match the exact part number and bracket/application.

Can It Be Used on Other 12V Motorcycles?

UNO Minda catalogues the K70 family widely across two-wheelers, but 815226 itself is specifically associated with TVS Apache. On another motorcycle, treat it as a custom/adapted installation and check:

• 12V DC electrical system
• Space for two 70 mm horns
• Bracket alignment
• Connector/wiring compatibility
• Steering/fork/radiator clearance
• Fuse, switch and relay capacity

This listing does not promise plug-and-play fitment on every bike.

Common Reasons to Replace the Horn Set

• One of the two horns has stopped working
• Original horn tone has become weak or distorted
• Corrosion / water damage
• Damaged bracket after an accident
• Intermittent horn operation after the horn itself has been diagnosed
• Replacing a mismatched pair with a proper high + low set

A weak horn can also be caused by low battery voltage, poor ground, corroded terminals, switch resistance, relay/fuse issues or damaged wiring. Diagnose the circuit before replacing good horns.

Installation Notes

• Switch off ignition before electrical work.
• Disconnect the battery where the service procedure requires it.
• Compare the existing horn bracket positions before removal.
• Keep both horn bodies clear of forks, mudguard, radiator and steering movement.
• Use clean and tight electrical terminals.
• Do not force an incompatible connector.
• If fitting on a modified bike, confirm current load and circuit protection.
• Test both high and low tones after installation.

What You Will Receive

1 × UNO Minda 815226 Performaxx D70/K70 Dual Horn Set for TVS Apache

• 2 horns total
• 1 high-tone horn
• 1 low-tone horn

A separate relay, fuse or custom wiring harness is not claimed as included.

Buyer FAQs

What is UNO Minda 815226?
It is a genuine UNO Minda 12V 70 mm dual horn set of 2 for TVS Apache.

Is 815226 D70 or K70?
The current physical box in Under The Hood stock says Performaxx D70. UNO Minda's current online page calls part 815226 K70. Use the exact part number 815226 as the definitive identifier.

How many horns are included?
2 horns. The current physical box confirms a complete set of two.

Is it a high + low horn set?
Yes. UNO Minda specifies approximately 360 / 440 Hz.

Is it 12V?
Yes, 12V DC.

What is the diameter?
70 mm.

How loud is it?
UNO Minda's current page specifies >105 dB.

Does it fit TVS Apache?
Yes. TVS Apache is the manufacturer-named application for 815226.

Does it fit Apache RTR 160 / 180 / 200?
These are common market/search applications for the Apache horn family, but UNO Minda's current official page states simply TVS Apache rather than listing every RTR generation individually. Compare the original horn/bracket/wiring for exact-generation confirmation.

Does the box include a relay?
No separate relay is visible or identified in the current Under The Hood package. This is a two-horn set.

What is the MRP of the current stock?
The February-2026 box photographed by Under The Hood shows ₹491 MRP for the complete set.

Why does UNO Minda's website show a higher MRP now?
UNO Minda's current online page reflects a newer price revision. The physical stock being sold here is the February-2026 batch with ₹491 printed MRP, so this listing follows the MRP printed on the actual supplied package.

What warranty does UNO Minda list?
UNO Minda currently states 12 months against manufacturing defects, subject to its warranty conditions.
