UNO Minda TD-2002 12V 30A Dual Headlight Relay with Wire – Headlamp / LED Auxiliary & Fog Light Wiring

UNO Minda TD-2002 Dual Headlight Relay with Wire – 12V / 30A Universal

UNO Minda TD-2002 is a 12V / 30A dual headlight relay supplied with wire for compatible automotive headlamp circuits. UNO Minda currently lists this exact product as “DUAL HEADLIGHT RELAY – WITH WIRE – 12V / 30A” with universal vehicle compatibility.

This is the product buyers and workshops commonly search for as a headlight relay with wire, headlamp relay, dual headlight relay, car light relay, 12V 30A relay for headlight, headlight relay wiring kit or simply Minda TD-2002.

Also Commonly Used for LED Auxiliary / Fog Light Installations

Although UNO Minda officially sells TD-2002 as a dual headlight relay with wire, installers also commonly use this type of 12V 30A wired relay when building compatible aftermarket LED auxiliary light / fog light circuits.

This makes TD-2002 relevant to buyers searching for:

• HJG fog light relay
• HJG auxiliary light relay
• HJG LED light relay with wire
• bike auxiliary light relay
• LED fog light relay
• aux light relay wiring
• 12V 30A relay for LED lights
• dual colour LED fog light relay
• white yellow auxiliary light relay
• two colour fog light wiring relay

What About HJG Dual-Colour / White-Yellow Auxiliary Lights?

Many aftermarket auxiliary lamps are sold in dual-colour versions, commonly with separate white/yellow modes or additional control wires. A relay such as TD-2002 can be used as part of the main power switching circuit when the installation is designed correctly.

Important: the relay itself does not automatically change the light colour. Colour switching depends on the LED lamp's own wiring, controller and/or switch arrangement. If the HJG or other dual-colour lamp has a separate mode/colour wire, that wire must be connected according to the lamp manufacturer's wiring scheme.

So the correct buyer wording is:

“Suitable as a power relay in compatible HJG / aftermarket LED auxiliary-light wiring setups” — not “plug-and-play HJG colour-change relay.”

Why Use a Relay with Auxiliary LED Lights?

In a properly designed auxiliary-light installation, the relay allows the handlebar/dashboard switch to control the lighting circuit without making that small switch carry the full lamp load. The main lighting current is routed through the relay circuit instead.

This is especially relevant when adding a pair of auxiliary lamps, provided the combined current draw remains within the relay and wiring design limits.

Do not assume that “30A relay” means every 30A load is automatically safe. Wire gauge, fuse rating, connector quality, switch logic and the actual current draw of the lamps must all be considered.

Quick Product Details

What Does the TD-2002 Do?

A headlight relay allows the headlamp load to be switched through a dedicated relay circuit rather than making the vehicle's headlight switch itself carry the full lamp current. In a correctly designed and installed circuit, the relay is used as part of the electrical switching arrangement for the headlamps.

TD-2002 is specifically sold by UNO Minda as a dual headlight relay with wire. It should be fitted only where the vehicle's 12V headlamp wiring and electrical load are compatible with this relay assembly.

Why Buyers Search “Headlight Relay Wiring Kit”

Because TD-2002 is supplied with wire, owners and electricians may search this type of product using phrases such as:

• headlight relay with wire
• headlamp relay with wiring
• dual headlight relay wiring kit
• car headlight relay
• 12V headlight relay
• 30A headlight relay
• Minda light relay
• TD-2002 relay
• car headlamp relay kit
• universal headlight relay

Universal – But Not “Fits Every Vehicle Without Checking”

UNO Minda lists TD-2002 as UNIVERSAL. For a buyer, this means it is not tied to one specific car model. It does not mean every 12V vehicle can use it without checking the electrical circuit.

Before ordering, confirm:

• Vehicle uses a 12V electrical system
• Required relay rating matches 30A
• The headlight circuit is suitable for a dual-headlight relay arrangement
• Wiring / connector arrangement suits the vehicle
• Lamp load is within the intended electrical specification
• Installation will be performed according to the vehicle wiring diagram

12V / 30A – Do Not Confuse With Similar Minda Relays

UNO Minda sells several headlight and electrical relays with different ratings and configurations. TD-2002 is the current 12V / 30A dual headlight relay with wire.

For example, UNO Minda also lists separate 24V dual-headlight relays for commercial applications. Therefore, part number and voltage should be checked rather than buying only from appearance.

Current 30A Specification vs Older 30A/40A Listings

You may see some older marketplace titles describing TD-2002 as “30A/40A” or even “12V/40A”. The current UNO Minda product page and current UNO Minda dual-headlight-relay category identify TD-2002 as 12V / 30A.

For this listing, the manufacturer-current specification takes priority:

UNO Minda TD-2002 = 12V / 30A / Dual Headlight Relay / With Wire.

When Might a Headlight Relay Need Attention?

A vehicle electrician may inspect the headlight relay circuit when there are symptoms such as:

• Headlights not switching on correctly
• Intermittent headlamp operation
• Relay clicking but lamps not operating
• Heat-damaged relay / connector
• Corroded or loose wiring
• Previously modified headlight wiring
• A headlamp upgrade requiring the existing wiring arrangement to be checked

These symptoms do not automatically prove that the relay is faulty. Headlight issues can also be caused by bulbs, fuses, switches, grounds, connectors, battery/charging faults or wiring damage.

Before Replacing the Relay

Check the complete circuit, especially if the previous relay or connector has overheated. Replacing only the relay without correcting an overloaded circuit, loose terminal or poor ground can result in repeated failure.

A technician should inspect:

• Battery voltage and charging condition
• Headlight fuse
• Bulb / lamp wattage
• Ground / earth points
• Headlight switch and combination switch
• Relay wiring and connectors
• Signs of melting, corrosion or loose terminals

Installation Guidance

Automotive electrical installation by a competent technician is recommended.

• Switch off ignition before electrical work.
• Disconnect the battery where appropriate.
• Identify the correct feed, trigger, output and ground wiring from the vehicle diagram.
• Do not guess wire function based only on colour.
• Use proper insulated terminals and secure connections.
• Protect wiring from sharp edges, engine/exhaust heat and moving parts.
• Use appropriate circuit protection / fuse arrangement as required by the vehicle design.
• Secure the relay and wiring so they do not vibrate loosely.
• After installation, test low/high-beam or applicable lamp functions according to the vehicle circuit.

What You Will Receive

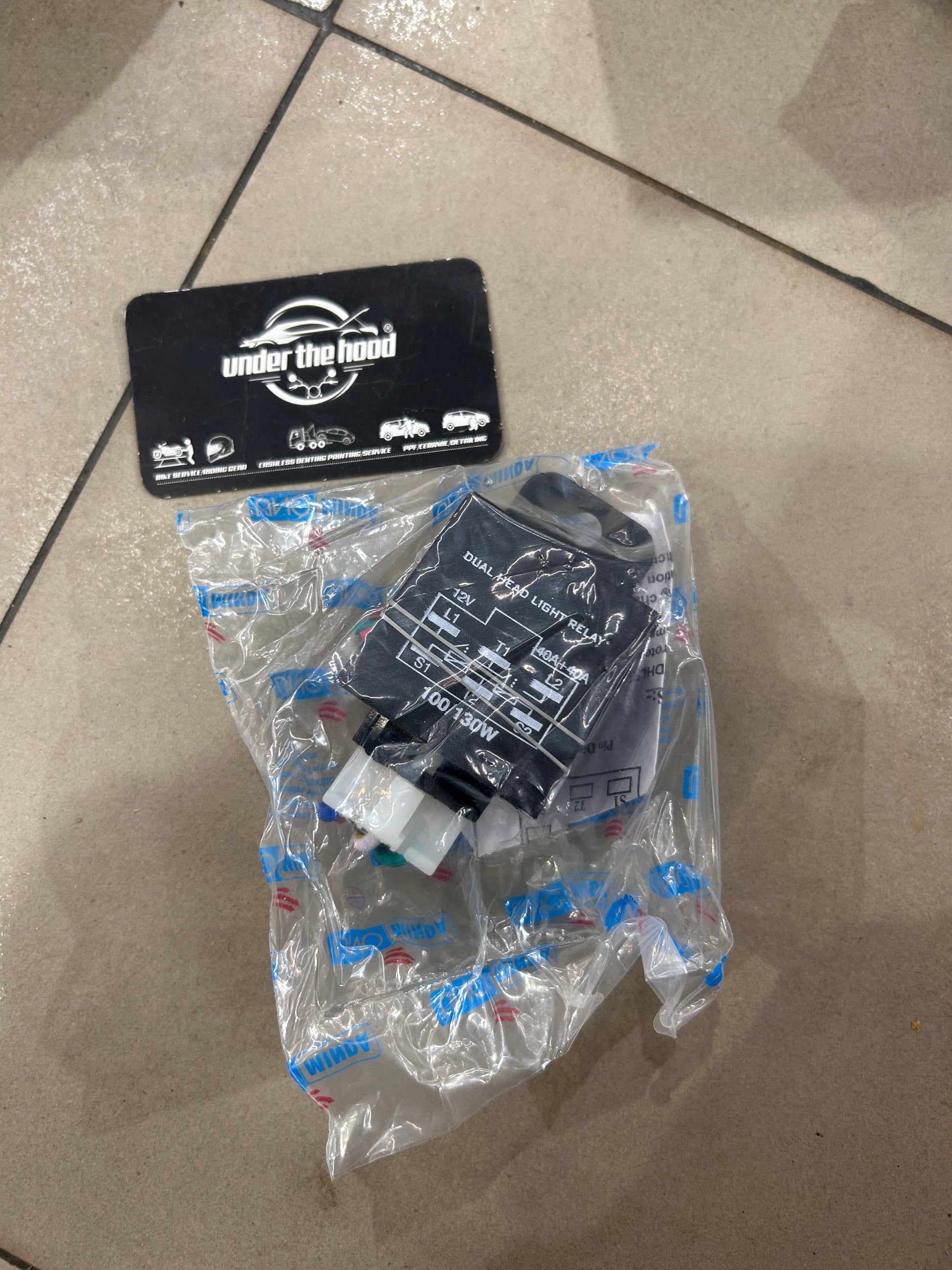

1 × UNO Minda TD-2002 Dual Headlight Relay with Wire – 12V / 30A

This listing does not include headlight bulbs, headlamp assemblies, switches, fuses or unrelated vehicle wiring unless specifically shown as part of the supplied TD-2002 set.

Buyer FAQs

What is UNO Minda TD-2002?
It is UNO Minda's dual headlight relay with wire for 12V / 30A applications.

Is TD-2002 12V?
Yes. UNO Minda's current product listing specifies 12V.

Is TD-2002 30A or 40A?
UNO Minda's current official listing specifies 30A. Some older marketplace listings use 30A/40A or 40A wording, but this page follows the current manufacturer specification.

Does it come with wiring?
Yes. UNO Minda's exact product title states “WITH WIRE.”

Is it universal?
UNO Minda lists the product as UNIVERSAL. The vehicle still needs a compatible 12V headlight circuit and correct wiring arrangement.

Can I use it in any car?
Do not assume automatic plug-and-play fitment. Confirm the vehicle's headlight wiring, electrical load and relay requirement first.

Can I use this for a bike?
UNO Minda currently categorises TD-2002 under the Car segment. This listing therefore does not claim motorcycle fitment. If adapting it to another 12V application, the circuit should be assessed by a qualified electrician.

Is this a horn relay?
No. TD-2002 is specifically sold as a dual headlight relay. UNO Minda sells separate horn-relay products.

Is it a normal loose 4-pin/5-pin relay?
This listing is for the TD-2002 dual headlight relay with wire assembly, not a generic loose automotive cube relay. Order from the exact part number rather than pin count alone.

What is the current MRP?
UNO Minda currently lists an MRP of ₹325.

What is UNO Minda's current online selling price?
UNO Minda currently displays ₹293 inclusive of taxes.

Does it have a warranty?
UNO Minda's current listing states 6 months warranty; the manufacturer PDF specifies warranty against manufacturing defects. Eligibility remains subject to UNO Minda's applicable terms.

Auxiliary Light Buyer FAQs

Can I use TD-2002 with HJG auxiliary lights?
It is commonly suitable as part of the power-relay circuit for compatible 12V aftermarket auxiliary lights, including HJG-type installations, provided the total electrical load and wiring arrangement match. UNO Minda does not specifically certify this product as an HJG accessory.

Can I use it with HJG dual-colour / white-yellow lights?
It can be used for the main power side of a compatible installation. The TD-2002 relay itself does not control white/yellow colour selection. Colour or mode switching depends on the auxiliary lamp's separate control wire, switch or controller.

Can I use it for a pair of LED fog lights?
Potentially yes, when the pair operates on 12V and the combined current draw, fuse, wire gauge and switching arrangement are designed within the relay circuit's limits.

Is this an HJG relay?
No. It is a genuine UNO Minda TD-2002. “HJG relay” is included only as buyer search language because installers may use Minda relays in aftermarket HJG auxiliary-light wiring.

Will this make a single-colour light dual-colour?
No. A relay cannot add a second LED colour to a lamp that does not already support it.

Does it include an auxiliary-light switch?
No dedicated HJG/LED auxiliary switch is claimed as included. This listing is for the TD-2002 relay-with-wire assembly supplied by UNO Minda.
